2.3 Steam flow applications
Procedure
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Fill impulse lines with water.
A
A. Direction of flow
2.4 Mounting brackets

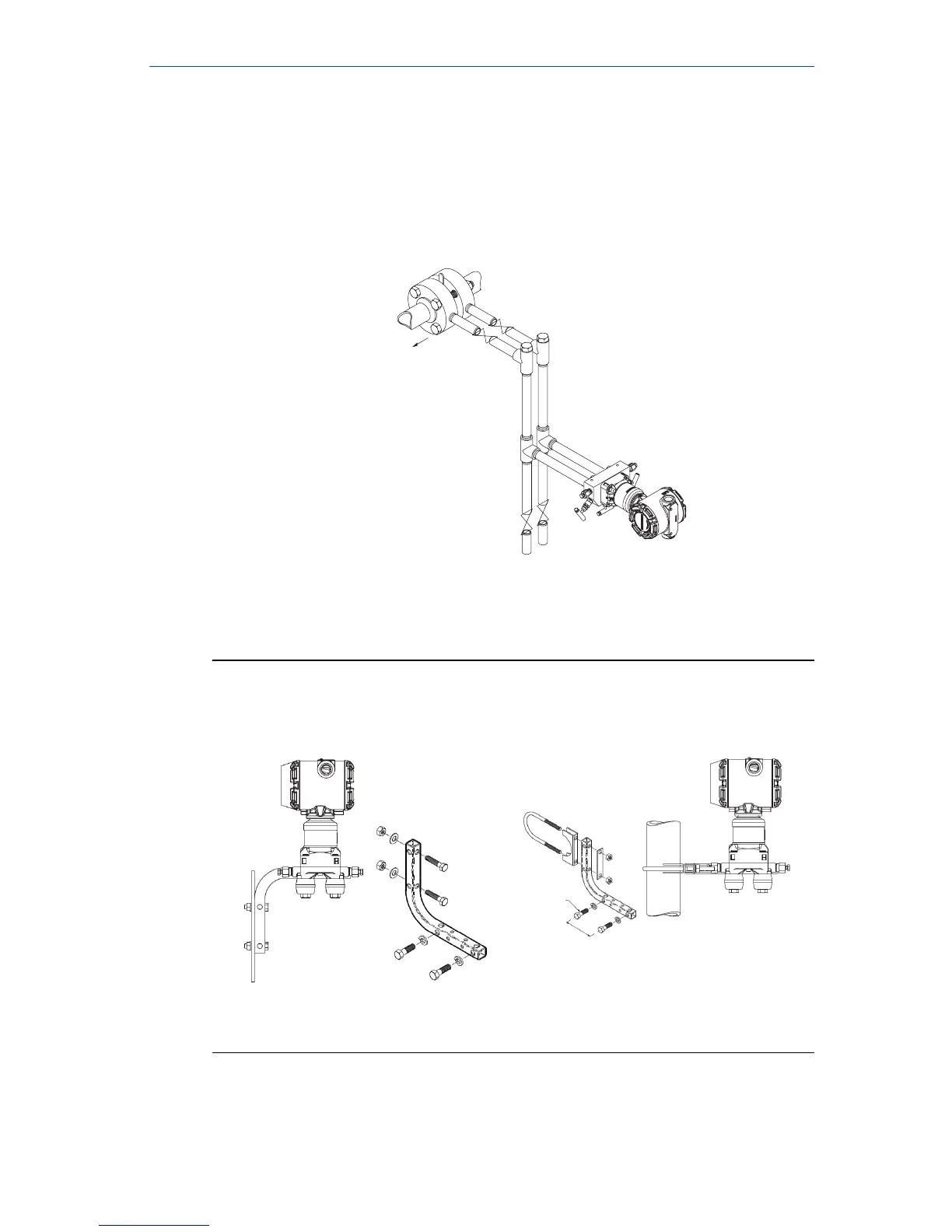

Figure 2-1: Mounting Bracket – Coplanar Flange
Panel mount
Pipe mount
