Service Valve components
Refer to the following figure to see the main components of the Roxar Double Block
Service Valve.

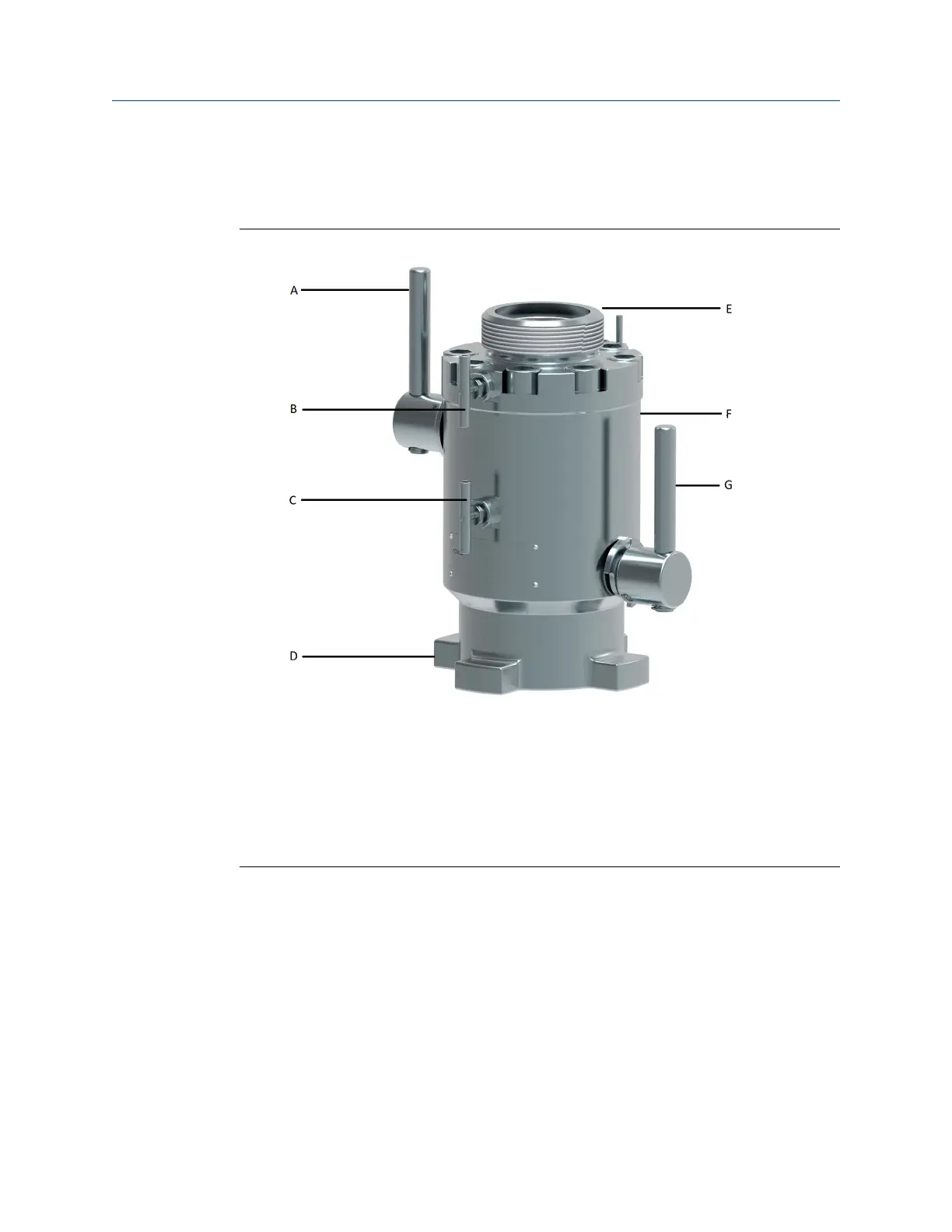

Figure 2-6: Double isolation service valve main components
A. Ball lever l
B. By-pass valve 1
C. By-pass valve 2
D. Main body service valve
E. End section
F. Main body upper section
G. Ball lever 2
