Specifications and dimensions
The Roxar Service Valve can operate on pressurized lines and vessels up to 6,000 psi (420
bar) and fluid temperatures up to 400 °F (204 °C).
The double block isolation version weights 22kg while the single isolation weights 13kg.

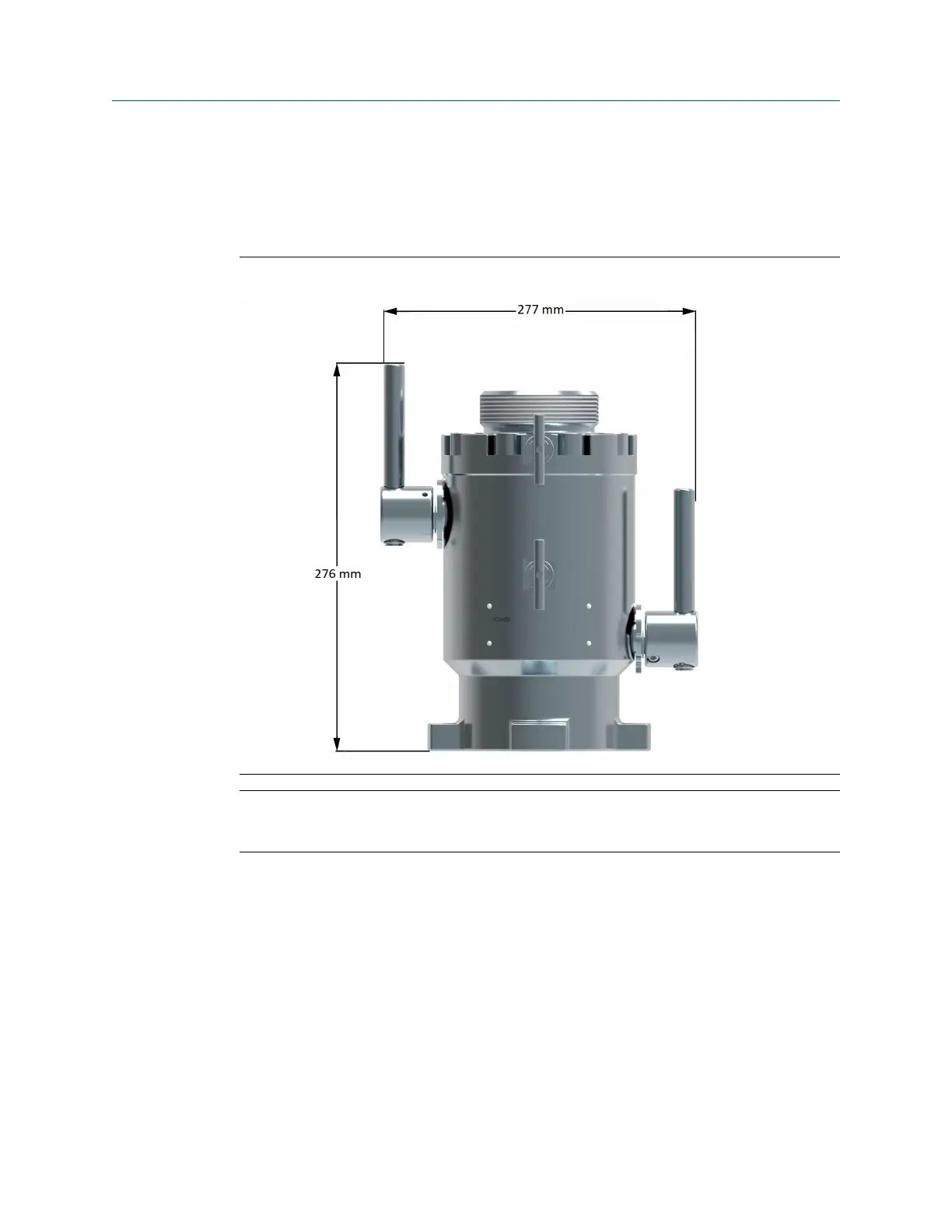

Figure 2-7: Dimensions for the double block and bleed valve
Note
In Figure 2-8, the probe length varies depending on the customer's pipe size and the flow
traveling through the pipe.
User Manual Technical description
ROX000295904 June 2020
www.Emerson.com/Roxar 17
