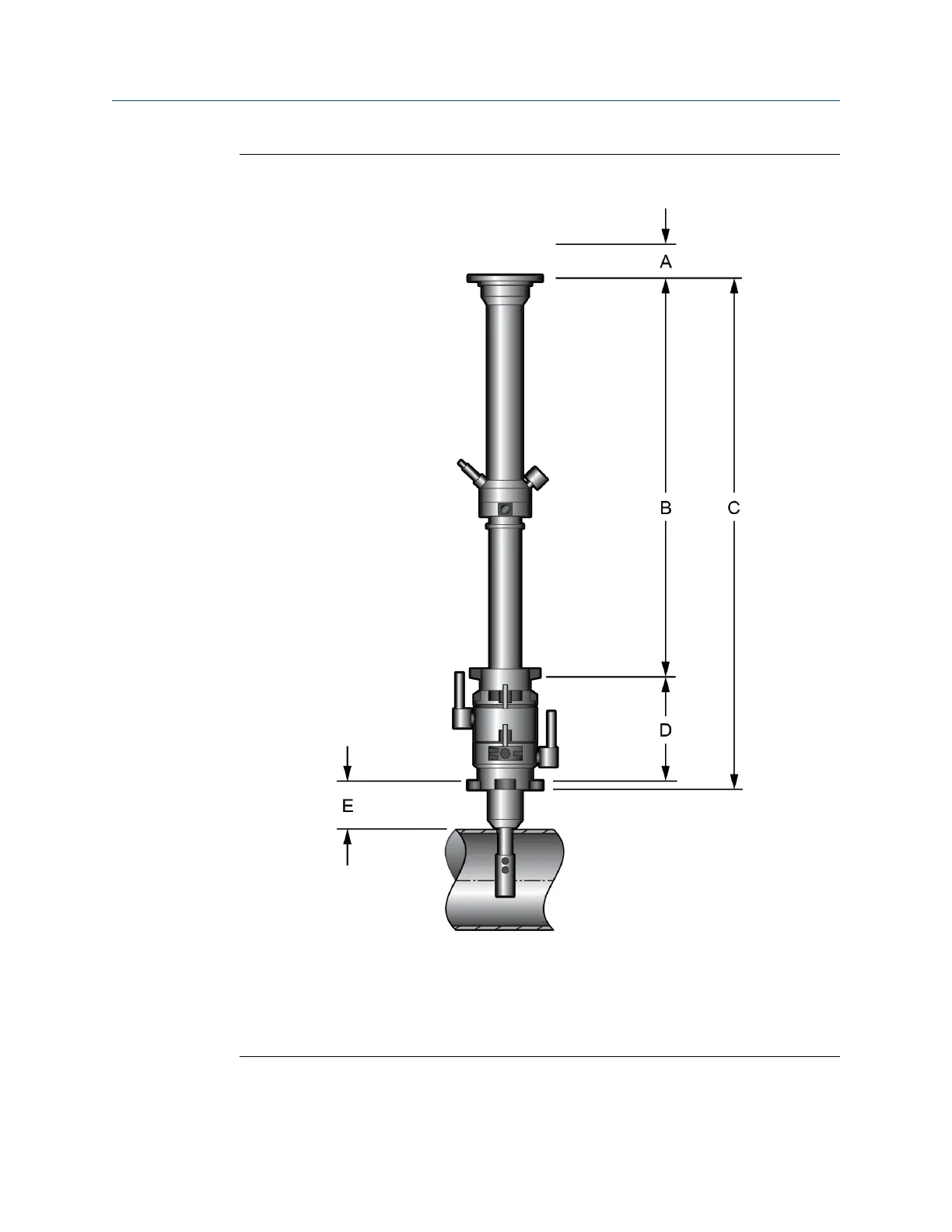

Figure 2-8: Schematic of a double block and bleed valve with the Roxar Mechanical
Retrieval Tool
A. Clearance for mounting: 300 mm
B. Mechanical Retrieval Tool
C. Mechanical Retrieval Tool length, including the service valve
D. Service valve length: 230 mm
E. Mechanical access fitting
