Emerson TESCOM 44-1100 Series Instructions For Use

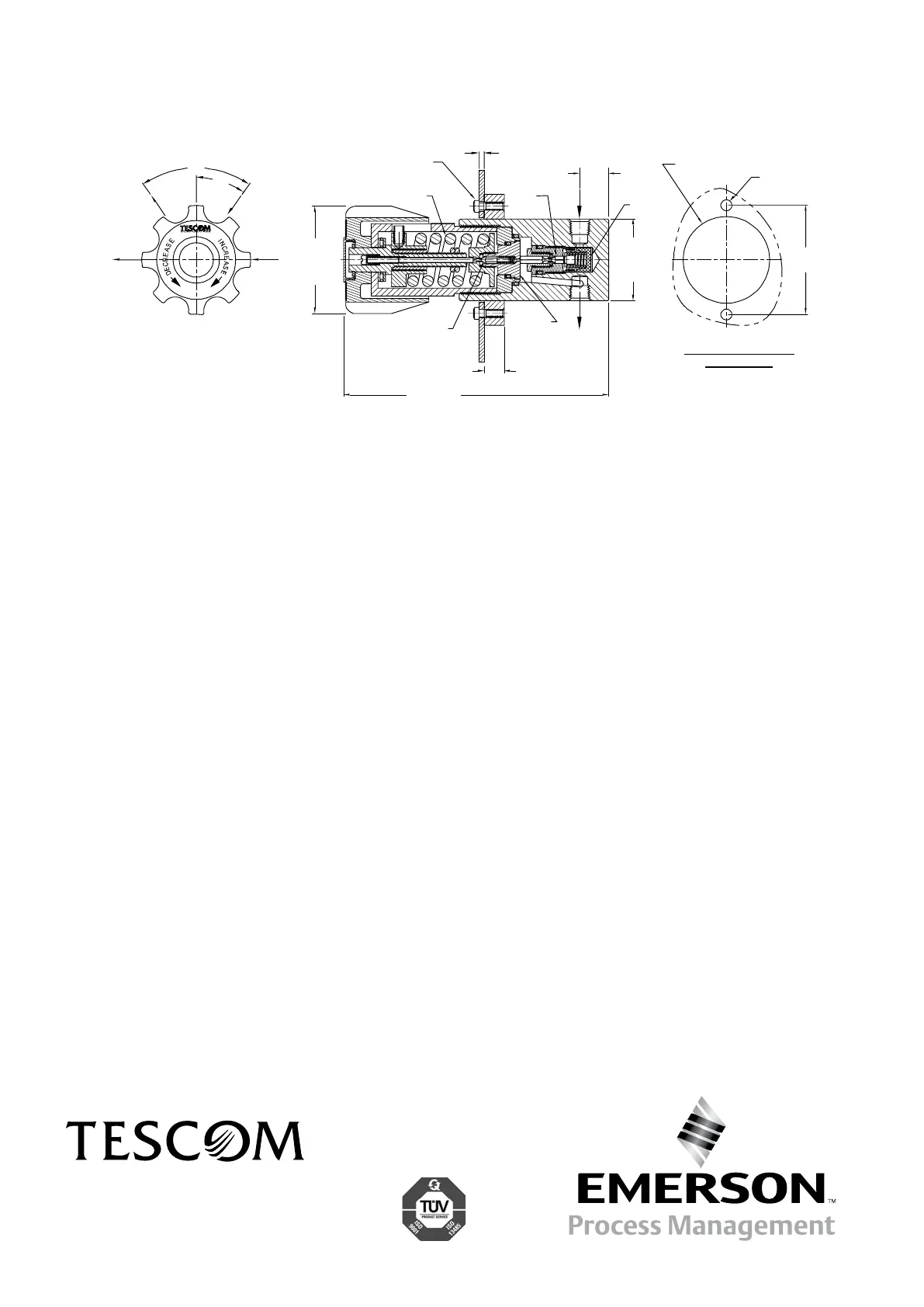

6.2 Einbauzeichnung 6.2 Installationdrawing
71.12
(2.8)
2 x ø 7.14 (0.28)
ø 56.4 (2.22)
19.3
18.0
(0.76)
(0.71)
ø 54.6
ø 52.1
(ø 2.15)
(ø 2.05)
13.2 (0.52)
12.2 (0.48)
175.2 (6.9)
165.1 (6.5)
ø 71.1
ø 68.5
(ø 2.8)
(ø 2.7)
2 x Befestigungsschraube
1/4-20 UNC /
1/4-20 UNC screw reference
2 required
Feder/
Load spring
6.35 (0.25) max.
Schalttafeldicke/
Panel thickness
Hauptventil/
Main valve
Eingang/
Inlet
Ausgang/
Outlet
Sensor
Entlüftungsventil/
Vent valve
Filter
Befestigungsbohrbild/
Panel cut-out
Ausgangs-
manometer-
anschluss/
out gauge port
Ausgang/
outlet port
70°
35°
Eingangs-
manometer-
anschluss/
in gauge port
Eingang/
inlet port
Maße in mm (inch)/
Dimensions in mm (inch)
05/09 GA D42986 AEZ. 07
TESCOM EUROPE GMBH & CO. KG
An der Trave 23 - 25 • D-23923 Selmsdorf • Germany
Tel: +49 (0) 3 88 23 / 31-0 • Fax: +49 (0) 3 88 23 / 31-199
eu.tescom@emerson.com • www.tescom-europe.com
