Emerson THUM User Manual

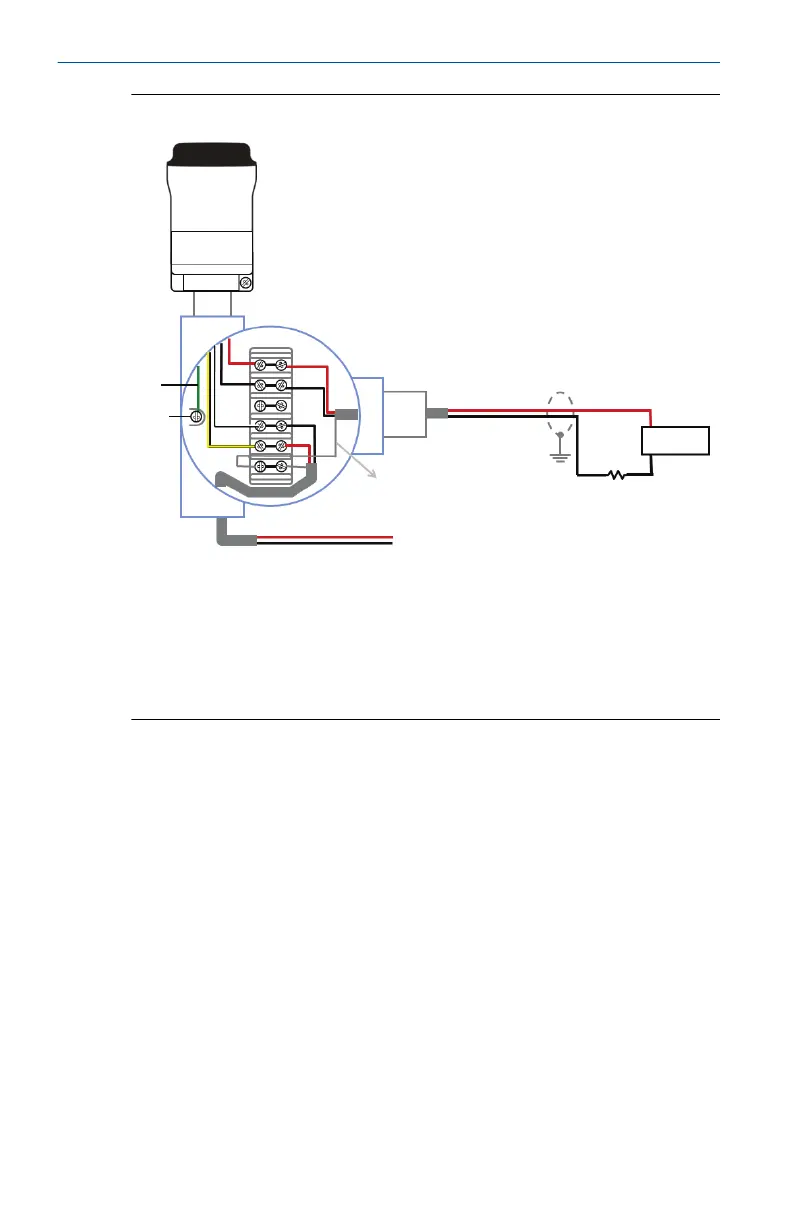

Figure 6-2: Remote Mount Wiring Diagram for 2-Wire Device
A
B
Green
C
Red
Black
White
Yellow
D
+ COMM
- COMM
To Wired Device
4 -20 mA Loop +
4 -20 mA Loop -
E
F
A. THUM Adapter
B. Remote mount housing
C. Ground
D. Shield wire
E. Load resistor ≥ 250 Ω
F. Power supply
Quick Start Guide September 2020
12 Emerson.com/Rosemount
