Emerson THUM - Page 13

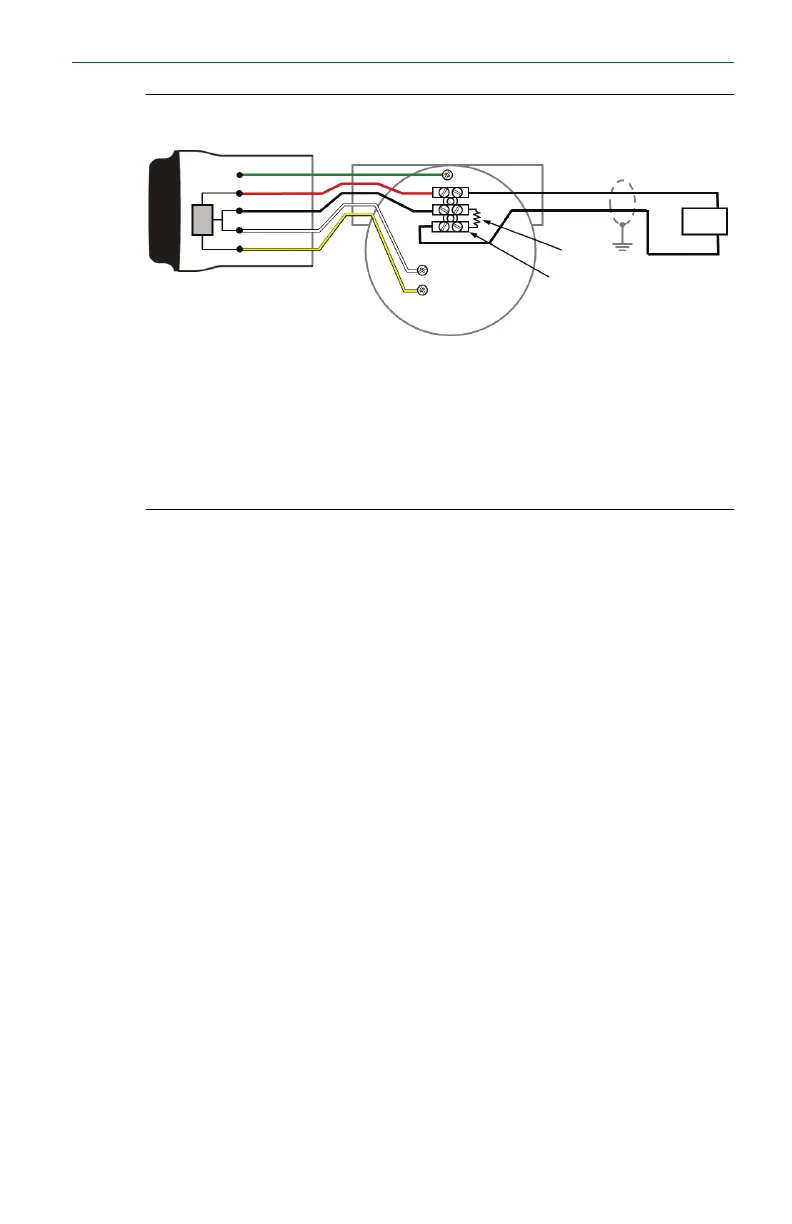

Figure 6-3: Direct Mount Diagram for 2-Wire Device with Resistor
A
Green
Red
Black
White
Yellow
4 -20 mA Loop -
F
B
C
E
D
- PWR/COMM
+ PWR/COMM
4 -20 mA Loop +
A. THUM Adapter
B. Wired device
C. Ground
D. Splice connector
E. Load resistor ≥ 250 Ω
F. Power supply
September 2020 Quick Start Guide
Quick Start Guide 13
