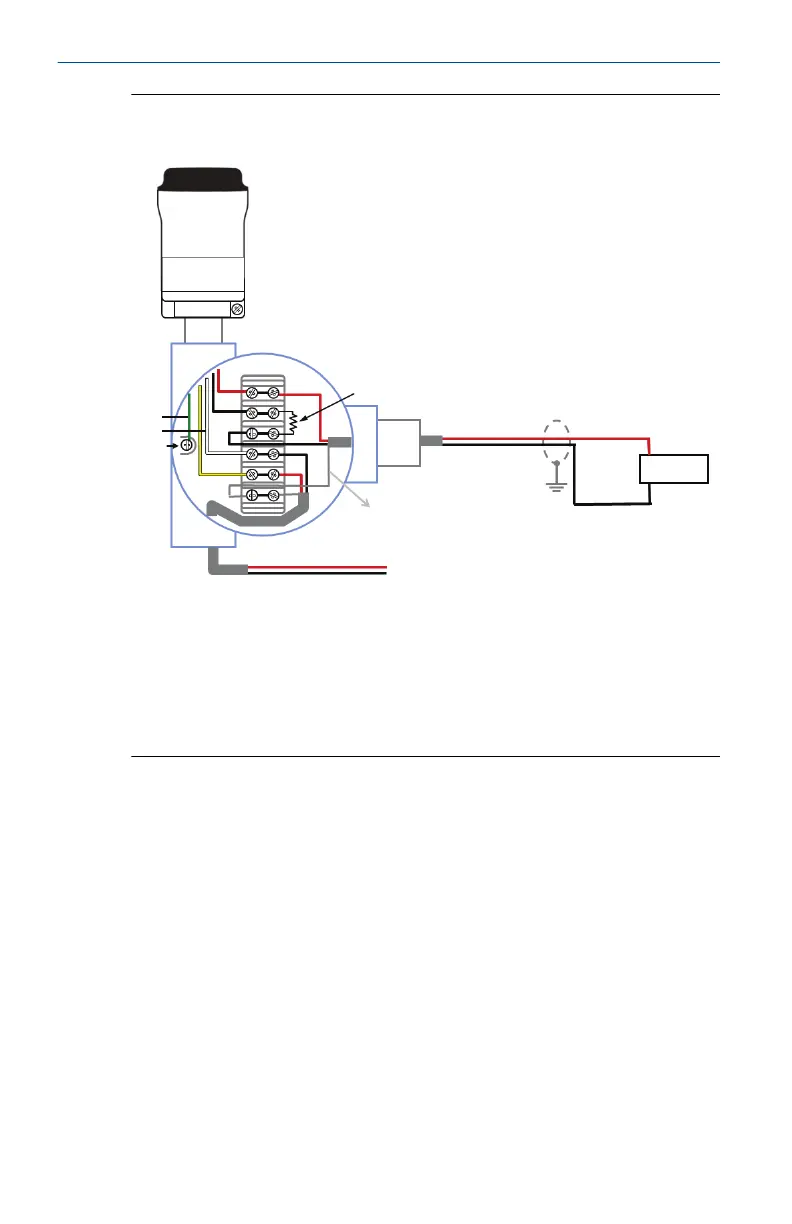

Figure 6-4: Direct Mount Wiring Diagram for 2-Wire Device with
Resistor
A
B
C
Green
White
Yellow
Red
Black
D
E
+ COMM
- COMM
To Wired Device
4 - 20 mA Loop +
4 - 20 mA Loop -
+
-
F
A. THUM Adapter
B. Remote mount housing
C. Ground
D. Shield wire
E. Load resistor ≥ 250 Ω
F. Power supply
Quick Start Guide September 2020
14 Emerson.com/Rosemount
