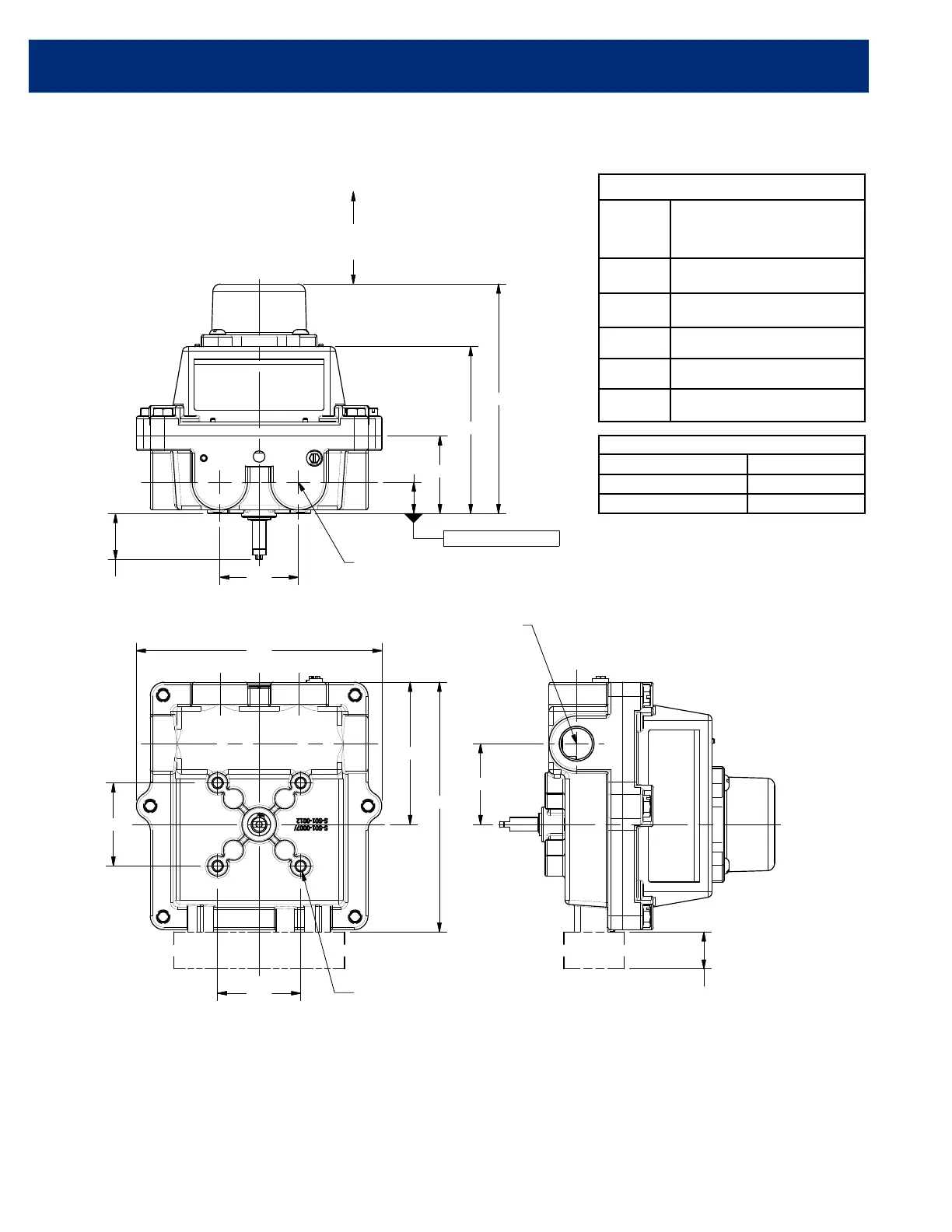

Dimensions and Materials: TopWorx™ DXP
MOUNTING SURFACE
.85
2.10
4.52
6.21
MINIMUM 2.5" REQUIRED CLEARANCE
IN ORDER TO DISINGAGE THE SHAFT FROM THE ID BUSHING
AND REMOVE LID WHERE OPTIMUM CONDITIONS APPLY
SHAFT TYPE OPTIONAL
SEE SHAFT DETAIL
SECTION
2.13
6.65
6.76
3.85
2.25
2.25
5/16-18 UNC - 2B
.44 DEEP
VALVE TYPE OPTIONAL
SEE INTEGRATED PNEUMATIC
CONTROL VALVES SECTION
2.19
OPTIONAL CONDUIT ENTRIES
USED ONLY WHEN 4 ENTRIES
ARE SPECIFIED
OPTIONAL CONDUIT ENTRIES
MATERIALS OF CONSTRUCTION
Enclosure
Cast A360 aluminum with dichro-
mate conversion coating inside &
out, epoxy coated exterior rated for
250 hrs salt spray per ASTM B117
Fasteners
304 Stainless Steel standard
316 Stainless Steel optional
Shaft
304 Stainless Steel standard
316 Stainless Steel optional
Shaft
Bushing
Oilite Bronze
Indicator
Dome
Polycarbonate, UV F1 rated
Seals
O-ring seals available in: Buna &
Silicone,
Maximum Fastener Torque Specifications
Enclosure Housing Bolts 8 ft-lbs [10.8 N·m]
Indicator Dome Screws 20 in-oz [141 mN·m]
Bottom Mounting Holes 10 ft-lbs [13.6 N·m]
Illustration #4
