www.topworx.com
9
TM
Indicator / Dome Replacement Kits
AV-GB002 90º, Green/Open, Red/Closed, Buna O-Ring
AV-YB002 90º, Yellow/Open, Black/Closed, Buna O-Ring
AV-TB002 90º, Green/Thru, Red/Divert, Buna O-Ring
AV-4B002 90º, Green/Open, Red/Closed, Buna O-Ring
Pilot Device Options:
See Illustration
#5
Sensor
Options:
See
Illustration
#6
Indicator Assembly
See Illustration #2
Shaft Assembly
See Illustration #7
Valve Options:
See Illustration #4
External Ground Lug
Internal Ground
Lug
O-ring Seal
Conduit Entry
Screws are
captive

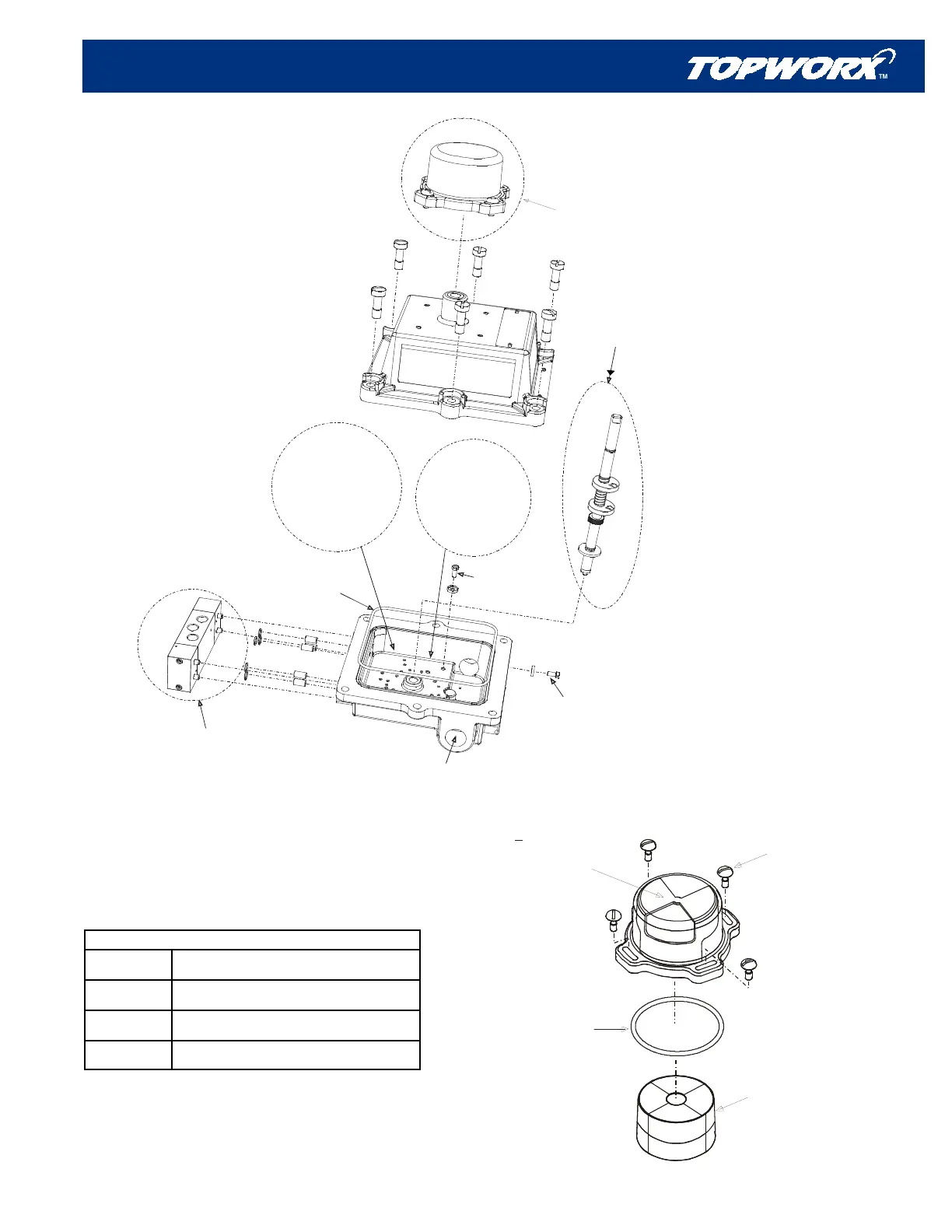

Illustration #9: Enclosure Assembly
Color-coded Indicator is
available in several
coordinating rotations and
forms for various valve
types, such as 90 , 180
and Thru-divert applications.
00
O-ring
Available in Buna-N,
Silicone, EPDM, Viton
10-32 Captive screws,
Stainless (x4)
Indicator Dome,
5 adjustable
Polycarbonate
with keyed mask.
Several rotation and
form options.
+
O
Illustration #10: Indicator Assembly
#10
#11
#12
pg. 10
