Emerson Topworx D Series User Manual

www.topworx.com
7
TM
SHAFT TYPE OPTIONAL
SEE SHAFT DETAIL
SECTION
2.00
1.10
2.10
4.51
6.21
MINIMUM 2.5" REQUIRED CLEARANCE
IN ORDER TO DISINGAGE THE SHAFT FROM THE ID BUSHING
AND REMOVE LID WHERE OPTIMUM CONDITIONS APPLY
2.25
2.25
5.03
3.66
6.10
2.14
VALVE TYPE OPTIONAL
SEE INTEGRATED PNEUMATIC
CONTROL VALVES SECTION
5/16-18 UNC - 2B
.44DP
MOUNTING SURFACE
OPTIONAL CONDUIT ENTRIES
USED ONLY WHEN 4 ENTRIES
ARE SPECIFIED
OPTIONAL CONDUIT ENTRIES

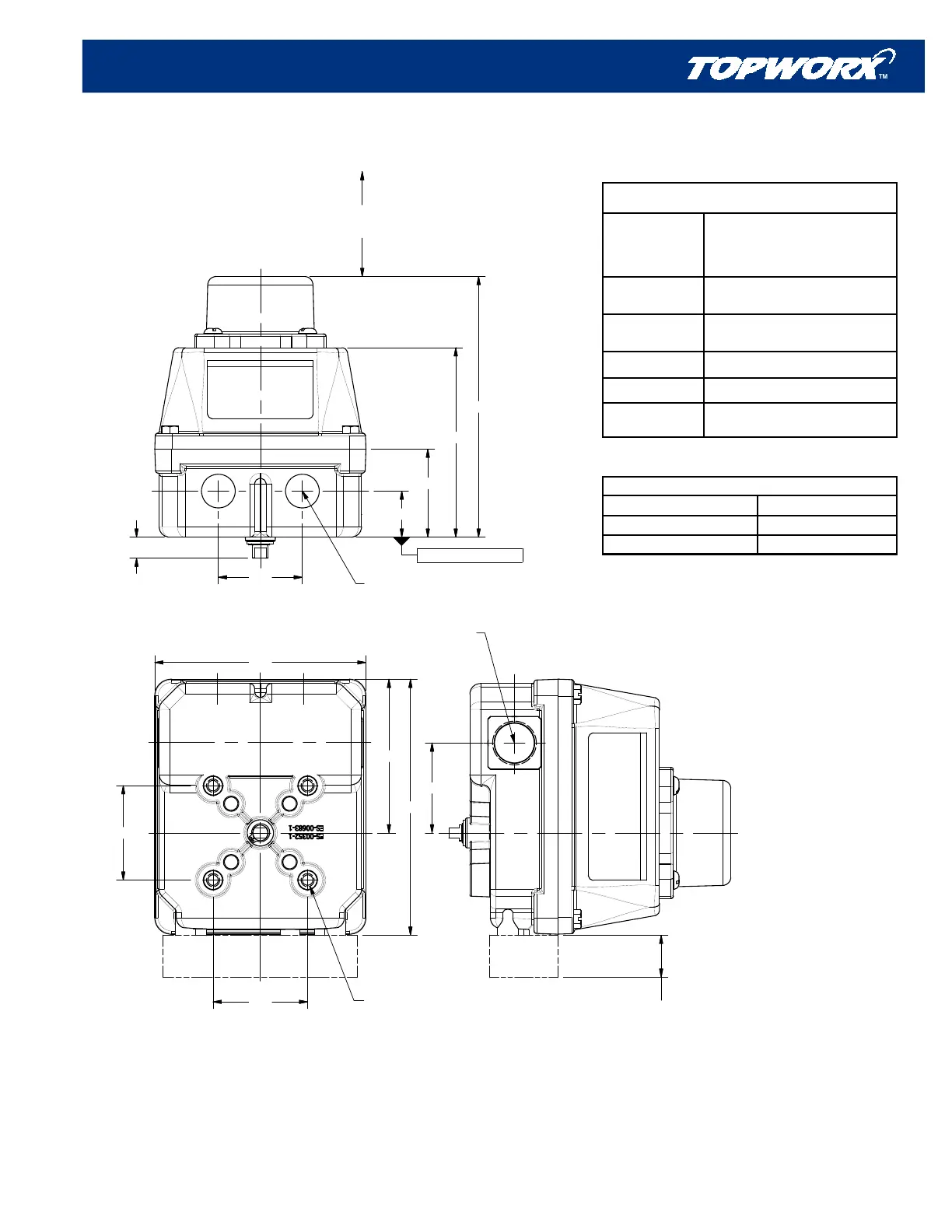

Dimensions and Materials: TopWorx™ DXR
MATERIALS OF CONSTRUCTION
Enclosure
Valox
®
364
Polybutylene
Terephthalate (PBT)
Fasteners
304 Stainless Steel standard
316 Stainless Steel optional
Shaft
304 Stainless Steel standard
316 Stainless Steel optional
Shaft Bushing Delrin
®
500P white
Indicator Dome Polycarbonate, UV F1 rated
Seals O-ring seals available in: Silicone
Maximum Fastener Torque Specifications
Enclosure Housing Bolts 10 in-lbs [903 mN·m]
Indicator Dome Screws 20 in-oz [141 mN·m]
Bottom Mounting Holes 8 ft-lbs [13.6 N·m]
Illustration #7
