4.3 Keypad operation
4.3.1 Control buttons
The keypad consists of:
• Navigation Keys - Used to navigate the parameter structure and change parameter values.
• Enter / Mode button - Used to toggle between parameter edit and view mode.
• Escape / Exit button - Used to exit from parameter edit or view mode. In parameter edit mode, if
parameter values are edited and the exit button pressed the parameter value will be restored to
the value it had on entry to edit mode.
• Start forward button - Use to provide a 'Run' command if keypad mode is selected.
• Start reverse button - Used to control the drive if keypad mode is selected and the reverse button
is activated.
• Stop / Reset button - Used to reset the drive. In keypad mode can be used for 'Stop'.

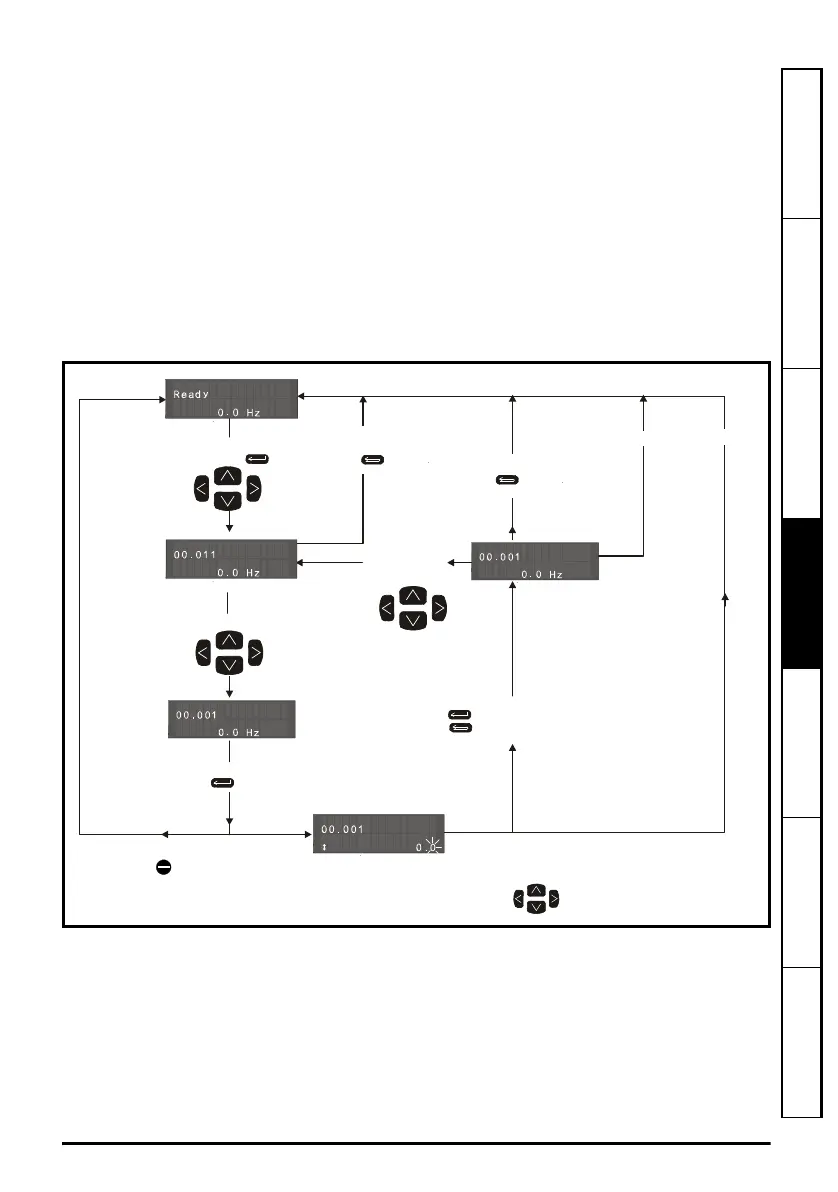

Figure 4-2 Display modes
The navigation keys can only be used to move between menus if Pr 00.049 has been set to show 'All
Menus'
To enter Edit Mode,
press key
Status
Mode
(Display
not
flashing)
Parameter
Mode
(Upper row
display flashing)
Edit Mode
(Character to be edited in lower line of display flashing)
Change parameter values
using keys.
When returning
to Parameter
Mode use the
keys to select
another parameter
to change, if
required
To enter Parameter
Mode, press key or
Tempo rary
Parameter
Mode
(Upper display
flashing)
imeout
To return to Status Mode,
RO
parameter
is displayed
R/W
parameter
To select parameter
Press
To return to Parameter Mode,
Press key to keep the new parameter value
Press key to ignore the new parameter value and return
the parameter to the pre-edited value
Press key
Timeout
or
Press key
