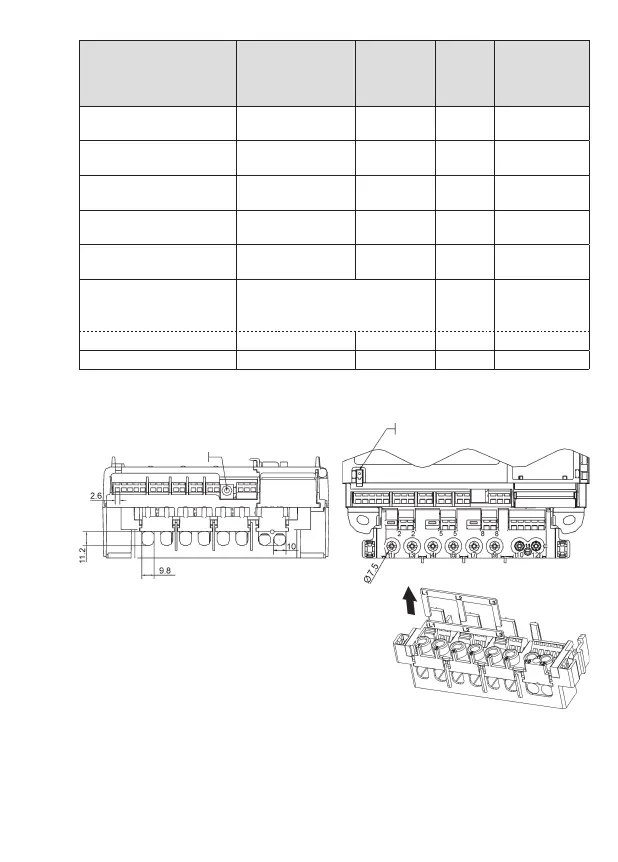

18
Meter up to 100 A
Current
terminals
1, 3, 4, 6, 7, 9
N-
terminal
10, 12
N-tap
11
Additional
terminals
Terminal dimension
W x H or d (mm)
9,8 x 11,2 10,0 3,2 2,6 x 2,2
Minimum connection
cross section (mm²)
16,0 16,0 1,0 1,0
Maximum connection
cross section (mm²)*
35,0 35,0 2,5 2,5
Minimum torques for
terminals (Nm)
4,0 4,0 — —
Maximum torques for
terminals (Nm)
5,0 5,0 0,5 —
Screw type
Screw and washer assembly
with cross recess, Type PZ2
(nach ISO 4757)
Slotted
screw
Spring load-
ed terminal
Thread size
M10 M8 M3 —
Stripping length (mm) 18,0 18,0 6,0 5,0
* Rated connection capacity acc. to EN 60999-1
For testing the device, the voltage paths
are interrupted by a path separator.
Remove the path separator for normal
operation!
Optical bre
connection
Button for manipulation recognition
