10

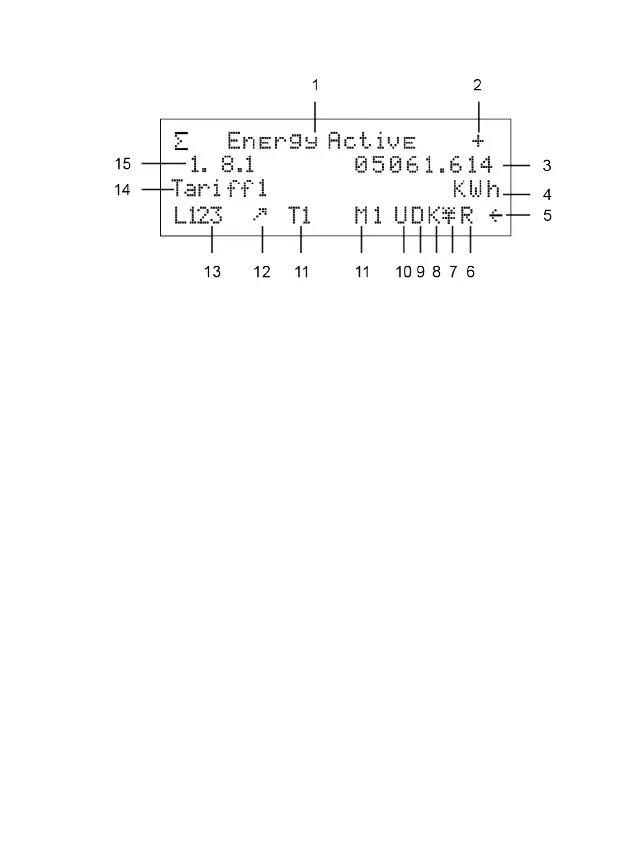

b) 4-line display
1. In the comment text the displayed values are described in clear text.
2. The energy direction indicator shows the direction of the
measured energy (+ for drawing, - for supply).
3. In the value area the measured values are indicated.
4. The unit is indicated corresponding to the measured energy type or
the displayed measured value.
5. The symbol for the reset inhibition ashes if the reset inhibition is
active.
6. If the meter is equipped with a ripple control receiver, this is
indicated by a ashing R. When this symbol is continuously active,
the meter receives a ripple control signal.
7. The DCF status symbol shows the current status of the DCF77
antenna:
No symbol no reception
Symbol ashes reception, but the RTC is not yet
synchronised with the DCF77 receiver
Symbol continuous-
ly active
reception, but the RTC has been
synchronised with the DCF77 receiver
8. The symbol for setting/parameterisation is active when values are
changed in the set mode.
