• Place the shoulder straps through the holes (4a) or (4b) in the
backrest depending on the size of the child.
• Place the waist straps (5) through the holes in the seat.
• Place the crotch strap through the holes (6a) or (6b) in the base
and seat depending on the size of the child.
• Make sure that the waist harness straps securely attached to the
two D rings one on each side.
• Place the shoulder pads over the two shoulder straps (7) (not
Smart). Attach the waist harness with the lock (8).

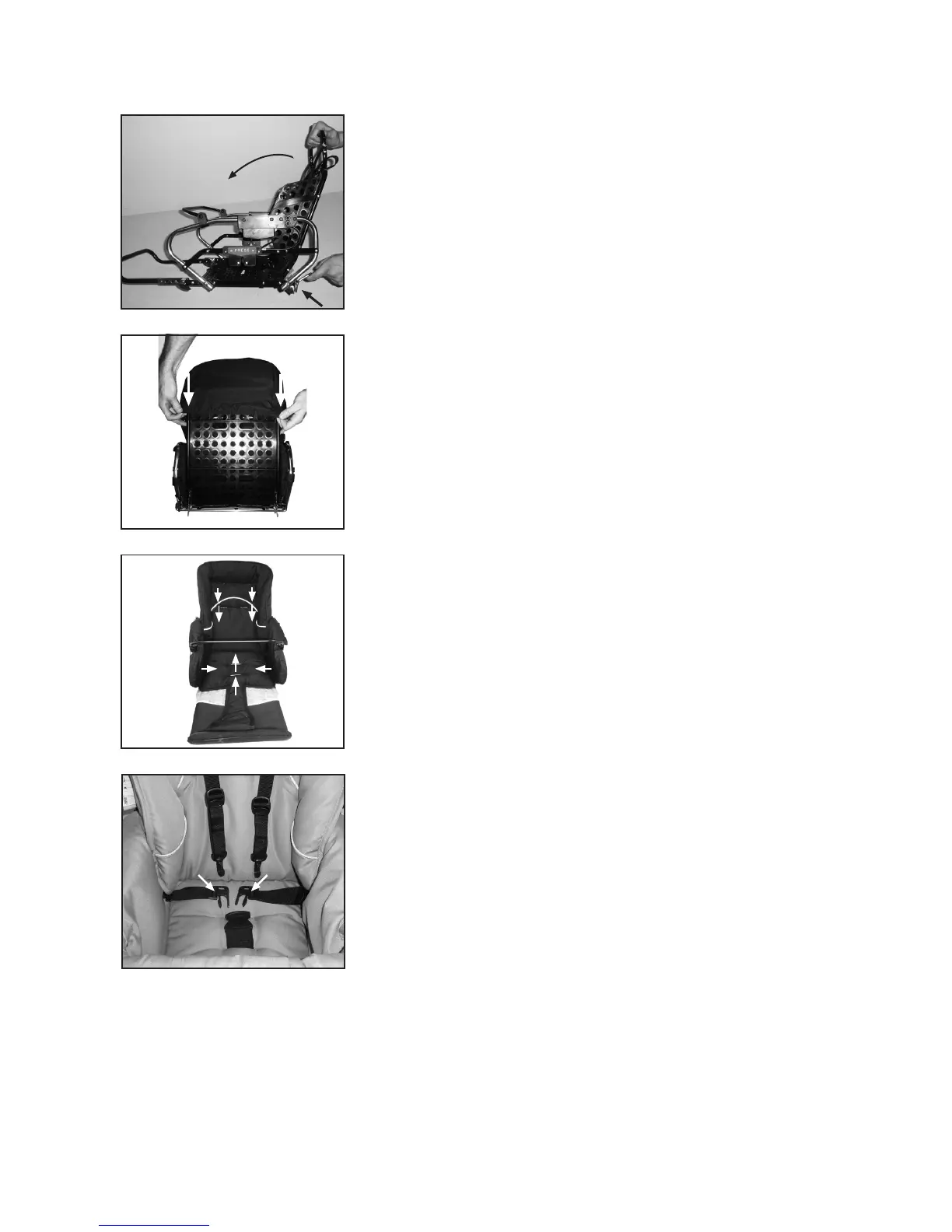

Assembly of Seat unit and 5-point Harness
• Lift the seat adjustment lever (1). Push the backrest into its upright
position (2).
• Before assembly, release shoulder straps and waist straps from
harness buckle.
Slide back pocket of seat fabric (3) over seat frame backrest.
Assembly of seat unit
To Next Page
