5
ASSEMBLYINSTRUCTIONS
ForHandlebar
Your bike has been pre-assembled and requires only a few simple steps
to get it ready for you to ride:
1. Carefully remove your bike from the carton and gently rest it in place with the
kickstand down.
2. Remove all of the inside cardboard protection and bubble wrap on the bike.
3. Please locate and set aside the kit box containing the battery charger, pedals, and
tool kit etc.

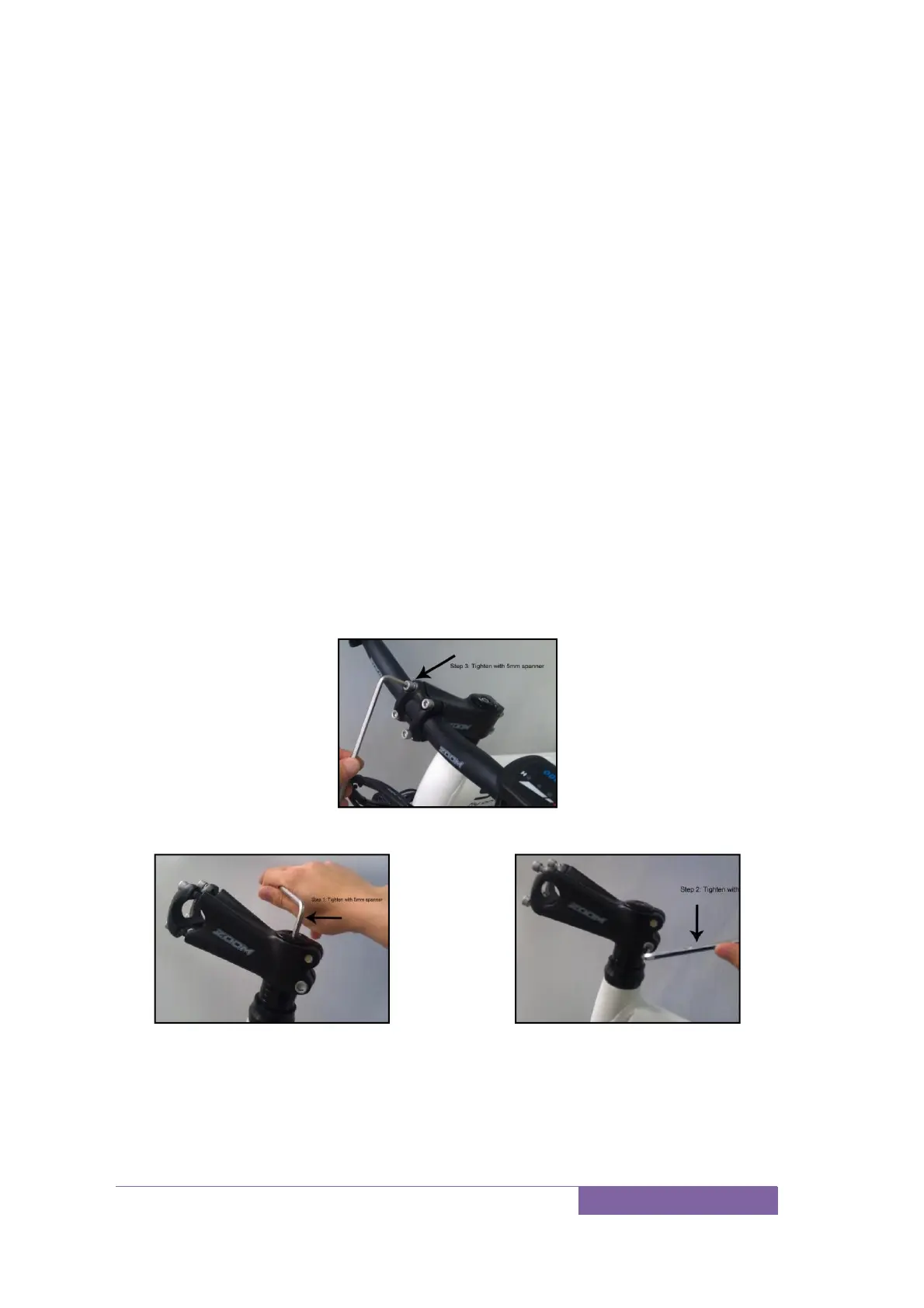

4. Place the handle bar on the stem, and tighten four bolts with 5mm Allen Key
(Figure 1), Position the handlebars to your desired comfort level.
5. Once the handlebars are aligned and the top bolt is slightly secured, firmly tighten
the 2 side bolts on the stem with 6mm allen key (Figure 3). After tightening the 2
side bolts, firmly tighten the top bolt with 5mm allen key (Figure 2). After all 3 bolts
have been securely fastened, make sure there is no looseness in the headset.
WARNING:
Do not over-tighten the stem bolt. Over tightening the stem bolt can damage
the steering system and cause loss of control.
Figure 1
Figure 2 Figure 3
