P.A.S. Control and display

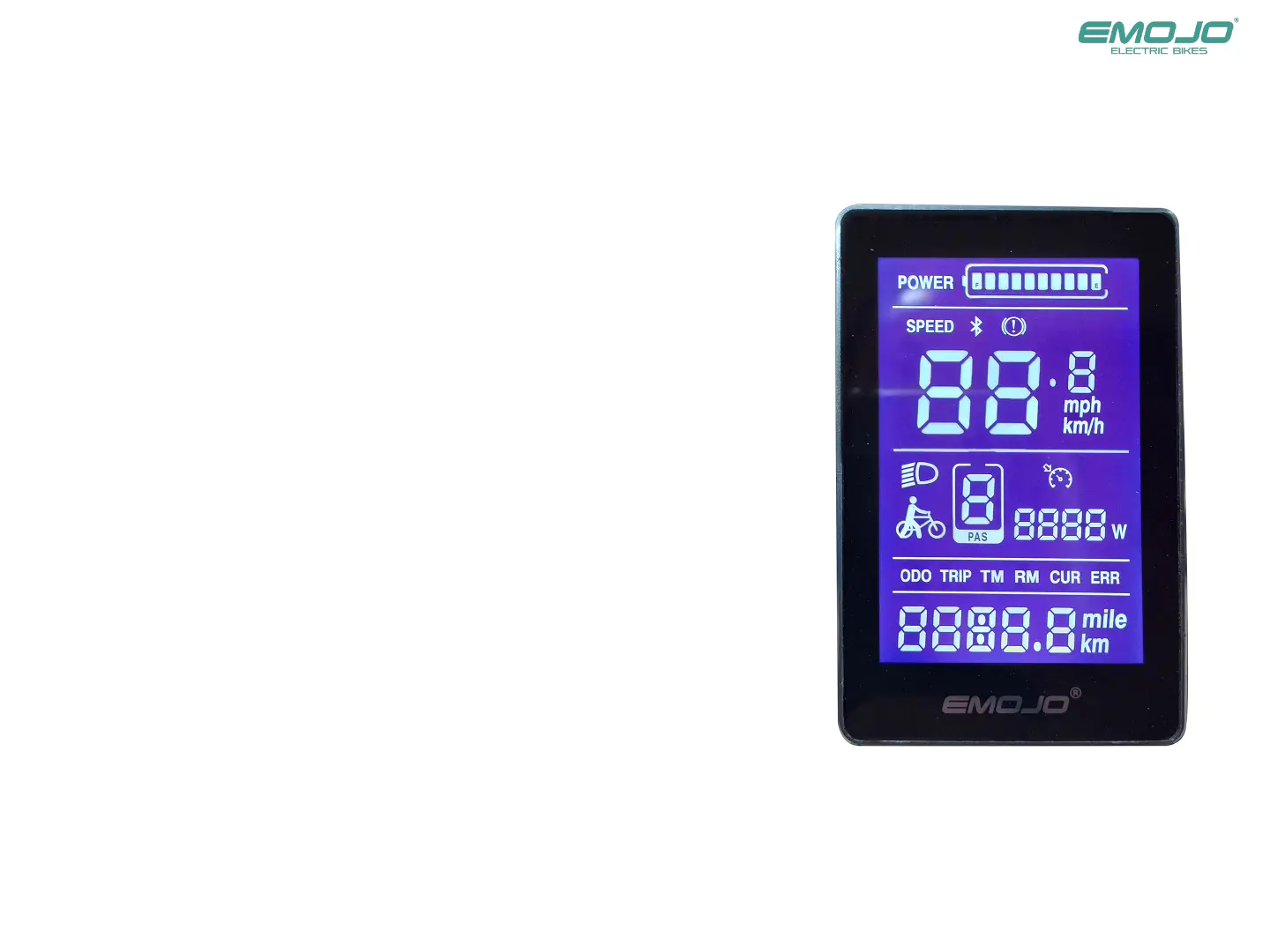

The LCD meter monitors pedal assist, speed, odometer, trip distance, riding time, and battery energy level.
To tum the meter on, make sure the battery is fully inserted into the bike.
Press the power button (M button) on the two button selector located near
the left grip on the handlebars to tum the meter on.
You can adjust the pedal assist power level to have
more power by hitting the [+] button (first button top to bottom)
and can move to a lower level power by hitting the [-] button
(third button top to bottom).
When not riding the bike, you can tum off the meter by
holding down the power button (M button) for several
seconds.
1-Power On/Off
Press the M button to power on the display. To power off the display
And power supply to the bicycle press and hold for 3 seconds
2-Pedal assist (PAS)
The system has 5 P.A.S. assistance modes, use the + -buttons to
scroll between modes
3-Riding Modes
Walk: Walking boost, Cruise: Constant speed cruise, PAS: Pedal assist levels.
4-Multi function display
Press the M button on to switch between Total Mileage: ODO, Single Mileage:
TRIP A, dingle Mileage: TRIP B, current Voltage VOL, operating Current:
CUR, Display Booting Time: TM, Riding time!
The riding time will be saved up to 100 hours unless you reset it
5-Battery level indicator (Energy bar)
Indicates battery level, there are 5 levels, each segment stands for 20% charge
6-Speed Indicator
Shows the speed either in MPH or Km/h
8-P.A.S. Level
Indicates the level of motor assistance. Use the+-buttons to switch between PAS levels
9-Lights: Turn your display ON, then press and hold the UP arrow for a few seconds to
turn on the lights. To turn them off press and hold again the UP arrow.
9
