Front wheel installation
Read the instructions carefully to identify and understand the components of the electric bicycle such as pedal, seat post etc.
And the name of relevant spare parts.
When specialized servicing of bike is required, please go to an authorized EMOJO repair shop or store or another trusted bike professional.
1. Assembly of the font wheel unit:
Identify the nuts and the lock washers (Fig A) necessary for the front axle assembly.!
Assemble the font wheel unit onto the font fork, pass the lock washers thru the axle and lock the tab into the groove of the front fork (fig. B).
Tighten the nuts on both sides of the hub with a wrench (fig C).
Attention: when assembling, make sure the disc brake and the brake caliper are on the same side (left side), the disc brake must slide into
the gap between the two brake pads of the disc brake caliper (Fig. D), make sure the wheel turns freely and does not rub against the
brake pads when the font brake is not been pressed.

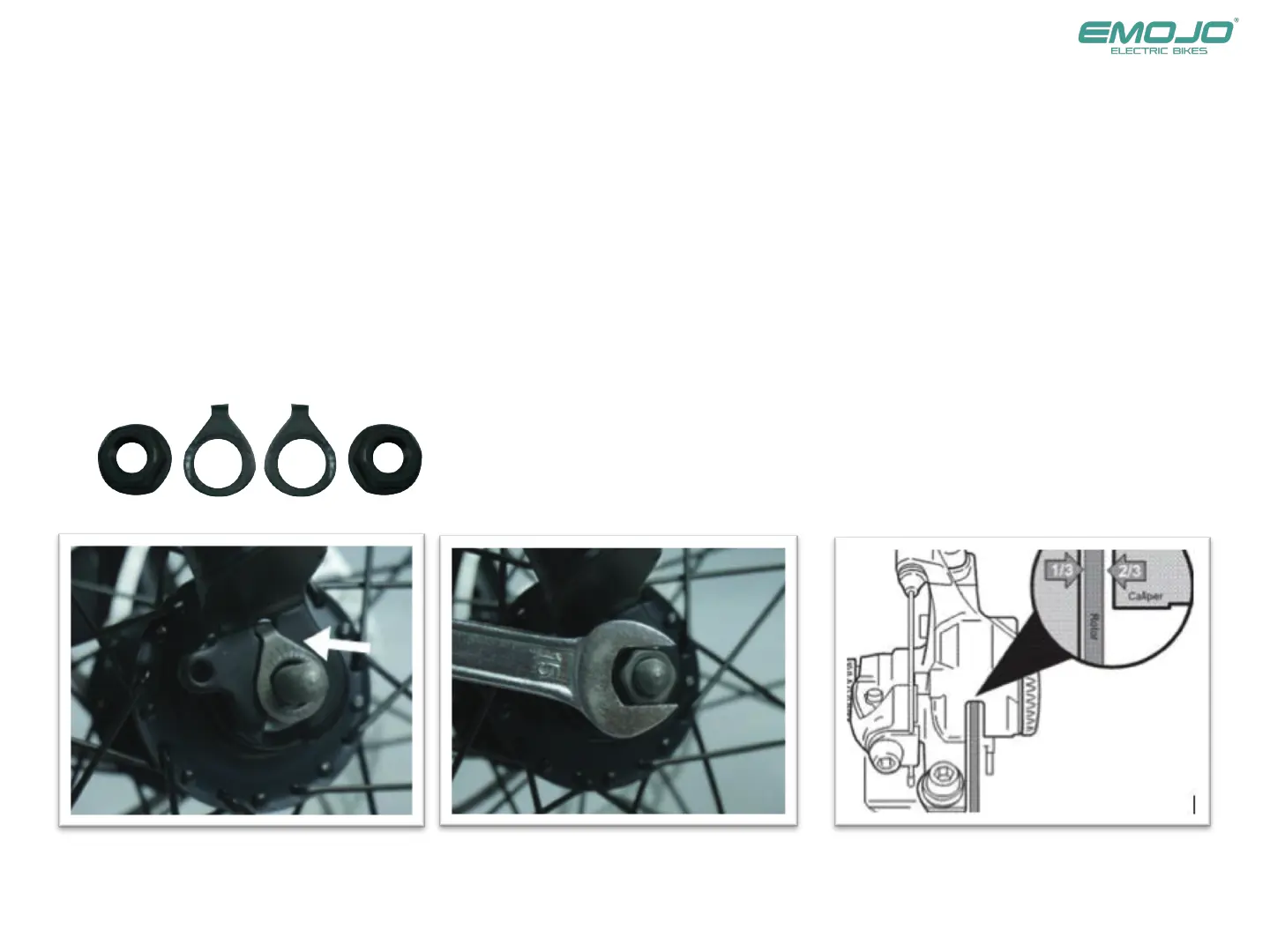

Fig!A!
Fig!B! Fig!C! Fig!D!
