OVERVIEW
CONSOLE
DC 5V 600mA
10
9
15
16 17
18
11
14
13
12
20
19
1 2 3 74 5 6
22
21

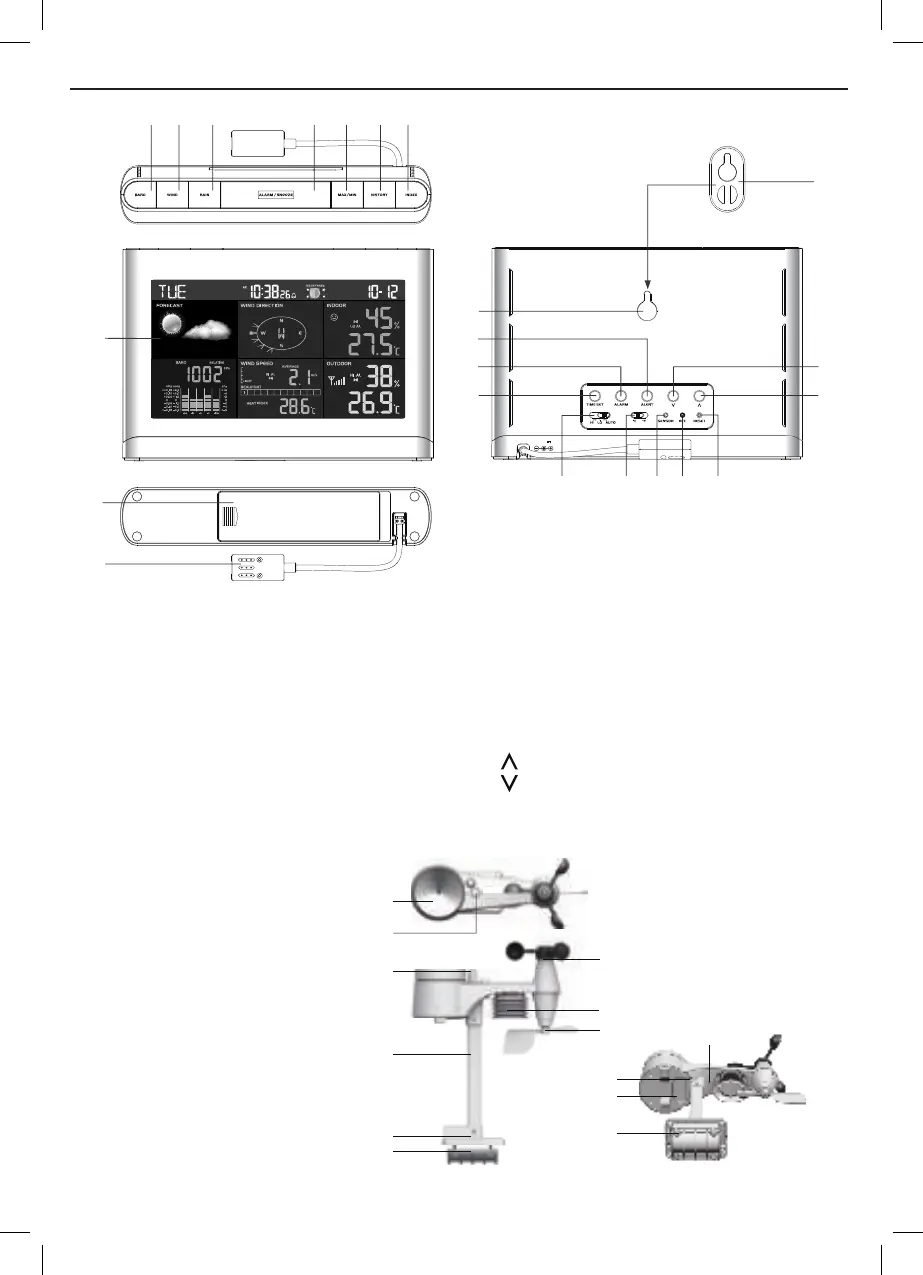

1. [ BARO ] key 12. [ ALERT ] key
2. [ WIND ] key 13. [ ALARM ] key
3. [ RAIN ] key 14. [ TIME SET ] key
4. [ ALARM / SNOOZE ] key 15. [ HI / LO / AUTO ] dimmer slide switch
5. [ MAX / MIN ] key 16. [ °C/°F ] slide switch
6. [ HISTORY ] key 17. [ SENSOR ] key
7. [ INDEX ] key 18. [ RCC ] key
8. LCD display 19. [ RESET ] key
9. AAA battery compartment
20. [
] key
10. Power jack / Temperature sensor
21. [
] key
11. Wall-mounting hole 22. Extend wall mount holder
WIRELESS 5-IN-1 SENSOR
1. Rain collector
2. Balance indicator
3. Antenna
4. Wind cups
5. Mounting pole
6. Radiation shield
7. Wind vane
8. Mounting base
9. Mounting claim
10. Red LED indicator
11. [ RESET ] key
12. Battery door
13. Screws
1
2
3
5
8
9
4
7
6
12
10
11
13
8
