Empava EMPV-30RH08 - Installation Height and Ducting; Balance and Leveling

Not level

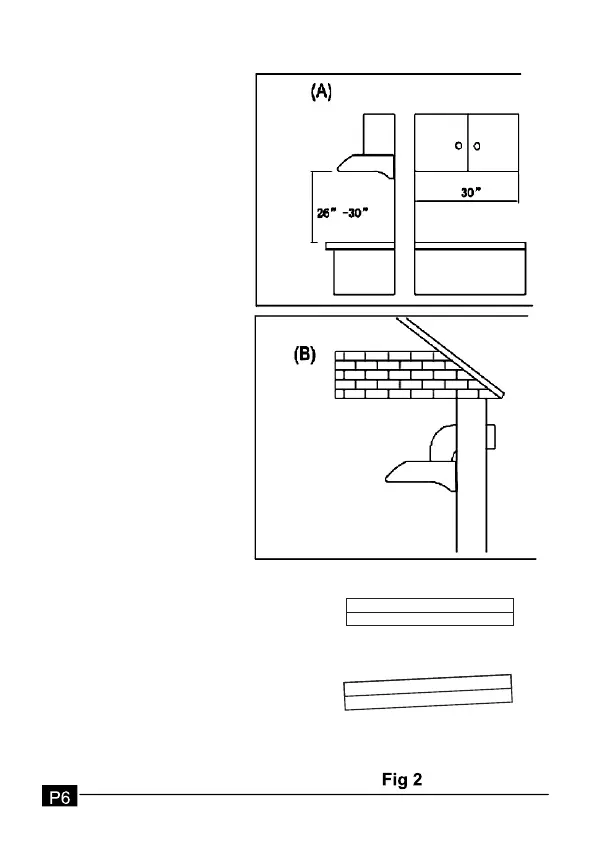

Installation Height
3. The distance between
the stove surface and
the underside of the
range hood must be in
the range of 26"-30"
Fig(2-A).
The duct opening size
is in Fig 2(B)
Vent duct length
4. The length of the
vent duct should be
minimized to avoid air
turbulence inside the
duct. (Fig (2-B).
Balance level:
5. The range hood must
be in level during the
installation. A not level
installation hood may
cause improper operation,
leaks and oil spill over
from oil collectors.
Fig(2-C)
Level
(C)
