Empava EMPV-IDC24 User Manual

27
L(in)
W(in)
H(in)
D(in)
A(in)
B(in)
X(in)
EMPV-IDC12
11.42
20.47
2.28
2.13
10.63
19.29
1.97mini
EMPV-IDC24
23.62
20.47
2.28
2.13
22.05
19.29
1.97mini
EMPV-IDC30
29.92
20.47
2.28
2.13
28.74
19.29
1.97mini
EMPV-IDC36
35.43
20.47
2.28
2.13
33.86
19.29
1.97mini
EMPV-IDCF9
35.43
20.47
2.28
2.13
33.86
19.29
1.97mini

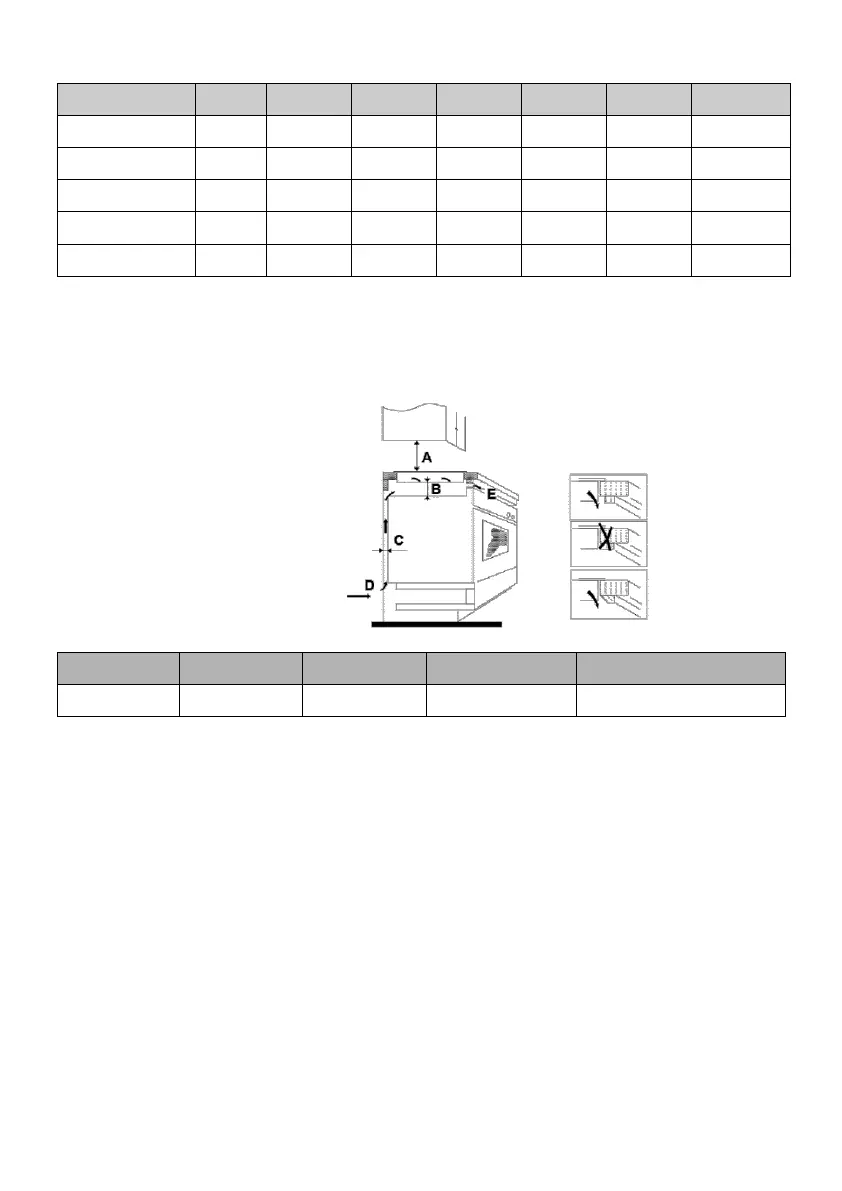

Under any circumstances, make sure the cooktop is well ventilated and the air inlet and
outlet are not blocked. Ensure the cooktop is in good work state. As shown below.
Note: The safety distance between the hotplate and the cupboard above the hotplate
should be at least 760mm.
A(in)
B(in)
C(in)
D
E
29.92
1.97 mini
0.79 mini
Air intake
Air exit 0.20in
Before you install the cooktop, make sure that
• The work surface is square and level, and no structural members interfere with
space requirements.
• The work surface is made of a heat-resistant material.
• If the cooktop is installed above an oven, the oven has a built-in cooling fan.
• The installation will comply with all clearance requirements and applicable
standards and regulations.
• A suitable isolating switch providing full disconnection from the mains power
supply is incorporated in the permanent wiring, mounted and positioned to comply
with the local wiring rules and regulations.
• The isolating switch must be of an approved type and provide a 0.12in air gap
contact separation in all poles (or in all active [phase] conductors if the local wiring
rules allow for this variation of the requirements).
• The isolating switch will be easily accessible to the customer with the cooktop

Empava EMPV-IDC24 Specifications

General

Brand	Empava
Model	EMPV-IDC24
Category	Cooktop
Language	English
