Cut Out dimensions

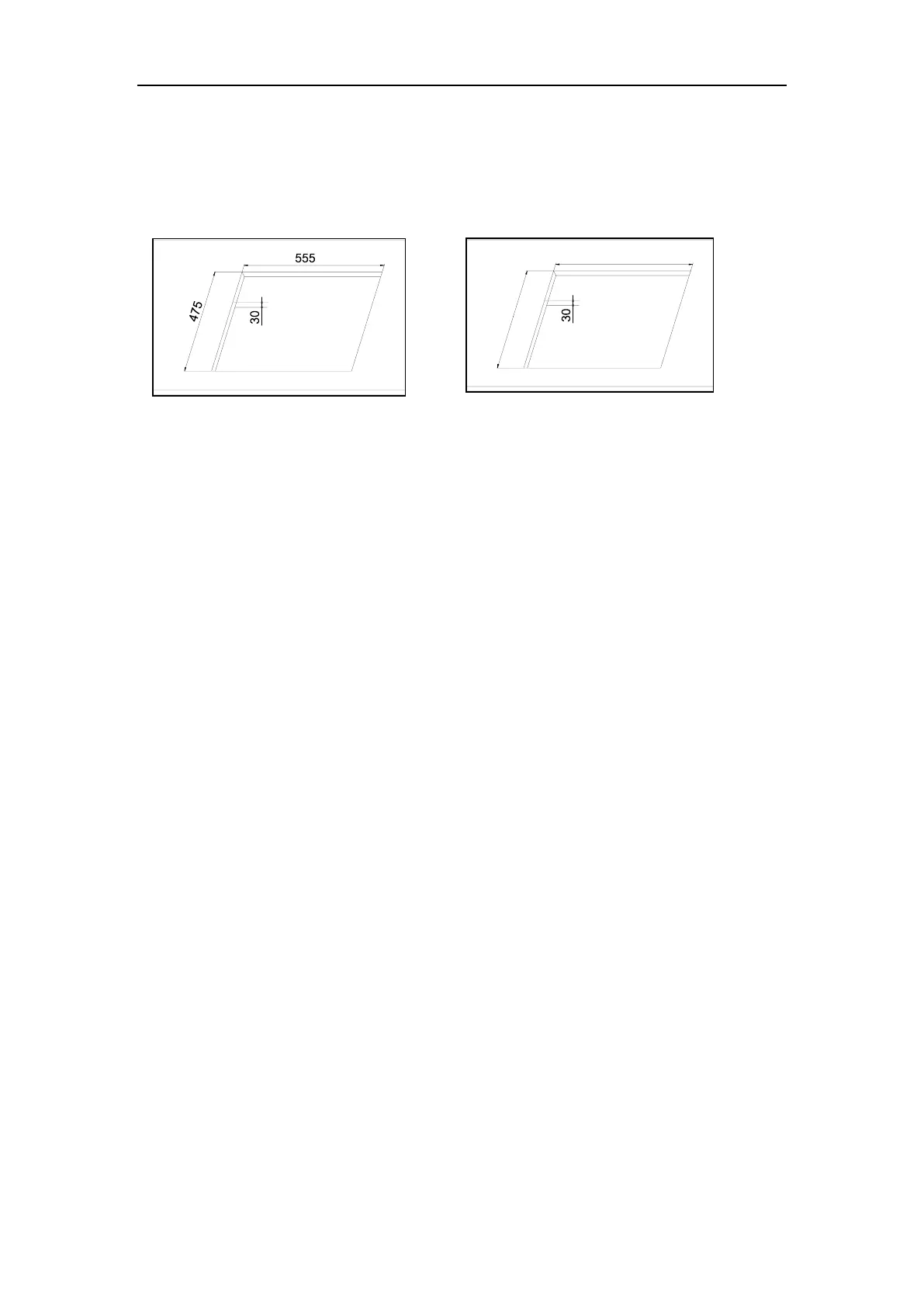

The dimensions of the cut-out are given in the diagram. (Dimensions are given in mm.)
Figure 17 Figure 18
Electrical connections
Any electrical work required to install this gas cooktop should be carried out by a qualified electrician or
competent person.
Check the last letter of your model to know the electrical supply type:A is for AC,D is for DC.
See PAGE 1 to check the electrical supply of your model
The GAS COOKTOP MUST BE EARTHED
If the cooktops to be connected to a 120V, 60 Hz AC electrical supply.
Before switching on, make sure the electricity supply voltage is the same as that indicated on the
cooktops rating label.
Ensure that the cooktops supply cable does not come into contact with surfaces with temperatures
higher than 50 deg. C.
WARNING
Electrical Grounding Instructions
This appliance is equipped with a three-prong grounding plug for your protection against shock
hazard and should be plugged directly into a properly grounded receptacle.Do not cut or remove
the grounding prong from this plug.
