17

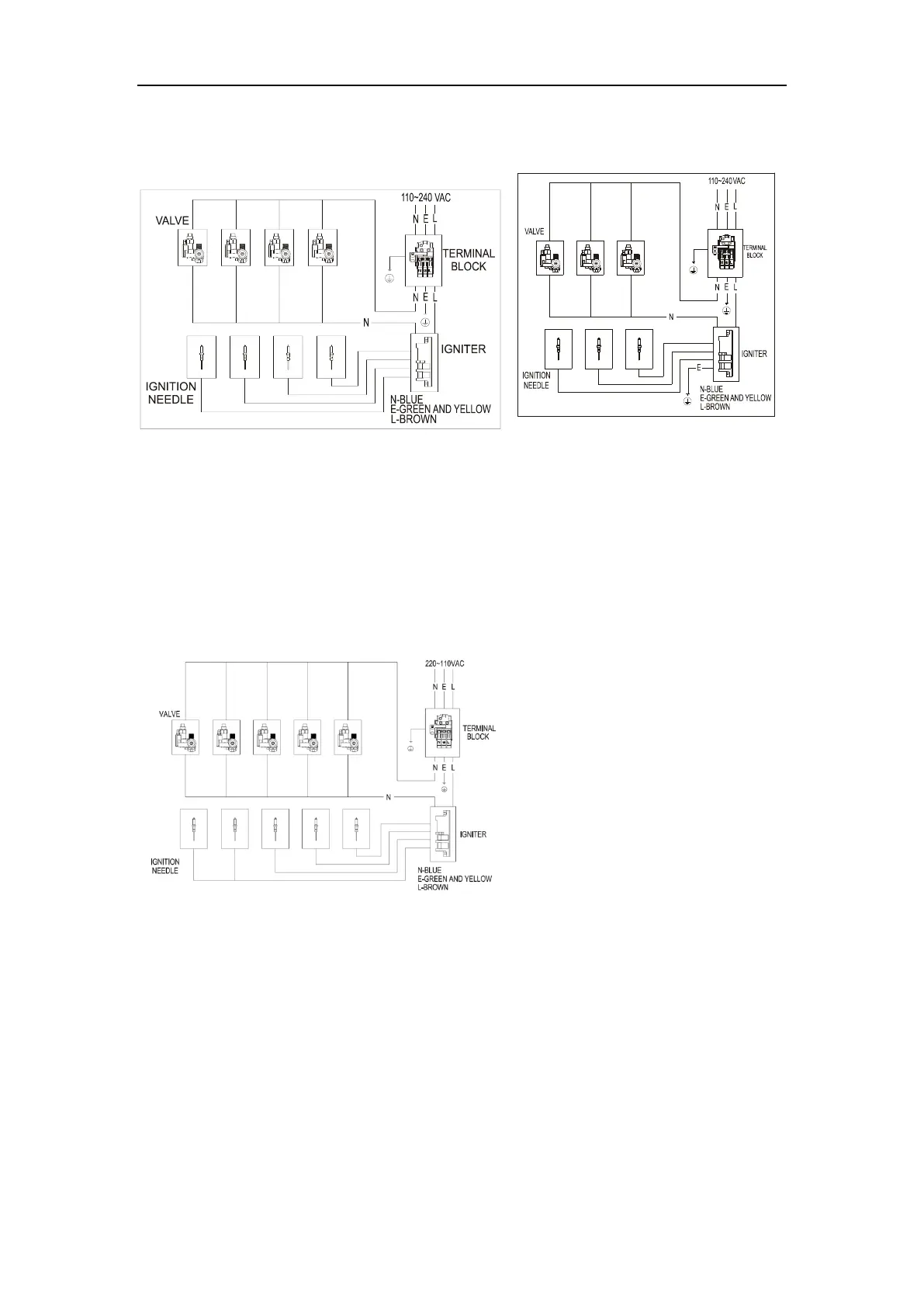

Circuit Diagram
Figure 19(for the appliance with four burners) Figure 20(for the appliance with three burners)
Figure 21(for the appliance with five burners)
Use with D.C battery
When your cooktop is the one fitted with D.C supply device only,you are suggested to use one 1.5V
