Empire DVX36FP31L-4 - Log Placement (13 Log Set)

31449-4-1113 Page 45
Log Set Parts List
Index Letter PartNumber Description
A R9228 Rear Bottom Log
B R9222 Rear Top Log
C R9227 Bottom Left Log
D R9372 Bottom Left Center Log
E R9225 Bottom Right Center Log
F R9229 Bottom Right Log
G R9223 Front Left Log
H R9373 Center Log
I R9230 Top Left Log
J R9231 Top Center Log
K R9232 Top Right Log
L R9224 Front Center Log
M R9226 Front Right Log

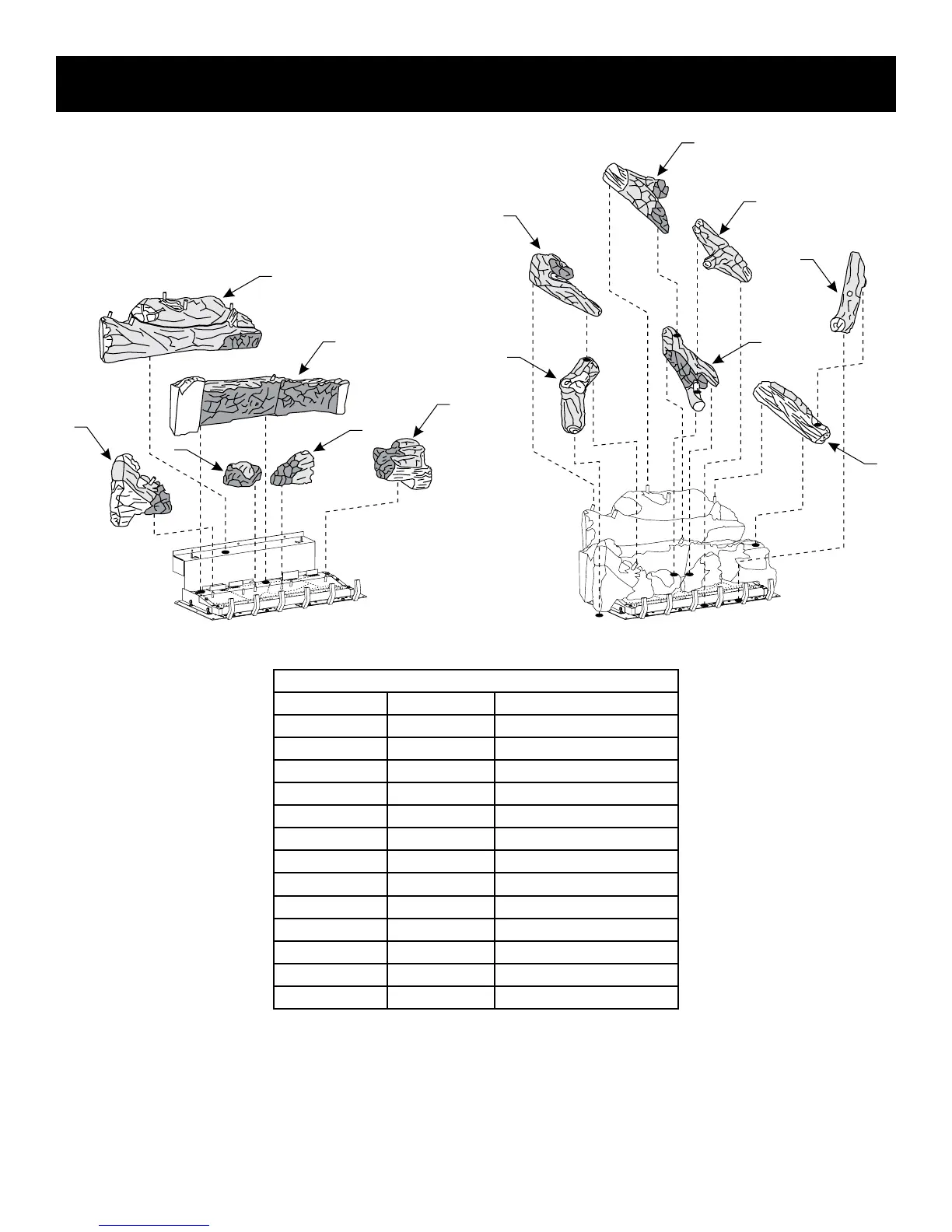

LOG PLACEMENT (13 LOG SET)
A
B
F
E
D
C
J
L
G
H
M
K
I
Figure 67
Figure 68
