Empire DVX36FP31L-4 - Millivolt Standing Pilot Wiring Diagram

31449-4-1113Page 48
Figure 71
REMOTE CONTROL RECEIVER
GAS VALVE
REMOTE/OFF/ON SWITCH
(OPTIONAL) REMOTE CONTROL RECEIVER
REMOTE/OFF/ON SWITCH
REMOTE
OFF
ON
THERMOPILE
IF ANY OF THE ORIGINAL WIRE
AS SUPPLIED WITH THIS UNIT
MUST BE REPLACED, IT MUST BE
REPLACED WITH NO. 18, 150°C
WIRE OR ITS EQUIVALENT.
GAS VALVE
THERMOCOUPLE
(REAR CONNECTION)
PILOT
(OPTIONAL) THERMOSTAT
(OPTIONAL) WALL SWITCH
RED
GREEN
BLACK
GREEN

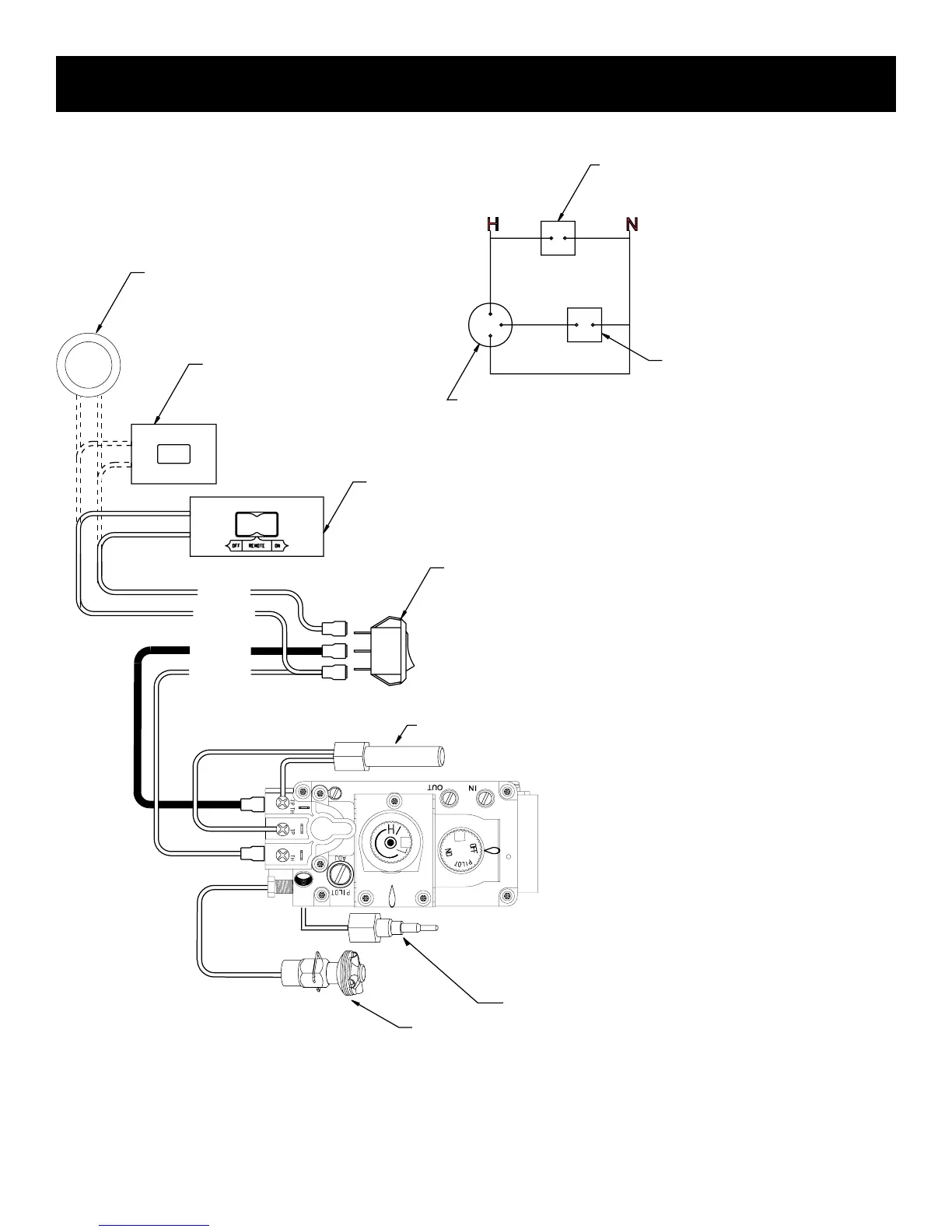

MILLIVOLT STANDING PILOT WIRING DIAGRAM
