Output Screen
For the status of both channels to be viewed when running simultaneously
it is best to move to the Output screen which is achieved by touching the
‘Output’ button at the bottom right of the display. It is possible to move from
the ‘Setup’ screens to the ‘Output’ screen while a treatment is running by
touching the ‘Output’ button at the bottom right of the display, but going
back from the ‘Output’ screen to a ‘Setup’ screen is disallowed (greyed-out)
unless the output is first reduced to zero using the encoder (there would be
little point in returning to a ‘Setup’ screen unless editing of a parameter was
required, and this can only be done if the treatment is halted anyway).
In the ‘Output’ screen only the output levels of each (or both) channels can
be controlled while the treatment is running. The ‘A’ and ‘B’ buttons at the
bottom left of the display select which channel(s) the rotary control acts on -
these latch on and off (highlighted yellow when active) and can be selected
individually or both together (which gives simultaneous control of the output
of both channels).
The buttons marked ‘CC’ and ‘CV’ (constant current or constant voltage) in
this screen also give control over selection of either of these modes for
each channel independently but are only active when the treatment is
halted.

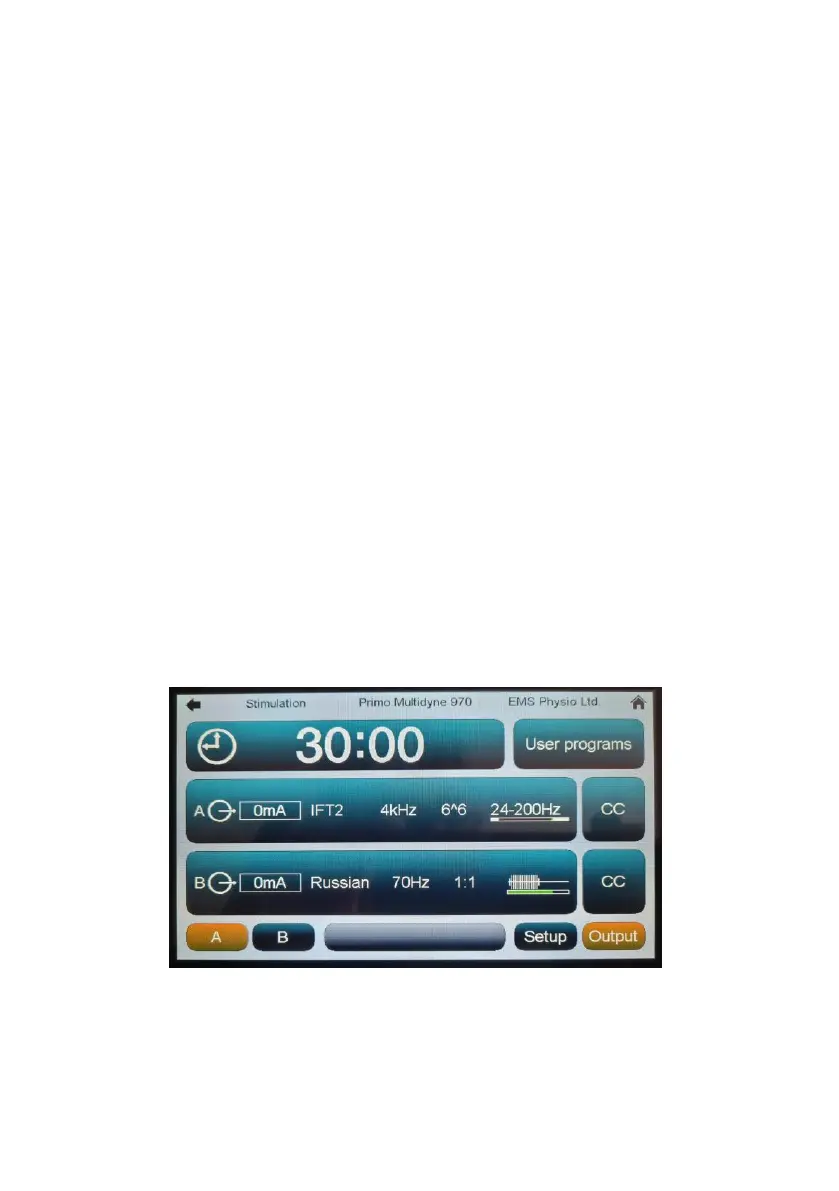

Here is the appearance of the ‘Output’ screen when Channel A has
previously been set to Interferential 2-pole (IFT2) in the Setup screen and
Channel B has been set to Russian stimulation (see page 29) –
