Button Operation Model 5002

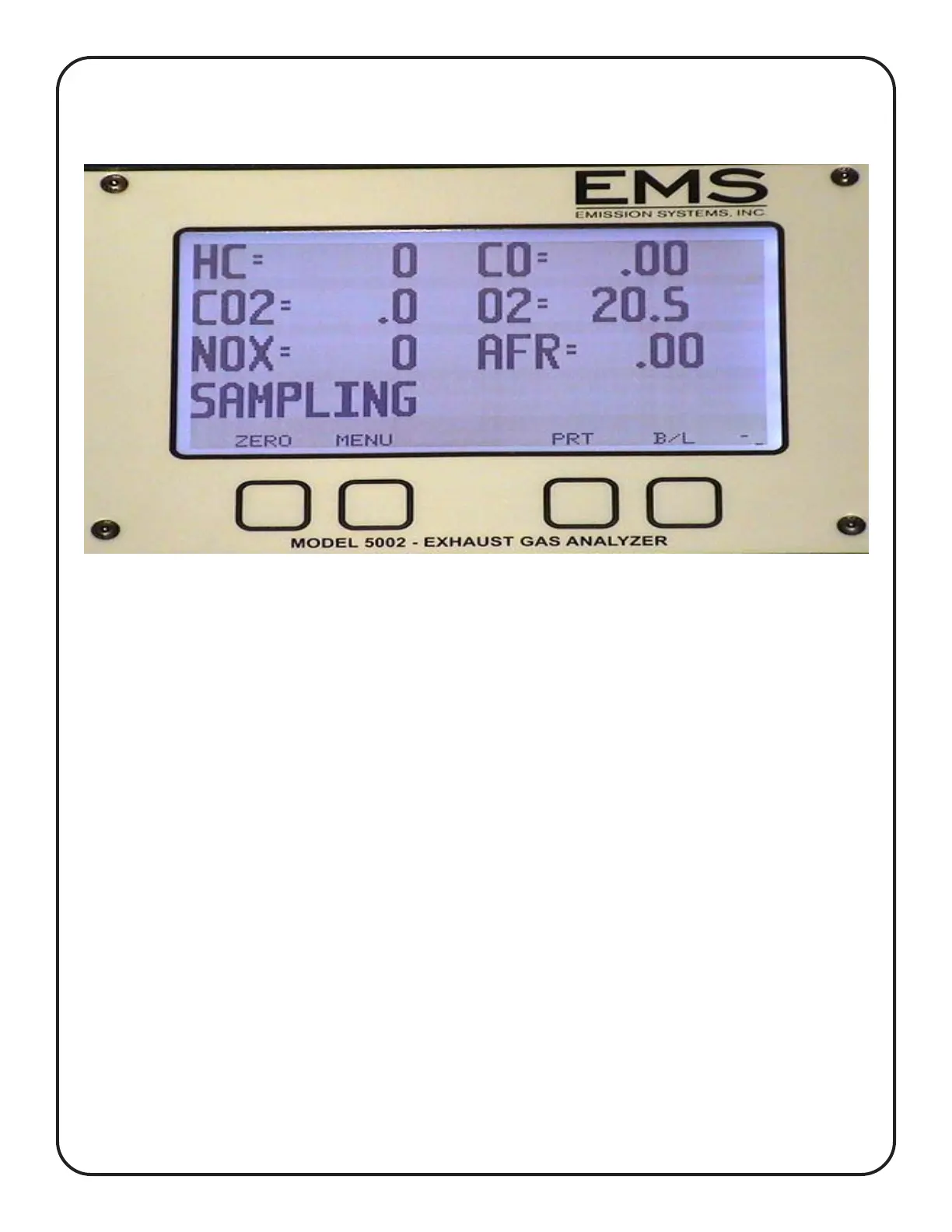

Figure 2 shows the control buttons on the front of the gas analyzer:

1. The “Zero” button has two functions.

a. Zeroing the gas analyzer as needed during use.

b. Restarting the pump following automatic shutdown.

2. The “Menu” button has several functions.

a. Access calibration screen

b. Change between AFR/Lamda

c. Access ERROR message screen

3. The “Print” button is used to print a snapshot of gas reading information. A parallel

printer will need to be connected to the 25 pin connector on the back of the analyzer.

4. The “B/L” button is used to turn the back light off and on. The back light default is in

the on position for all screens. You can turn the back light off on the main sampling

screen only.

Figure 2

12 34
