EMTEST BS 200N100 - Operating Functions; Operating Elements on the Top Side

AMETEK CTS BS 200N100
Operating manual V 1.12 5 / 21
2.
Operating functions
2.1.
Operating elements on the top side

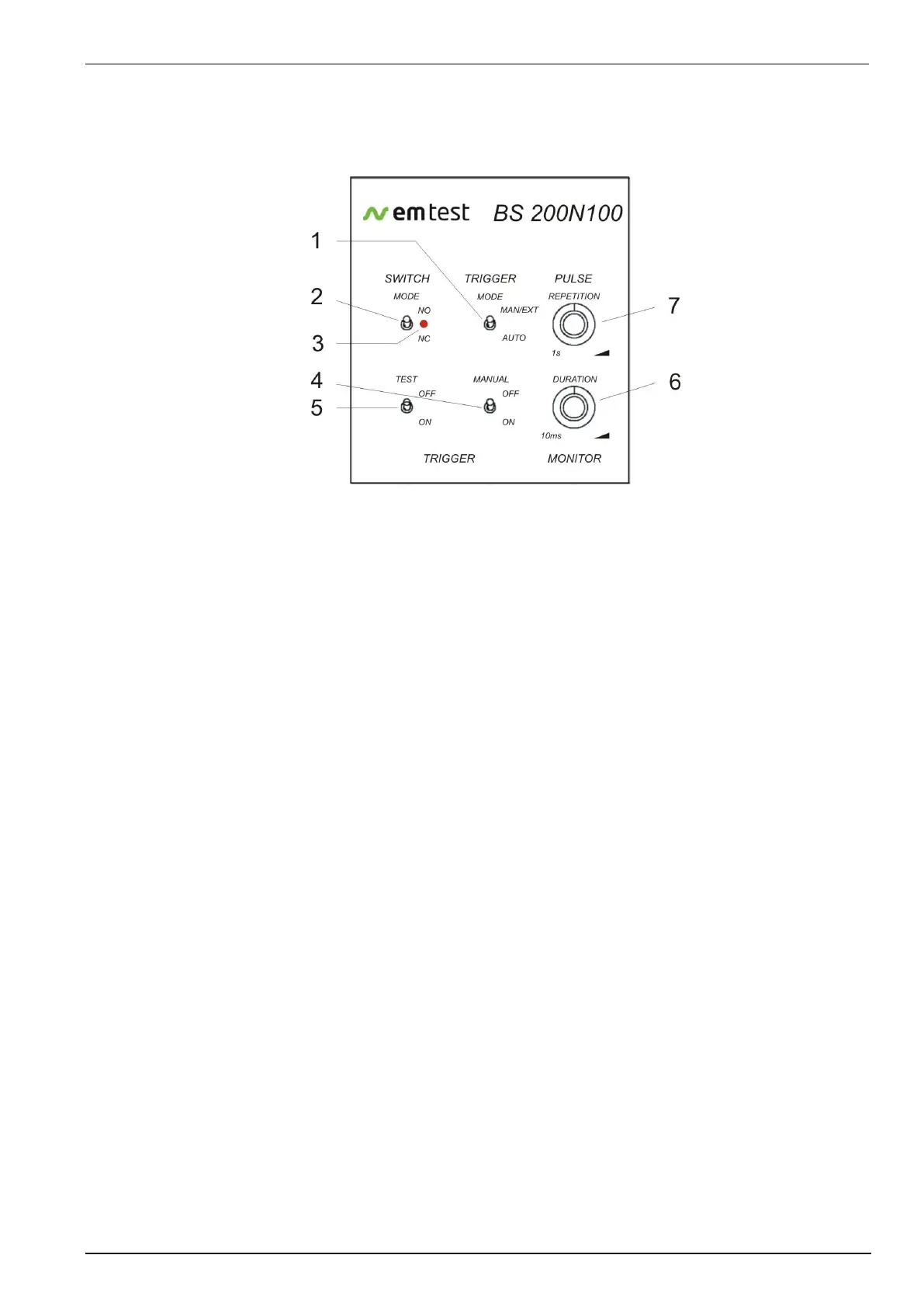

Figure 2.1 : BS 200N100 Top side
1 Switch Trigger mode :Manual or Ext. / Auto
2 Switch operating mode (normal open / closed)
3 LED Switch closed
4 Button MANUAL Trigger
5 Switch TEST ON / OFF
6 Potentiometer Pulse duration 10ms ...>500ms
7 Potentiometer Pulse repetition 1s...>5s
1 Trigger Mode
Trigger release selection of the BS 200N100 switch:
MAN / EXT : The trigger is released by manual operation with the button MANUAL, or
via an external trigger signal at the BNC plug EXT.
AUTO : After switch TEST ON button, the BS 200N100 switch starts to work.
2 Switch Mode
Setting of the switch mode:
- NO : (Normally Open) The switch is normally open and close at each event.
- NC : (Normally Closed) The switch is normally closed and opens at each event.
3 LED Switch closed
The LED is lighted during the switch is closed.
4 Manual Trigger
Select “Manual trigger” mode of the switch. (open and closing time depends the time setting)
- OFF : Initial state
– ON : One switch event is released.
5 TEST
On / Off switch for start the electronic switch:
- OFF : Switch out of service (switch status depends on setting NC or NO).
– ON : Switch in operation (open and closing time depends the time setting).
6 Pulse Duration
Potentiometer for adjust the switch duration.
Range: 10ms ... > 500ms ± 5%
7 Pulse Repetition
Potentiometer for adjust the repetition time.
Range: 1s ... > 10s± 5%
