AMETEK CTS BS 200N100
Operating manual V 1.12 8 / 21
4.

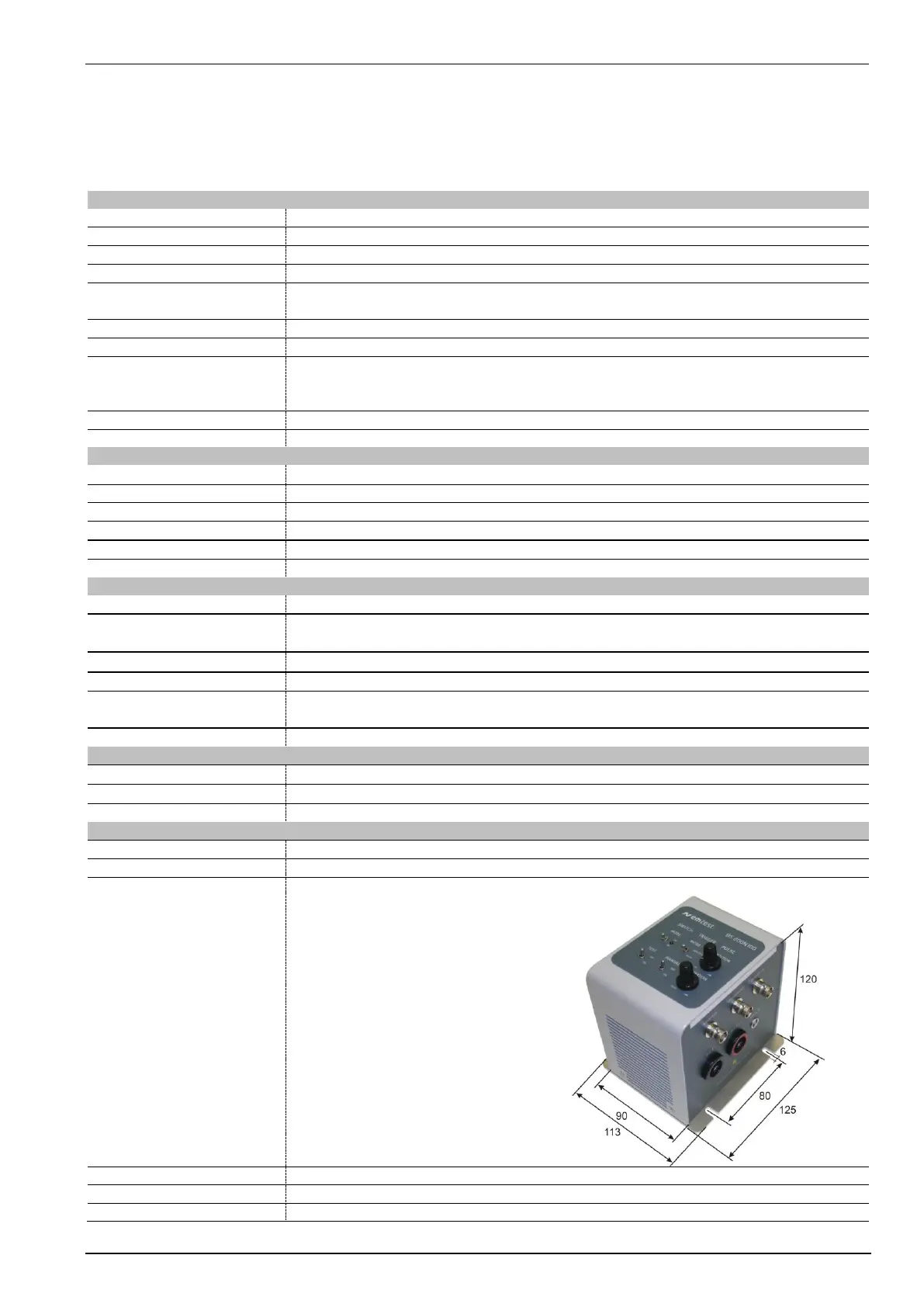

Technical Data
4.1.
Technical data BS 200N100 and BS 200N100.1
Test voltage
Operating voltage
Max. 60 V
Operating current
Max. 100 A continuous
Peak current protection
500 A
Inrush current
400 A for 200 ms
Voltage drop
Less than 0.2 V @ 25 A
Less than 1.2 V @ 100 A
Peak voltage
Typ. 1300 V
Overvoltage protection
By varistor
Overvload protection
short – circuit over temperature protected
switch off after approx. 2 min with 120 A;
switch on after approx.. 45 s cooling time.
Inverse polarity protection
Protected with an additional acoustic signal in case of inverse polarity
Electronic switch
Switching time
300 ns 20% (240 ns – 360 ns) into test load 50H/0.6 
On/Off duration
Min. 10 ms to 500 ms continuously selectable by potentiometer ± 5%
On/Off repetition
Min. 1 s to 10 s continuously selectable by potentiometer ± 5%
Operation
Switch closed indicated by LED
Output noise
< 400 mV peak, (typical 300 mV)
Trigger
Manual
Manual trigger of a single event
Auto
Automatic trigger with min.  0.1 Hz to max. 1 Hz repetition, continuously
selectable by potentiometer
Extern
External trigger 0V, BNC input (Umax. +15 V)
External LV124 Mode
Active when Manual Trigger button is pressed during “Power ON”
Trigger delay typical
Switch off: approx. 10.5 us
Switch on: approx. 94 ms
Measurement
Voltage monitor
BNC output; differential divider 1:200,  5%; Bandwidth 10 MHz
CRO trigger
BNC output,  0 V
General data
Output connector
50mm above GND plane
Connector DUT
6mm high current connector 100 A, 4 mm safety lab connectors 32 A
Dimensions
90 mm x 125 mm x 120 mm (L x W x H);
Weight
1.30 kg
Supply voltage
24V DC via mains supply adapter
