EM TEST UCS 500 Series
Operating Manual V 5.40 97 / 99
14.6.
CNT 516
The CNT 516 is a coupling network for coupling surge pulses to 16 lines via a 25 resistor. Depends from where
the pulse is adapted different waveshapes can be applied to the EUT.
14.6.1.

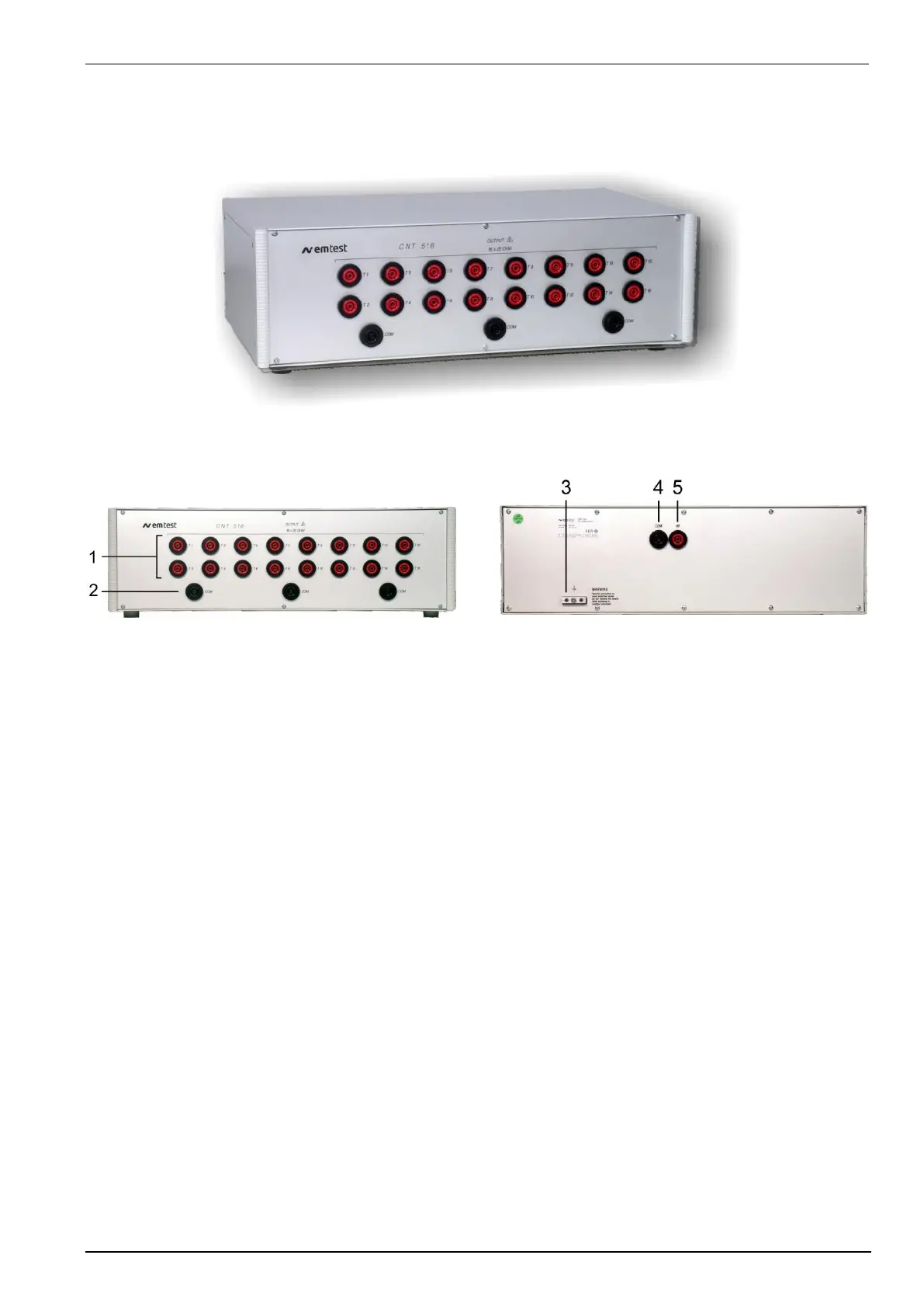

Operating elements
1 HV Output T1...T16
2 COM output
3 Earth bolt
4 COM input
5 HV input
14.6.2.
Technical data:
As per IEC 61000-4-5 and other relevant standards
Pulse 10/700s or 1.2/50s
Open circuit voltage
160V – 7,000V 10%
Serial resistor per output
25  ±10%
Number of parallel HV outputs
16
Number of COM outputs
3
Coupling
Channels
16 channels in parallel T1 to T16 with 25 each
Dimensions
Housing
19“, 3HU, 448x250x143mm
Weight
6.25kg
