13. TAPPING EQUIPMENT
This machine can be equipped with an electric switch for tapping operation clockwise or
counter-clockwise, and the working depth also can be adjusted by the limit switch. (Electric switch
will be installed according to your requirement, and you must pay the cost only.)

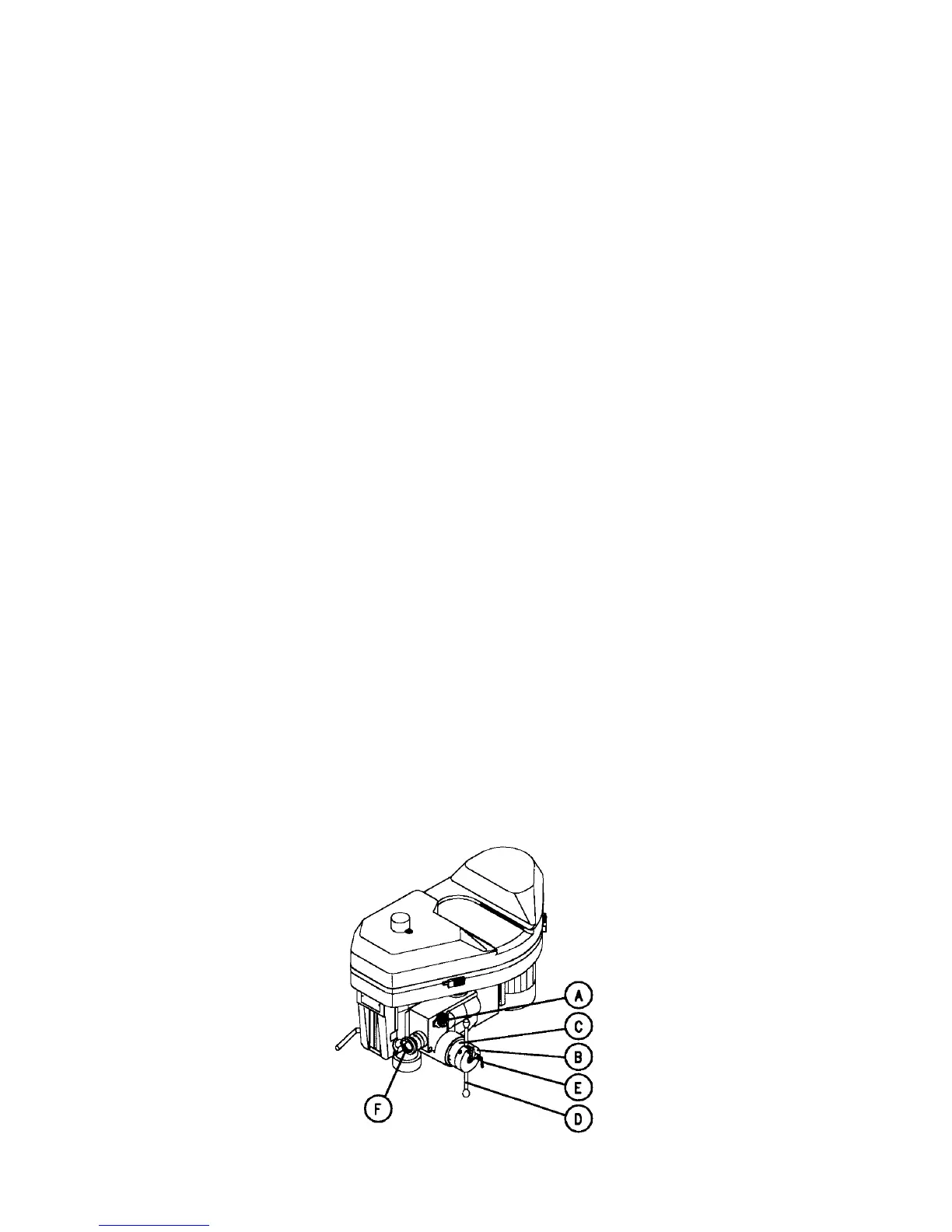

14. SPINDLE POWER DOWN FEED OPERATION
1. Select profitable spindle speed and automatic feeding rate according to cutting condition.
By adjusting the shift dial A you can obtain the feed rate you need.
2. FEEDING DEPTH SETTING:
First release the dial fix-nut E and turn the indicating ring C to the depth needed. then reset
E tightly again.
CAUTION: DO NOT LET FEEDING DEPTH EXCEEDED SPINDLE STROKE.
3. START FEEDING
Start the machine and push out the handle rod D, then the spindle will feed down automatically
Until the end of stroke you set.
4. END OF AUTO FEEDING
The spindle will return to top when reaching the end of stroke you set. when in emergency or
Desire to stop the motion during feeding, push back the handle rod D to its original place.
5. MICRO FEEDING BY MANUAL
Set the shift dial A to "0" postion, and start feeding by turning F handle.
6. To prevent danger, when spindle power down feed is not in use, please lock the handle B well.
