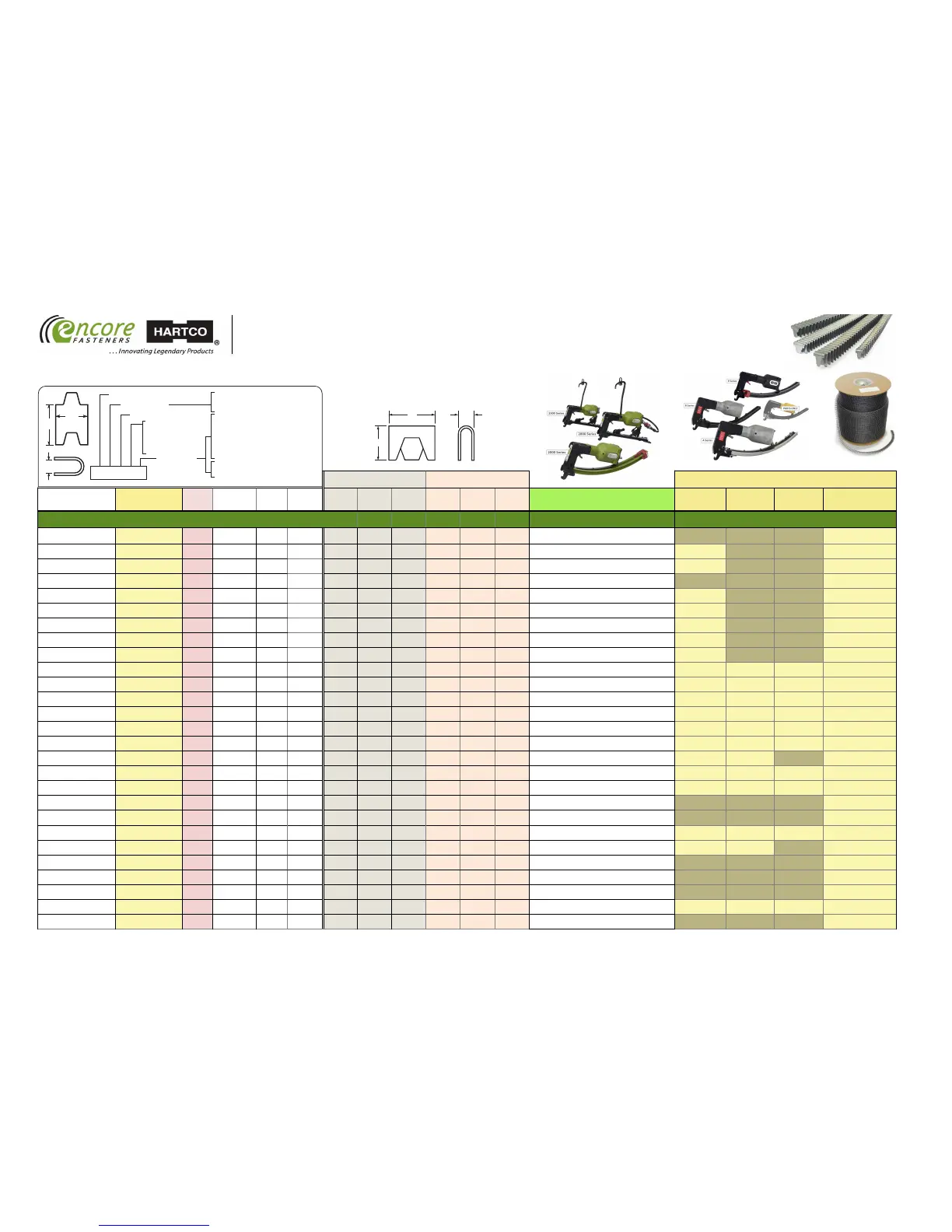

E-Clips & Tool Guide BY CLIPS
Updated 12/10/15
ENCORE E-Clip # HARTCO Clip #
#/STRIP CLIPS/CTN LBS/CTN KGS/CTN HEIGHT WIDTH DEPTH HEIGHT WIDTH DEPTH
CLASSIC
A SERIES
B SERIES
C SERIES
(OBSOLETE)
E SERIES
STRIP
52A14SG – 58 15,834 25 11.4 0.32 0.40 0.20 8.2 10 5.1 EA2000-1234 0 0 0 0 HR2000-1234
64A18SG CLP-15G 47 10,857 24 10.9 0.41 0.43 0.26 10.4 11 6.6 EA2000-1020 0 HR-45i 0 0 HR2000-1020
64A18SG CLP-15G 47 10,857 24 10.9 0.41 0.43 0.26 10.4 11 6.6 EA2000-1929 0 HR-45TN 0 0 HR2000-1929
68H18S CLP-22 47 4,700 22 10.0 0.47 0.86 0.26 11.9 22 6.6 EA2000-6075 0 0 0 0 HR2000-6075
71A16SAL CLP-13AL 47 9,400 22 10.0 0.45 0.43 0.26 11.4 11 6.6 EA2000-1929 0 HR-45TN 0 0 HR2000-1929
71A18S CLP-13 47 9,400 22 10.0 0.45 0.43 0.26 11.4 11 6.6 EA2000-1020 0 HR-45i 0 0 HR2000-1020
71A18S CLP-13 47 9,400 22 10.0 0.45 0.43 0.26 11.4 11 6.6 EA2000-1929 0 HR-45TN 0 0 HR2000-1929
71A18SG CLP-13G 47 9,400 22 10.0 0.45 0.43 0.26 11.4 11 6.6 EA2000-1020 0 HR-45i 0 0 HR2000-1020
71A18SG CLP-13G 47 9,400 22 10.0 0.45 0.43 0.26 11.4 11 6.6 EA2000-1929 0 HR-45TN 0 0 HR2000-1929
72E18S CLP-20 47 6,110 24 10.9 0.47 0.67 0.26 11.9 17 6.6 EA2000-3236 0 HR-68 HR-68B HR-68C-100 HR2000-3236
74F18S CLP-2312 47 5,076 22 10.0 0.49 0.73 0.26 12.4 19 6.6 EA2000-6080 0 HR-65AT HR-65BAT HR-65C-130 HR2000-6080
74H18S CLP-23 47 4,230 22 10.0 0.49 0.86 0.26 12.4 22 6.6 EA2000-6080 0 HR-65AT HR-65BAT HR-65C-130 HR2000-6080
74H18SC CLP-23C 47 4,230 23 10.5 0.49 0.86 0.26 12.4 22 6.6 EA2000-6080 0 HR-65AT HR-65BAT HR-65C-130 HR2000-6080
74H18SG CLP-23G 47 4,230 22 10.0 0.49 0.86 0.26 12.4 22 6.6 EA2000-6080 0 HR-65AT HR-65BAT HR-65C-130 HR2000-6080
78E18S CLP-20L 47 5,499 23 10.5 0.50 0.67 0.26 12.7 17 6.6 EA2000-3236 0 HR-68 HR-68B HR-68C-100 HR2000-3236
80F23S CLP-312 40 4,320 22 10.0 0.51 0.73 0.31 13.0 19 7.9 EA2000-6181 0 HR-66 HR-66B 0 HR2000-6181
80H18S CLP-25 0 4,230 22 10.0 0.52 0.86 0.26 13.2 22 6.6 EA2000-6080 0 HR-65AT HR-65BAT HR-65C-130 HR2000-6080
80H23S CLP-3 40 3,600 22 10.0 0.51 0.86 0.31 13.0 22 7.9 EA2000-6181 0 HR-66 HR-66B HR-66C-110 HR2000-6181
85A22S CLP-33 42 6,720 24 10.9 0.54 0.43 0.29 13.7 11 7.4 EA2000-1022 0 0 0 0 HR2000-1022
88A22S CLP-32 42 6,720 25 11.4 0.55 0.43 0.29 14.0 11 7.4 EA2000-1022 0 0 0 0 HR2000-1022
88F23S CLP-412 40 3,840 23 10.5 0.57 0.73 0.31 14.5 19 7.9 EA2000-6181 0 HR-66 HR-66B HR-66C-110 HR2000-6181
88F23S CLP-412 40 3,840 23 10.5 0.57 0.73 0.31 14.5 19 7.9 EA2000-6185 HR-66 HR-66B HR-66C-110 HR2000-6185
88F23S CLP-72 40 3,840 23 10.5 0.57 0.73 0.31 14.5 19 7.9 EA2000-6185 0 0 0 0 HR2000-6185
88F23SAL CLP-4NAL 0 1,920 8 3.6 0.57 0.73 0.31 14.5 19 7.9 EA2000-4151T 0 0 0 0 HR2000-4151T
88F23SAL CLP-4NAL 0 1,920 8 3.6 0.57 0.73 0.31 14.5 19 7.9 EA2000-6181T 0 0 0 0 HR2000-6181T
88H23S CLP-4 36 3,200 23 10.5 0.57 0.86 0.31 14.5 22 7.9 EA2000-6181 0 HR-66 HR-66B HR-66C-110 HR2000-6181
88H23SAL CLP-4AL 36 3,200 8 3.6 0.57 0.86 0.31 14.5 22 7.9 EA2000-6181T 0 0 0 0 HR2000-6181T
ECLIPSER MODELS
Encore and Hartco tool equivalents, pack/ship configurations, and
clips to use with each
HARTCO MODELS
INCHES
MILLIMETERS
3485 Commercial Avenue Voice: (224) 723-5524
Northbrook, IL 60062 USA Fax: (224) 723-5526
info@encorefasteners.com
www.encorehartco.com
W D
H
A-H
ZZ
XX
S–STRIPS
R–ROLLS
B–BULK
CLP–STRIPS
CCP–ROLLS
(BLANK) = COLD ROLLED STEEL 1006-1010
A = ALUMINUM
C = CUSHIONED (PAPER LINING INSIDE)
G = GALVANIZED
L = 4 MIL PVC VINYL COATING (INSIDE)
S = STAINLESS STEEL (430)
XX = LENGTH in 100
ths
/inch
A-H = CLIP WIDTH
ZZ
= OPENING in 100
ths
/inch
TYPE OF PACKAGING
74 H 18 S G
A =
7
/16" (11.0 mm)
E =
11
/16" (17.5 mm)
F =
3
/4" (19.0 mm)
H =
7
/8" (22.0 mm)
(BLANK) or P = POLYCORD
T = TAPED COLLATION D = DETENT
MATERIAL
DESIGNATIONS

Encore 2000 series Specifications

General

Brand	Encore
Model	2000 series
Category	Power Tool
Language	English
