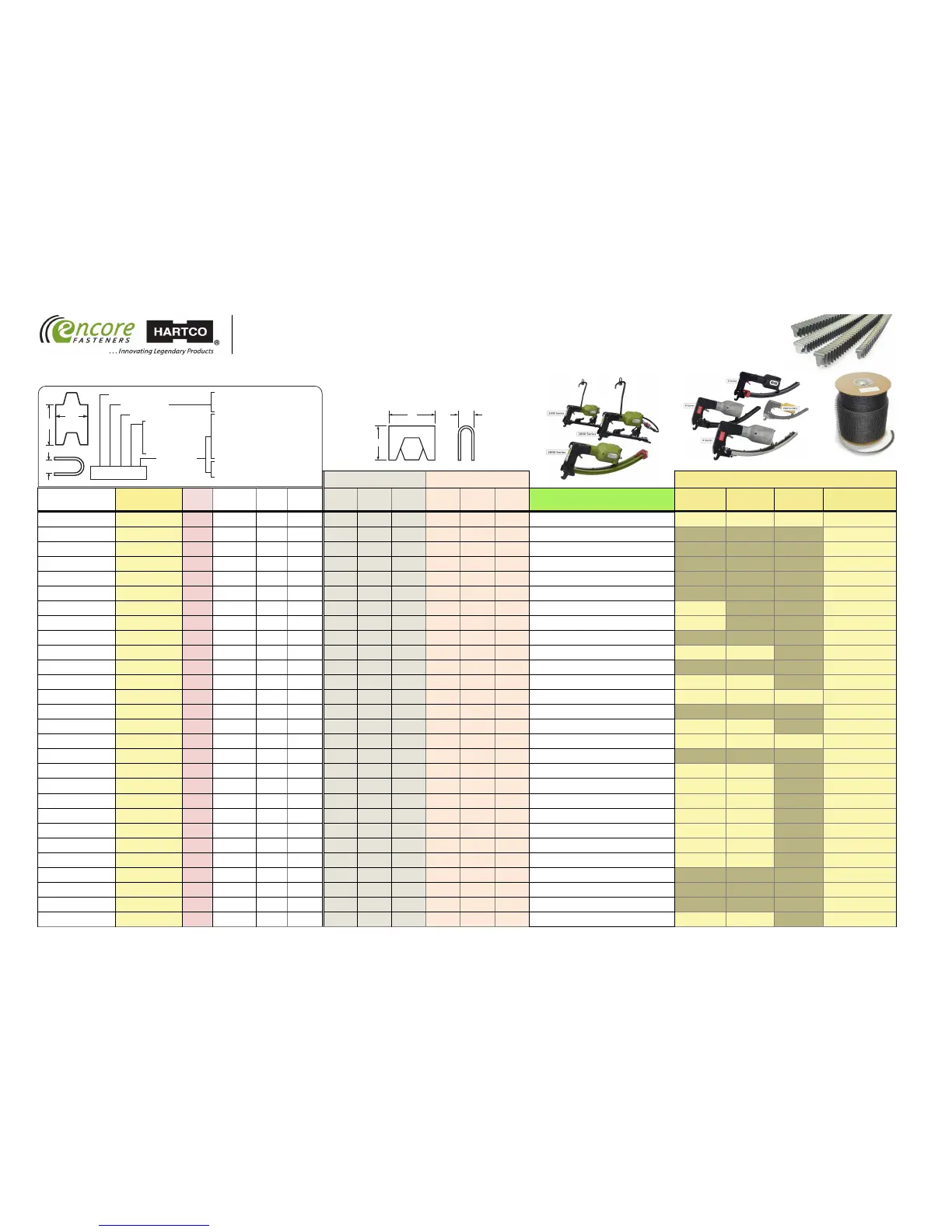

Encore 2000 series User Manual

Page 2 of 3 Rev. 3/24/16
E-Clips & Tool Guide BY CLIPS
Updated 12/10/15
ENCORE E-Clip # HARTCO Clip #
#/STRIP CLIPS/CTN LBS/CTN KGS/CTN HEIGHT WIDTH DEPTH HEIGHT WIDTH DEPTH
CLASSIC
A SERIES
B SERIES
C SERIES
(OBSOLETE)
E SERIES
ECLIPSER MODELS
Encore and Hartco tool equivalents, pack/ship configurations, and
clips to use with each
HARTCO MODELS
INCHES
MILLIMETERS
3485 Commercial Avenue Voice: (224) 723-5524
Northbrook, IL 60062 USA Fax: (224) 723-5526
info@encorefasteners.com
www.encorehartco.com
W D
H
A-H
ZZ
XX
S–STRIPS
R–ROLLS
B–BULK
CLP–STRIPS
CCP–ROLLS
(BLANK) = COLD ROLLED STEEL 1006-1010
A = ALUMINUM
C = CUSHIONED (PAPER LINING INSIDE)
G = GALVANIZED
L = 4 MIL PVC VINYL COATING (INSIDE)
S = STAINLESS STEEL (430)
XX = LENGTH in 100
ths
/inch
A-H = CLIP WIDTH
ZZ
= OPENING in 100
ths
/inch
TYPE OF PACKAGING
74 H 18 S G
A =
7
/16" (11.0 mm)
E =
11
/16" (17.5 mm)
F =
3
/4" (19.0 mm)
H =
7
/8" (22.0 mm)
(BLANK) or P = POLYCORD
T = TAPED COLLATION D = DETENT
MATERIAL
DESIGNATIONS
88H23SC CLP-4C 36 3,200 24 10.9 0.57 0.86 0.31 14.5 22 7.9 EA2000-6181 0 HR-66 HR-66B HR-66C-110 HR2000-6181
90A29SG – 0 5,220 24 10.9 0.50 0.43 0.41 12.7 11 10.4 EA2000-1533* 0 0 0 0 HR2000-1533*
90F18S CLP-24N 47 3,948 24 10.9 0.62 0.73 0.26 15.7 19 6.6 EA2000-6082 0 0 0 0 HR2000-6082
90F18SG CLP-2412G 47 3,948 24 10.9 0.62 0.73 0.26 15.7 19 6.6 EA2000-6082 0 0 0 0 HR2000-6082
90H18S CLP-24 47 3,290 24 10.9 0.62 0.86 0.26 15.7 22 6.6 EA2000-6082 0 0 0 0 HR2000-6082
90H18SG CLP-24G 47 3,290 24 10.9 0.62 0.86 0.26 15.7 22 6.6 EA2000-6082 0 0 0 0 HR2000-6082
91A23S CLP-14 40 5,600 23 10.5 0.56 0.43 0.31 14.2 11 7.9 EA2000-1121 0 HR-46 0 0 HR2000-1121
96A23S CLP-9 0 5,600 24 10.9 0.59 0.43 0.31 15.0 11 7.9 EA2000-1121 0 HR-46 0 0 HR2000-1121
n/a WA-39 0 0 0 0.0 0.00 0.00 0.00 0.0 0 0.0 EA2000-6791T 0 0 0 0 HR2000-6791T
101F23SAL CLP-34NAL 40 3,360 9 4.1 0.68 0.73 0.31 17.3 19 7.9 EA2000-4157T 0 HR-85SLN HR-85SBLN 0 HR2000-4157T
101F23SAL CLP-34NAL 40 3,360 9 4.1 0.68 0.73 0.31 17.3 19 7.9 EA2000-4151T 0 0 0 0 HR2000-4151T
101F23SS4 CLP-34NS430 40 3,360 22 10.0 0.68 0.73 0.31 17.3 19 7.9 EA2000-4157T 0 HR-85SLN HR-85SBLN 0 HR2000-4157T
101H23S CLP-34 40 2,800 24 10.9 0.68 0.86 0.31 17.3 22 7.9 EA2000-6183 0 HR-85 HR-85B HR-85C-100 HR2000-6183
101H23SAL CLP-34AL 40 2,800 9 4.1 0.68 0.86 0.31 17.3 22 7.9 EA2000-6183T 0 0 0 0 HR2000-6183T
101H23SAL CLP-34AL 40 2,800 9 4.1 0.68 0.86 0.31 17.3 22 7.9 EA2000-6187T 0 HR-85SL HR-85SBL 0 HR2000-6187T
101H23SC CLP-34C 40 2,800 25 11.4 0.68 0.86 0.31 17.3 22 7.9 EA2000-6183 0 HR-85 HR-85B HR-85C-100 HR2000-6183
110A18S – 47 6,580 18 8.2 0.68 0.43 0.26 17.3 11 6.6 EA2000-1024 0 0 0 0 HR2000-1024
110E25SS4 CLP-35430 37 2,886 18 8.2 0.75 0.67 0.33 19.1 17 8.4 EA2000-6189 0 HR-85S HR-85SB 0 HR2000-6189
110E25SS430 CLP-35S434 0 2,886 23 10.5 0.75 0.67 0.33 19.1 17 8.4 EA2000-4139 0 HR-85SN HR-85BSN 0 HR2000-4139
110E25SS430 (half) CLP-35S434 0 1,443 13 5.7 0.75 0.67 0.33 19.1 17 8.4 EA2000-4139 0 HR-85SN HR-85BSN 0 HR2000-4139
110F25SAL CLP-36NAL 0 2,664 8 3.6 0.72 0.73 0.33 18.3 19 8.4 EA2000-4157T 0 HR-85SLN HR-85SBLN 0 HR2000-4157T
110H25S CLP-36 36 2,220 18 8.2 0.72 0.86 0.33 18.3 22 8.4 EA2000-6189 0 HR-85S HR-85SB 0 HR2000-6189
110H25SAL CLP-36AL 36 2,220 8 3.6 0.72 0.86 0.33 18.3 22 8.4 EA2000-6187T 0 HR-85SL HR-85SBL 0 HR2000-6187T
110H25SC CLP-36C 36 2,220 19 8.6 0.72 0.86 0.33 18.3 22 8.4 EA2000-6189 0 HR-85S HR-85SB 0 HR2000-6189
125A38SS CLP-61 25 3,000 26 11.8 0.69 0.43 0.50 17.5 11 12.7 EA2000-4528* 0 0 0 0 HR2000-4528*
132A38SS CLP-64 0 3,000 28 12.7 0.72 0.43 0.50 18.3 11 12.7 EA2000-4528* 0 0 0 0 HR2000-4528*
132F27SAL WA-40 0 1,920 8 3.6 0.86 0.73 0.38 21.8 19 9.5 EA2000-6791T 0 0 0 0 HR2000-6791T
135H31S CLP-38 31 1,550 16 7.3 0.86 0.86 0.38 21.8 22 9.5 EA2000-6788 0 HR-88 HR-88B 0 HR2000-6788
