1. Technical specifications
Place the Octagon 200CL on a stable laboratory bench, since otherwise unpleasant
vibrations will be transmitted. Being placed on a level surface ensures symmetrical
distribution of the sample over the sieves, during operation.

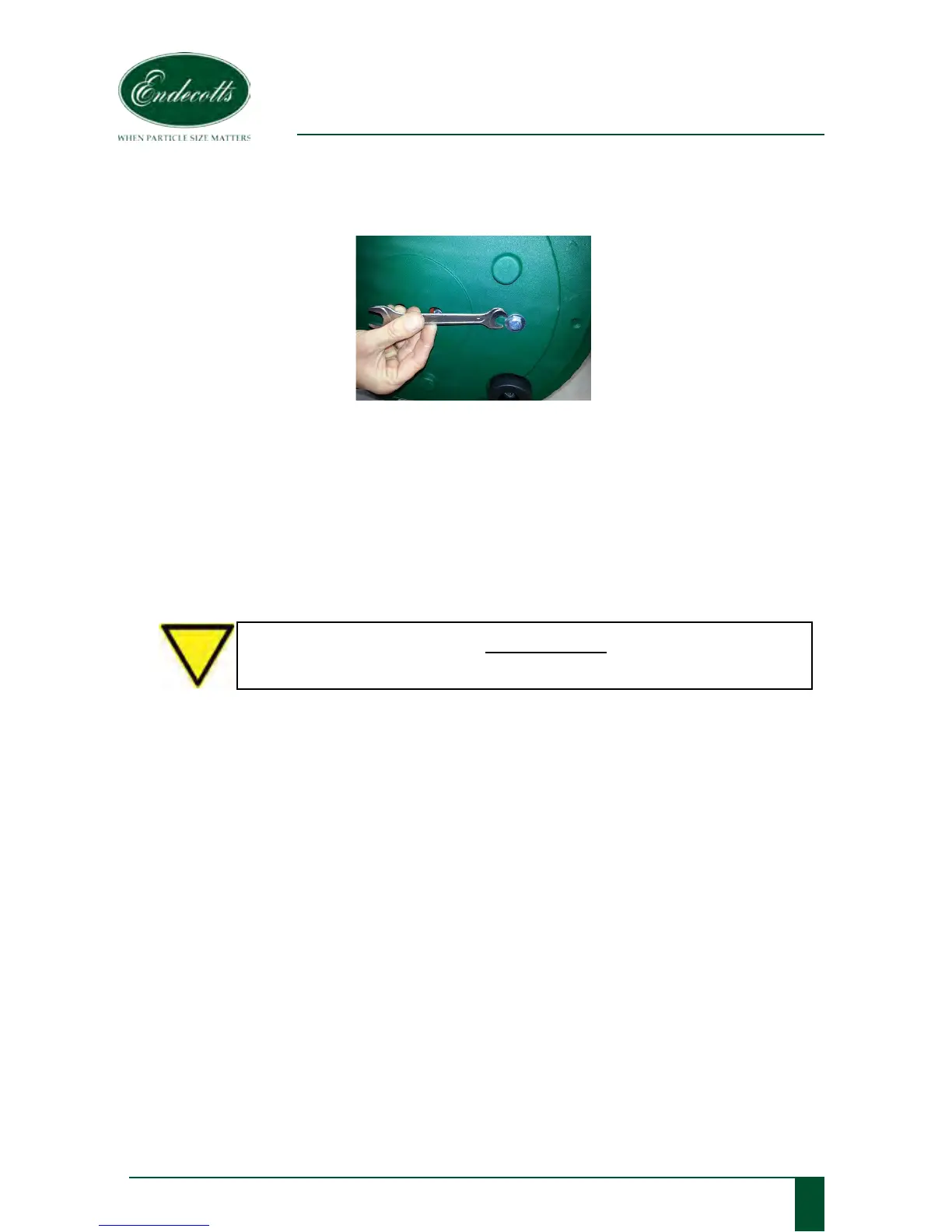

• Unscrew the two hexagon screws (transit bolts) on the bottom of the sieve shaker with
an open ended spanner until the sieve plate is movable.
• Keep hexagon screws (transit bolts) for possible transport at a later date.
If the machine is operated with the transit bolts
, or is transported without
transit bolts, mechanical components may become damaged.
Reusing transit bolts
• Dismount the clamping unit.
• Screw the hexagon screws (transit bolts) into the two holes on the bottom of the sieve
shaker and tighten with open ended spanner until the sieve plate is no longer movable.
Mount sieve clamping unit
Fit one M12 nut onto each clamp rod selected for use, then screw the pair of clamp rods into the
location plate and tighten the locknuts.
