ELECTRICAL REQUIREMENTS
To ensure you will have an opportunity to use your system soon after delivery, it is very important that the required electrical service
has been installed. Unless otherwise stipulated by your dealer, THIS IS YOUR RESPONSIBILITY.
IMPORTANT: All electrical circuits must be installed by a qualified, licensed electrician.
All X and E models require a 60 amp, single phase, 230 volt circuit breaker, R model require a 30 amp 230 bolt breaker in the main
electrical service panel.
All
Aquatic Fitness System
must be wired in accordance with applicable local and national electrical codes, all electrical
work must be done by a licensed electrician.
NOTE: Watkins Manufacturing Corporation REQUIRES THE USE OF A SUBPANEL TO SUPPLY POWER AND PROTECT THE
SYSTEM. A licensed electrician should install a four-w ire electrical service (two line voltages, one neutral, one ground) from the
main electrical service panel to the subpanel, and from the sub-panel to the system per the appropriate wiring diagram as illustrated
below.
The grounding conductor must be at least #6 AWG. Your electrician should mount the subpanel in the vicinity of the system but it
should not be closer than five (5) feet from the system water edge (NEC 680-38 to 41-A-3).
INSTALLATION NOTE: After the system has been installed by the dealer’s delivery crew, your electrician can connect the conduit
from the subpanel to the
Aquatic Fitness System
Control Box and then complete the wiring connections in the control
box.
NOTE: Complete step-by-step Installation and Wiring Instructions for all 230 volt ENDLESS POOLS models are included in the
Owner’s Manual and with each sub-panel, which can be obtained from your dealer.
WARNING: Removing or bypassing the GFCI breakers in the subpanel at any time w ill result in an unsafe system and will void the
warranty.
WIRE SPECIFICATION NOTE: Long electrical runs may require a larger gauge feed wire than stated. We recommend that a
maximum voltage drop of 3% be used when calculating the larger wire size.

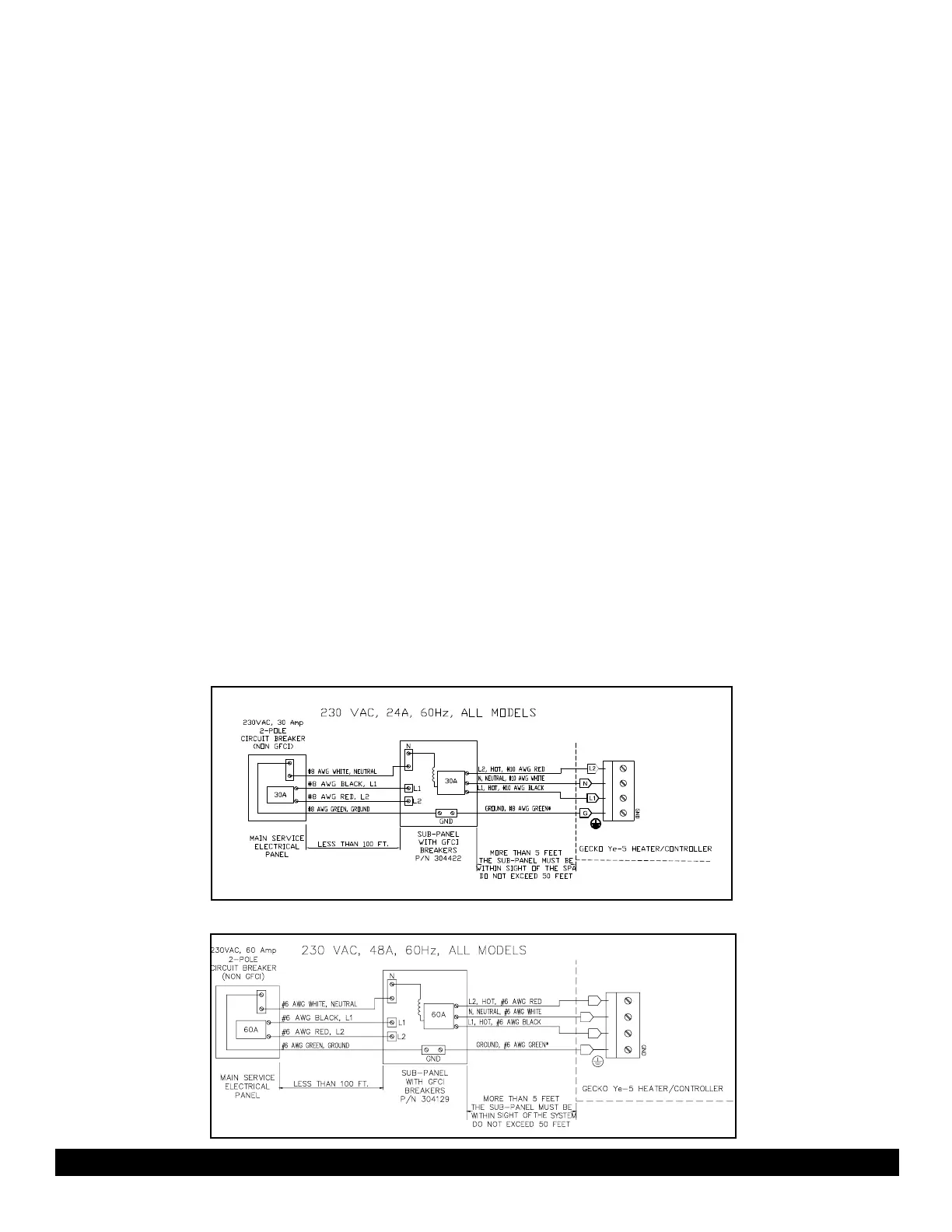

Refer to the Wiring Diagrams below for the electrical requirements this model.
When connecting the supply conduit, use a liquid-tight flex conduit fitting.
L1
N
G
L2
X500
Page 7
R200 / R220 / R500
To Next Page
