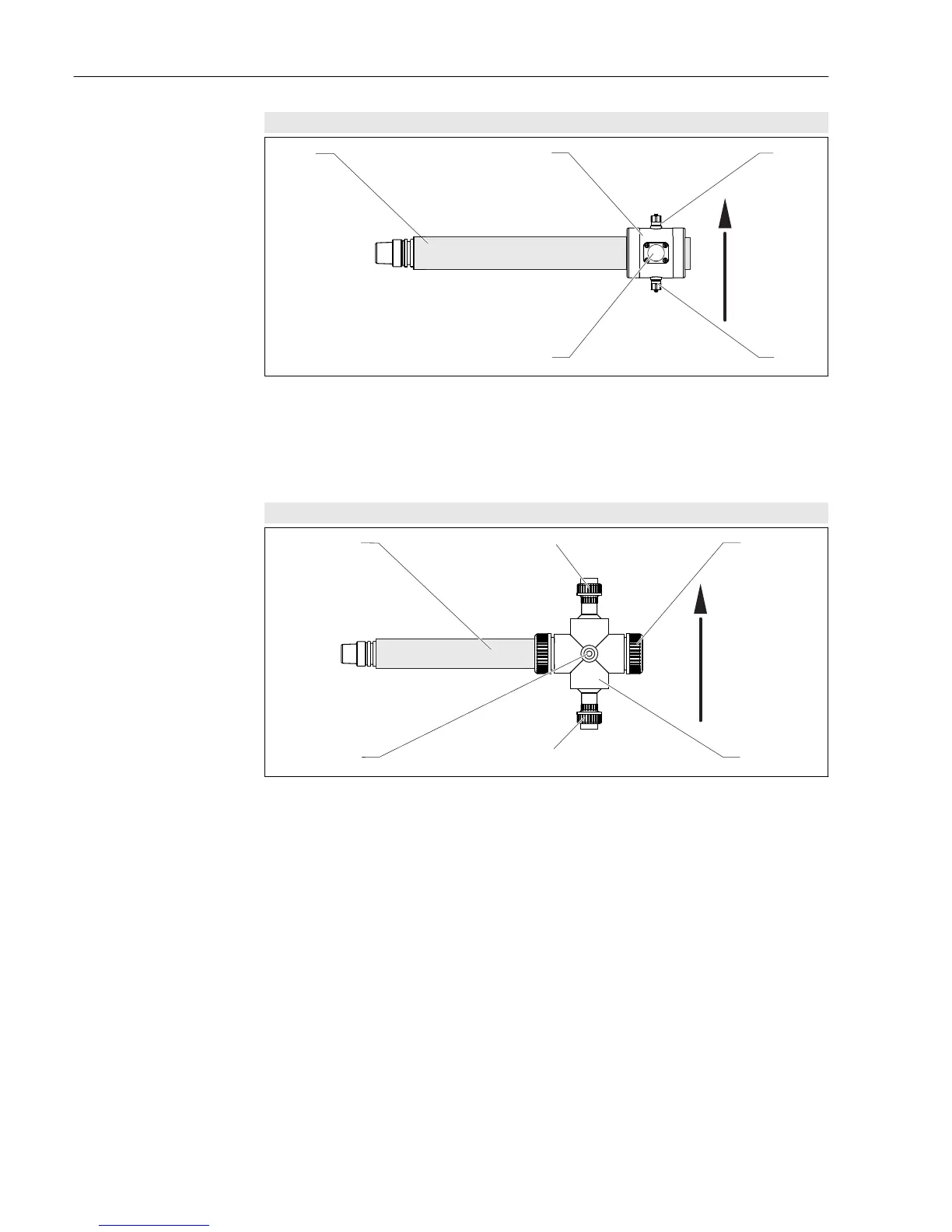

Flow assembly CAS51D 2-40 mm for small sample volumes
1
2
3
4
5
A0013266
 8 Horizontally, in flow assembly, arrow points in the direction of flow
1 Sensor
2 Flow assembly
3 Medium outlet
4 Medium inflow
5 Window, required for aligning the sensor
Flowfit CYA251 flow assembly
1 2
3
4
5
6
A0032901
 9 Horizontally, in flow assembly CYA251, arrow points in the direction of flow
1 Sensor
2 Medium outlet
3 Cap
4 Flow assembly
5 Medium inflow
6 Rinse connection
5.2 Mounting the sensor
5.2.1 Installation instructions
To ensure correct measurement, the windows in the cuvette must be free from any
sedimentation. The best way to ensure this is through the use of a cleaning unit
(accessory) operated by compressed air.
‣
For horizontal orientations:
Mount the sensor in such a way that the cuvette gap is located at the side.
