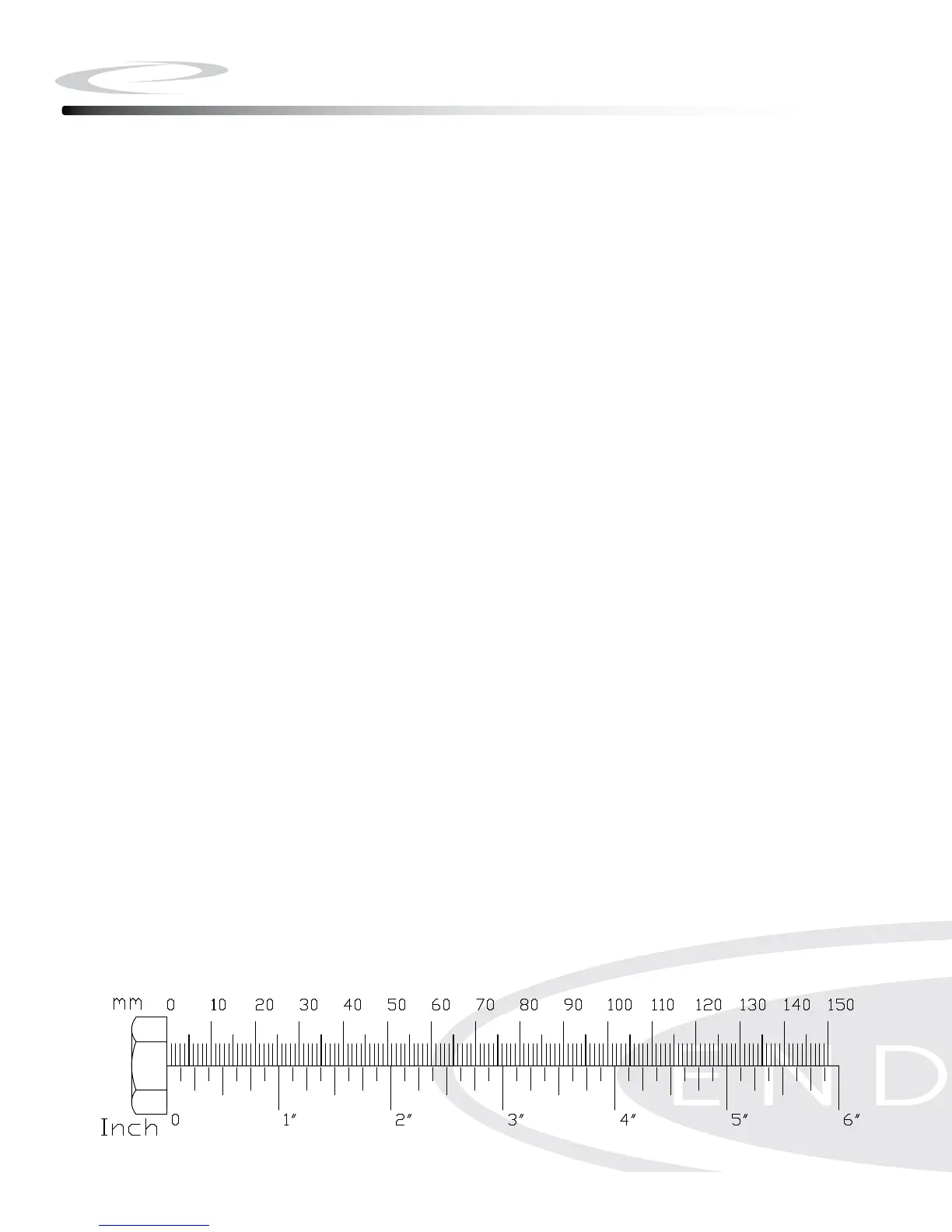

Be careful to assemble all components
in the sequence they are presented.
A. Attach Right Upright (#34) to Frame Base using:
One Retaining Plate (#98)
Three 3/8”-16 x 3” Button Head Socket Bolts (#144)
Three 3/8” Lock Washers (#117)
Three 3/8” Flat Washers (#116)
Note: The right upright (34) is with preinstalled lower computer cable A. To install
uprights on the frame base, special care must be taken not to pinch the cable
between the upright and frame base.
B. Attach Left Upright (#33) to Frame Base using:
One Retaining Plate (#98)
Three 3/8”-16 x 3” Button Head Socket Bolts (#144)
Three 3/8” Lock Washers (#117)
Three 3/8” Flat Washers (#116)
C. Attach Motor Base Caps (#26 &#27) to Frame Base using
Four M5x12mm Phillips Head Screws (#134)
Step 1
