D. CTM Controller® 1600 setup

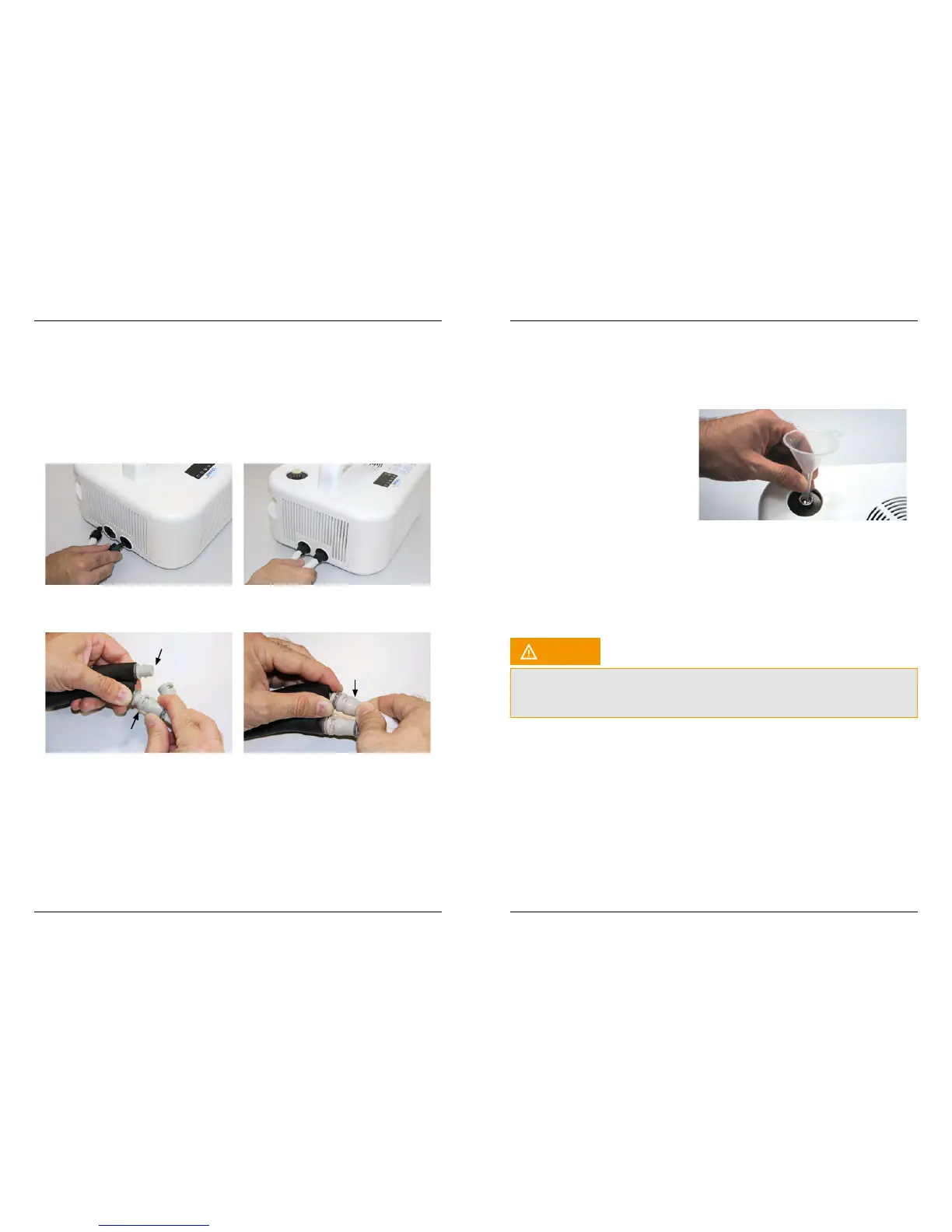

Connecting the tube and the CTM Exchanger®
The CTM Controller® 1600 is supplied with a tube set and a CTM Exchanger® is needed for its use.
Connect the two black plastic plugs of the tube set to the control unit, as shown below. You hear a
click when the plug has properly locked into place. To remove the tube, hold the black plug and
pull it out. Please do not disconnect the plug with pulling the white tube.
Then connect the CTM Exchanger® to the tube by inserting both the CTM Exchanger® plugs into
the two sockets of the tube. Twist both halves of the connection to lock it.
A large number of specic, anatomically shaped CTM Exchangers® are available.
See section H. for further information or visit:
www.ener-c.com/ctm-exchanger
CTM Exchanger®
tube end
End of the tube
Insert plug of the
CTM Exchanger® into
tube socket and turn
to connect the tubes
Fill the control unit of the CTM Controller® 1600 with water
Before use, the control unit must be lled
with clean tap water or distilled water.
In order to ll the device completely, remove
the cover of the water tank and ll the tank
with approx. 300 ml of water with a funnel.
The water level in the tank can be read out
through the window of the water tank on the
side of the device. Avoid the tank overowing
(2/3 to 3/4 full is ideal). When the tank is full,
close it again using the cover.
As soon as the tank has been lled, connect the mains cable to a suitable socket and press the ON/OFF
button to switch the device on. The control unit then pumps the water through the tube and the
CTM Exchanger®, which may lead to the water level in the tank falling, while the tube and CTM Exchanger®
are lling with liquid. If the water level drops below half, remove the cover and slowly ll with water until
the level is again between half-full and full. Then fasten the cover again.
NOTE: The device does not function when the “Low water level” light is on. When this indicator lights up,
add more water as described above and then press the ON/OFF button to restart the device.
Do NOT immerse the control unit in water to ll the tank.
Do NOT pour or spill any water into the control unit’s ventilation openings.
Do NOT drink any water from the control unit.
Before using the device, make sure that the cover is closed so as to prevent the water from overowing.
If the CTM Exchanger® is located in a higher position than the control unit, this may lead to the tank
overowing.
Caution
