USER MANUAL
MPD-1007E

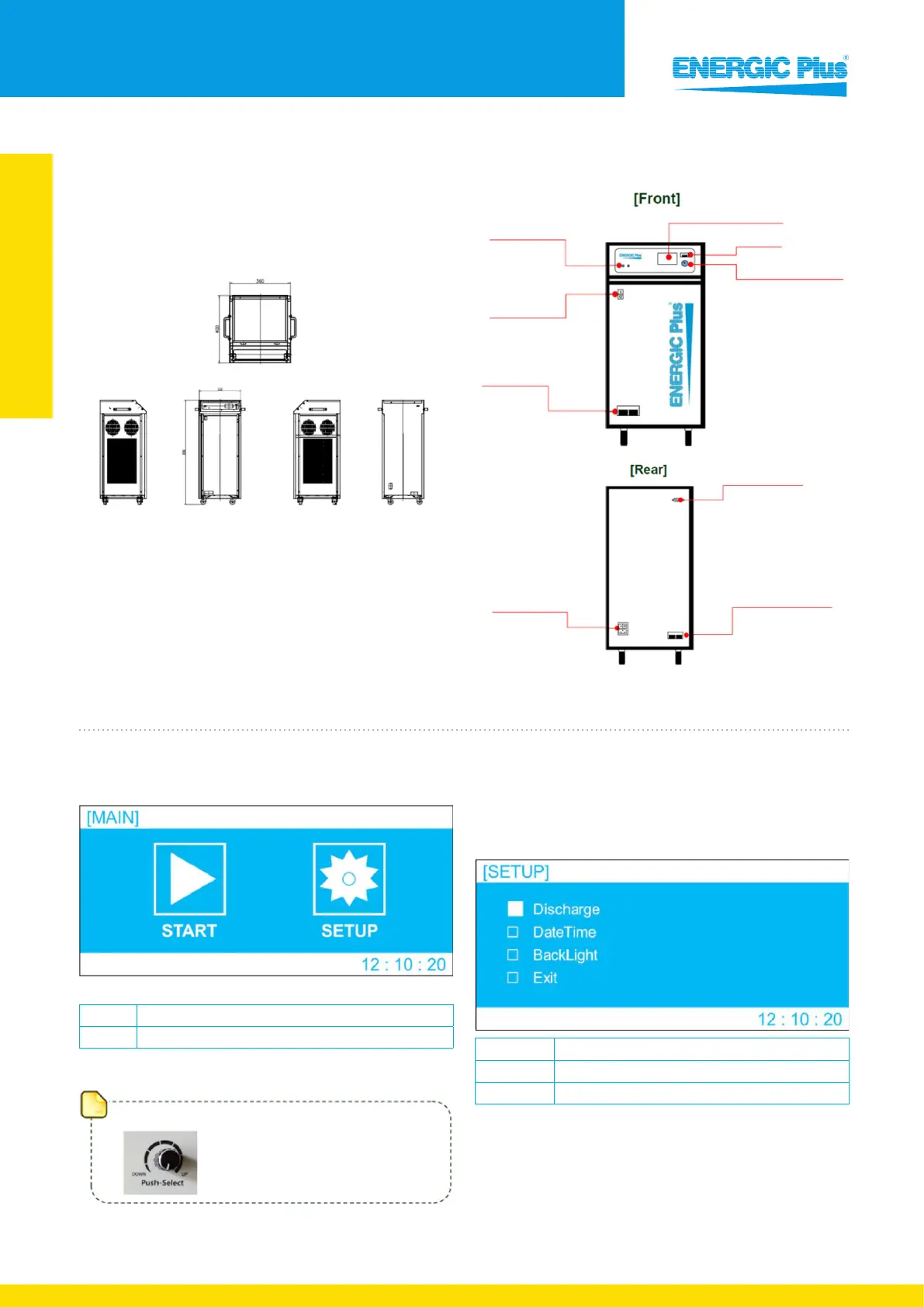

Dimensions and weight of the battery discharger
H: 899 mm
W: 360 mm
D: 400 mm
Weight: 45 kg
External features
4. Operation
4.1. ‘Stand-alone’ operation
Main menu display
Start Start discharging according to the set current settings.
Setup Change settings: discharging value, time and backlight
How to use input interface
• Rotate toggle switch † menu select
• Push † enter
How to use input interface
4.1.1 Setup menu
Change the discharge values and other settings like date,
time and backlight.
Setup menu display
Discharge Change discharge values
Date Time Time setup
Back Light LCD backlight setup
Replus output connector
(not used in stand-alone mode)
RS-232 D-sub port
AC input &
main power on/off
LCD display
LED indicator
(power, discharging)
Power on/off
Battery connector
USB port
Rotary jog dial switch
Push - enter
