6
USER MANUAL
MPD-1007E
4.2. Discharging report
When discharging with the MPD-1007E machine connected
to the Replus, the data log files will be saved on the Replus
machine. When using this machine as a stand-alone device,
you need to plug in a USB flash drive to store the data.
The name of the log file will contain the date and time
when the process was initiated.
When the USB flash drive is not properly connected, the
data log files will be lost.
To create a report, the freely available software ‘Integrated
Monitor’ must be used. If you do not have this software,
please contact us.
4.3. Synchronisation with Replus machines
When synchronised with the Replus, the MPD-1007E can be
controlled either with the toggle switch from the discharger
or via the touchscreen of the Replus.
Discharge parameters will appear on the screen of the
Replus. The discharger only needs to be switched on in case
you’re going to use the discharge mode.

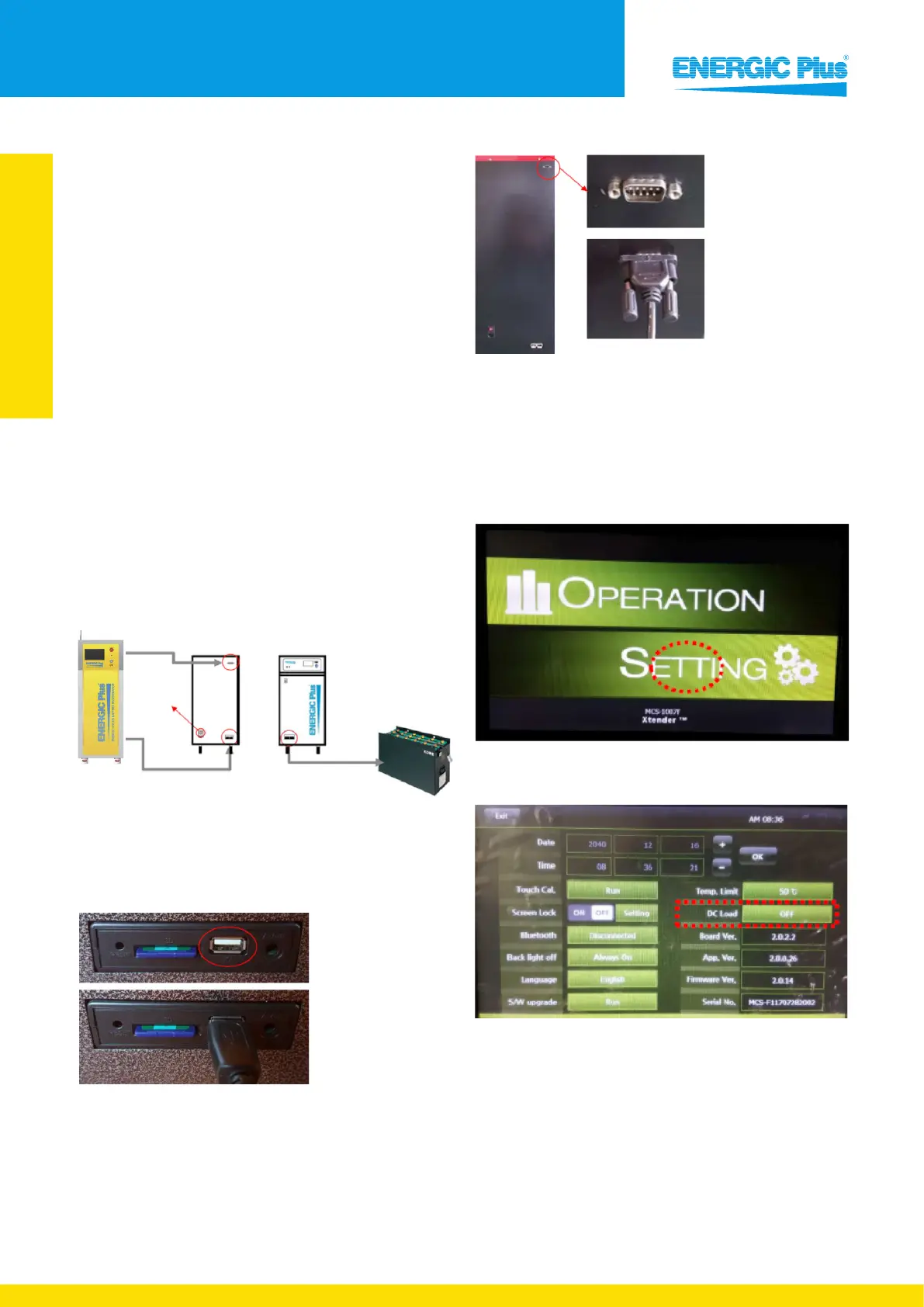

Wiring diagram
When connecting the machines, you should use the RS-232
communication cable that is provided.
Connect the MPD-1007E to the Replus regenerator by
plugging the USB cable in the USB port on the back of the
Replus regenerator.
Connect the other end of the cable to the RS-232 port on
the back of the MPD-1007E machine.
Replus firmware upgrade
Upgrade the software on your Replus regenerator to be
able to connect to the MPD-1007E. Please contact us to
receive the latest firmware update and procedure or visit
our website.
Once you have updated the software, go to Settings and
make sure the DC Load is switched to ‘On’.
The operation of your Replus will remain the same when the discharger is
attached, except for the discharge current, which can now be set up to 200 A.
FrontRearRS-232 Cable
AC Power
Input
MCS output cable
SB175 connector
Battery connection
SB350 connector
Replus regenerator MPD-1007E
