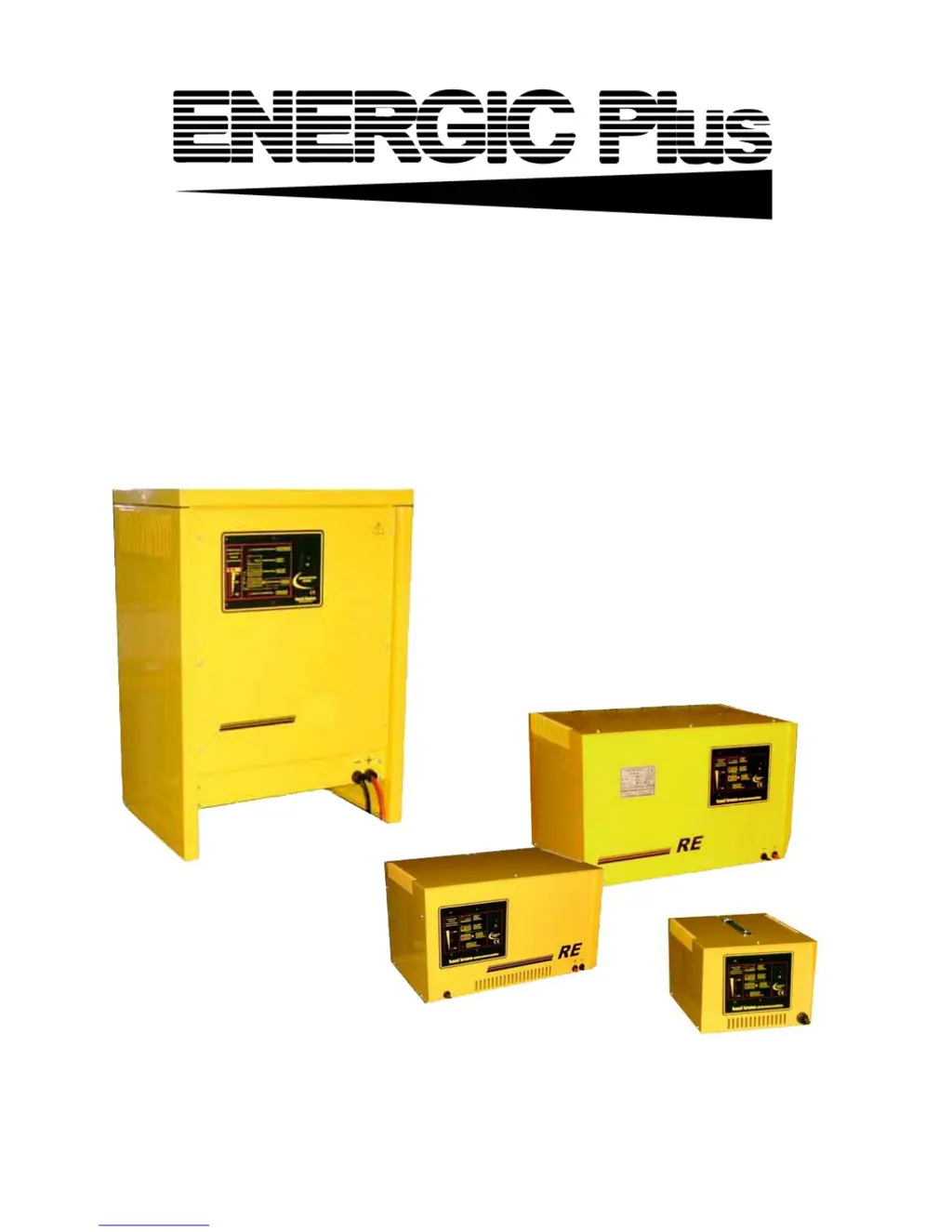

Energic Plus RE Series

Questions and Answers

W
William LeeAug 14, 2025
What to do if Energic Plus Battery Charger does not react and LED is OFF?
- R
  richashleyAug 14, 2025
  If your Energic Plus Battery Charger doesn't react when connected to the battery and the LED panel remains off, there are several possible causes. First, check the battery connectors and harness to ensure they are properly connected. It's also possible that the charger has been connected to the forklift motor connector instead of the battery, so disconnect the forklift motor and connect the battery. Also verify the polarities of the charger, connectors, and battery, as reversed output cables can cause this issue and potentially blow the output fuse. Inspect the board connectors (green) for bad connections. In some cases, the control board itself may be faulty and need replacement.
M
Marissa WilliamsAug 17, 2025
What to do if my Energic Plus RE Battery Charger smells hot?
- J
  Jill DickersonAug 17, 2025
  If your Energic Plus Battery Charger smells hot, consider these potential causes. Ensure the charger is installed in a proper location with adequate ventilation. Remove any objects obstructing the ventilation slots. Check and tighten all power wirings if they are bad or loose. Also, wrong AC input settings can cause overheating, so adjust the AC input settings to a higher voltage if needed. In some cases, the transformer may be burned and require replacement.
T
tracyjamesAug 20, 2025
What to do if all the control LEDs flash alternately on Energic Plus RE Battery Charger?
- E
  ecarrAug 21, 2025
  If all the control LEDs on your Energic Plus Battery Charger are flashing alternately, the issue could be due to absent AC input. Check the AC input voltage on each phase, AC input connections, and the AC disconnect switch and fuses. Another possible cause is a bad contactor, which would need to be replaced.
K
kimberly29Aug 25, 2025
What to do if 'EMERGENCY STOP' and minimum current LEDs flash alternately on Energic Plus Battery Charger?
- F
  fbaileyAug 25, 2025
  If the “EMERGENCY STOP” LED and the minimum current LED are flashing alternately on your Energic Plus Battery Charger, the output fuse may be blown. Replace the output fuse and adjust the AC input setting.
V
valexanderAug 27, 2025
Why is my Energic Plus RE too noisy?
- M
  Miss Kaitlyn WallaceAug 27, 2025
  If your Energic Plus Battery Charger is excessively noisy, it could be due to a bad contactor, in which case you should replace the contactor and freewheeling diode. Another possible cause is one or more shorted diodes, requiring replacement of the rectifier.
R
rmorrisonAug 30, 2025
Why Energic Plus RE output current is too low?
- M
  Melanie AndersonAug 30, 2025
  If the output current of your Energic Plus Battery Charger is too low, it might be due to wrong AC input settings. Adjust the AC input settings to a lower voltage. Another possible cause is one absent AC phase, so check the AC input voltage on each phase. Also, one or more blown diodes or a bad contactor can cause low current, requiring replacement of the rectifier or contactor, respectively.
T
Thomas LopezSep 3, 2025
Why Energic Plus RE Battery Charger output current is too high?
- D
  Daniel BooneSep 3, 2025
  If the output current of your Energic Plus Battery Charger is too high, it could be due to wrong AC input settings. Try adjusting the AC input settings to a higher voltage. It is also possible that one or more cells in the battery are shorted, requiring battery repair.
A
Alison MerrittSep 6, 2025
Why is the battery temperature too high when using Energic Plus Battery Charger?
- L
  Laura ColonSep 6, 2025
  If the battery temperature is too high while using your Energic Plus Battery Charger, several factors could be responsible. Wrong AC input settings might be the cause, so adjust the AC input settings to a higher voltage. High battery power demand may also lead to overheating, consider purchasing a bigger Ah battery. Ensure sufficient cool down time before and after charging. If the automatic stop function isn't working, check and replace the board and/or contactor.
M
morriskaylaSep 9, 2025
Why does my battery have low S.G. or doesn't last a full shift with Energic Plus RE?
- H
  hernandezgabriellaSep 9, 2025
  If your battery has a low specific gravity (S.G.) or doesn't last a full shift when using the Energic Plus Battery Charger, it could be due to wrong AC input settings, so adjust the AC input settings to a lower voltage. Another possible reason is that the battery capacity is too low, requiring a battery replacement.

Summary

2. Safety Instructions and Warnings

General Safety Precautions

Observe safety rules and take precautions to prevent injury or equipment damage.

Shock Prevention

Learn about electrical hazards and grounding to prevent fatal shocks.

Installation and Grounding

Electrical equipment must be installed per codes; ensure proper grounding.

Charging Leads and Battery Terminals

Inspect leads for damage; avoid touching terminals during operation.

Service and Maintenance Safety

Shut off power before servicing; disconnect battery and check capacitors.

Burn and Bodily Injury Prevention

Fire and Explosion Prevention

4. Installation

General Installation Precautions

AC Input Voltage Adjustment - Cabinets S, A, B

AC Input Voltage Adjustment - Cabinet C

5. How to Use the Charger [Cabinets S, A, B]

Start of Charge

Charge Cycle

Equalization

6. How to Use the Charger [Cabinet C]

Preliminary Controls

LED Control Panel Overview

7. Trouble Shooting Guide

8. Trouble Shooting Guide

Energic Plus RE Series Specifications

General

Output Voltage	12V DC
Battery Type	Lead Acid (AGM, Gel, Wet)
Protection	Overcharge, Short Circuit, Reverse Polarity
Charging Time	Varies depending on battery capacity
Compatibility	12V Lead Acid Batteries
