[0203072TSS] TSS-D Battery Chargers r1
User's Manual
AUTO EQUALIZE + REFRESH
The AUTO EQUALIZE + REFRESH function is totally managed by the MTL2 microcontroller.
It can be enabled by moving the internal DIPSWITCH #4 to position ON (see the description of
the programmation dipswitches in the previous paragraphs).
The AUTOMATIC EQUALIZE + REFRESH is ENABLED by default.
If the charge has been completed normally, the charger will add 5 short additional charge
cycles of 30 minutes, with 14 hours and 30 minutes interval between each charge.

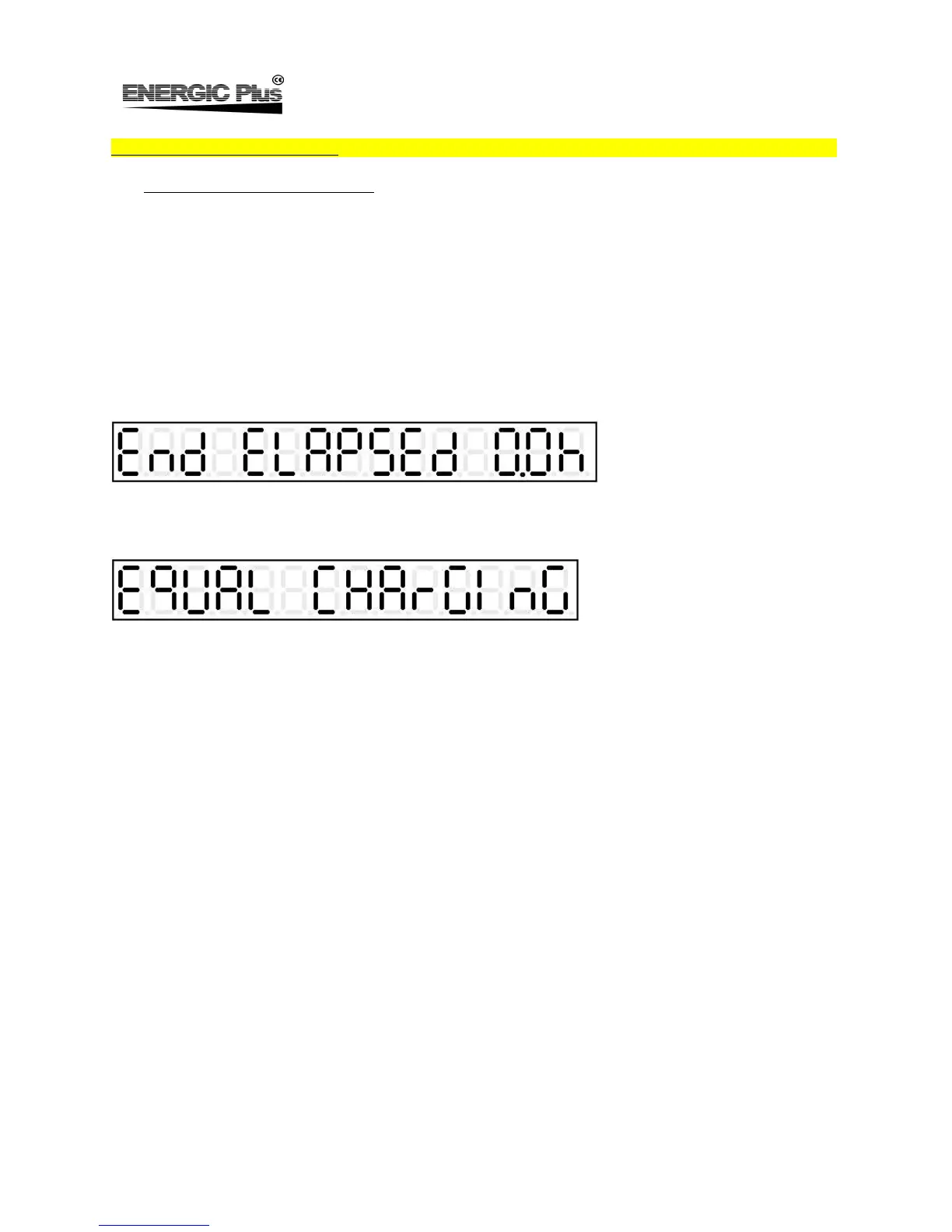

During the time interval between each equalization charge, the display will show the scrolling
message: “End Elapsed x.x h”:
When the equalization chargers are in progress, the display will show the scrolling message:
“ equalization charge”:
followed by the indication of the charge current.
__________________________________________________________________________________________________________________________________________________
Page 17/19
