Enertech EAV Series - EAV Outdoor Unit and EME;EMD Indoor Module Communication Wires

Enertech Global 
EAV - EME/EMD Rev. A Models
Installaon and Operaons Manual
24
Enertech Global
AV/EM Models IOM
NOTE: USE THE UNINSULATED
CONDUCTOR FOR THIS CONNECTION.
Outdoor Unit Control Board
NOTE: USE THE 2 INSULATED
CONDUCTORS FOR A & B

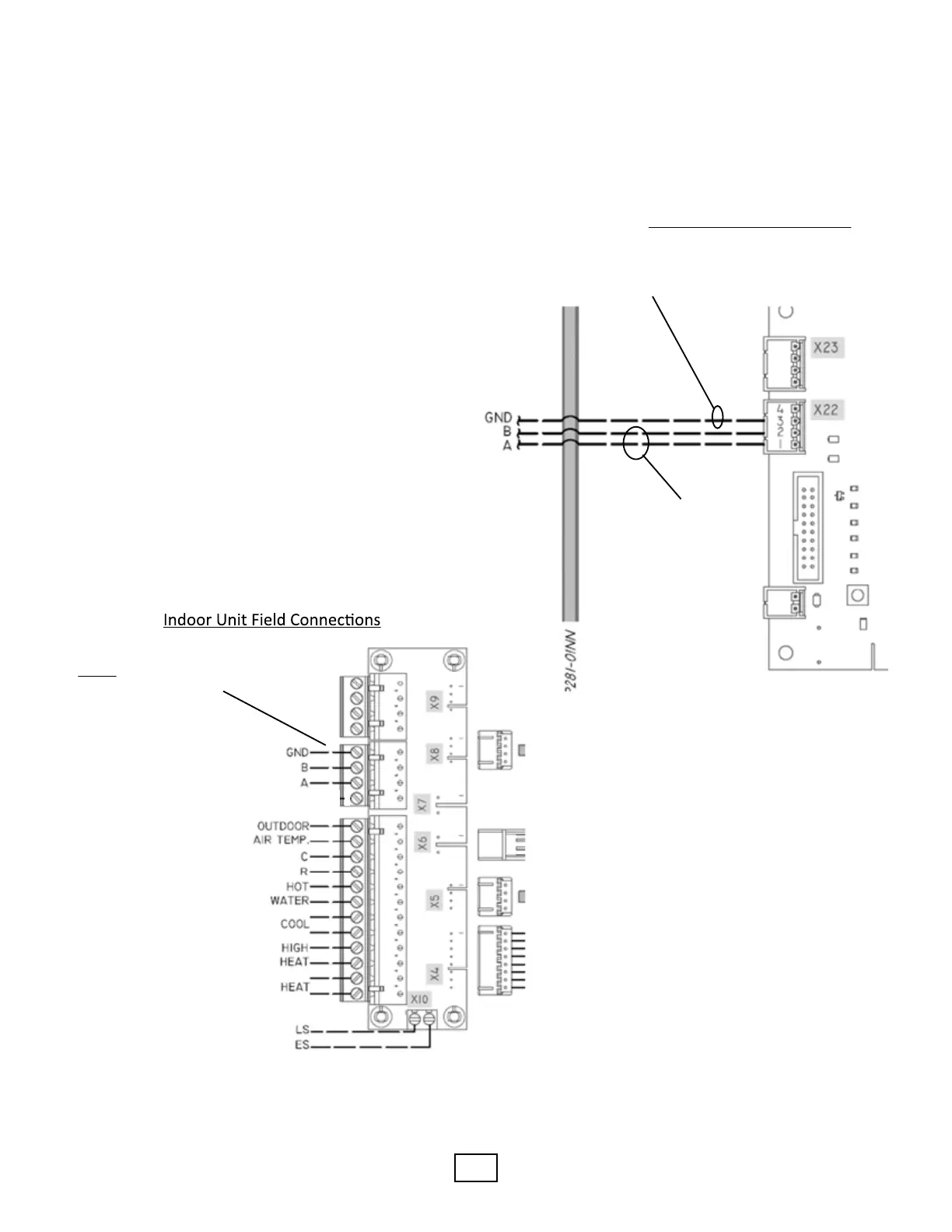

Communica ons Wiring Between
Indoor and Outdoor Units
NOTE:
USE THE UNINSULATED
CONDUCTOR FOR GND
CONNECTION



