Solution 2.3 Installation and Operation Manual 33
7.3 Floor protector
If the stove is to be installed on top of a combustible floor, it must be guarded by a non combustible
material as shown on figure 1.3 (see the dotted line area).
FLOOR PROTECTOR*
CANADA USA
G
8”(203 mm) – Note 1 N/A (Canada only)
H
8” (203 mm) N/A (Canada only)
I
18”’ (457 mm)
From door opening
16” (406 mm)
From door opening
J
N/A (USA only) 8” (203 mm)
M
8” (203 mm) N/A (Canada only)
N
N/A (USA only) Note 2
*Steel with a minimum thickness of 0.015” (0.38 mm) or ceramic tiles sealed together with
grout. No protection is required if the unit is installed on a non-combustible floor (ex.: concrete).
Note 1: The floor protection at the back of the stove is limited to the stove’s required clearance
if such clearance is smaller than 8 inches (203 mm).
Note 2: Only required under the horizontal section of the connector. Must exceed each side of
the connector by at least 2 inches (51 mm).

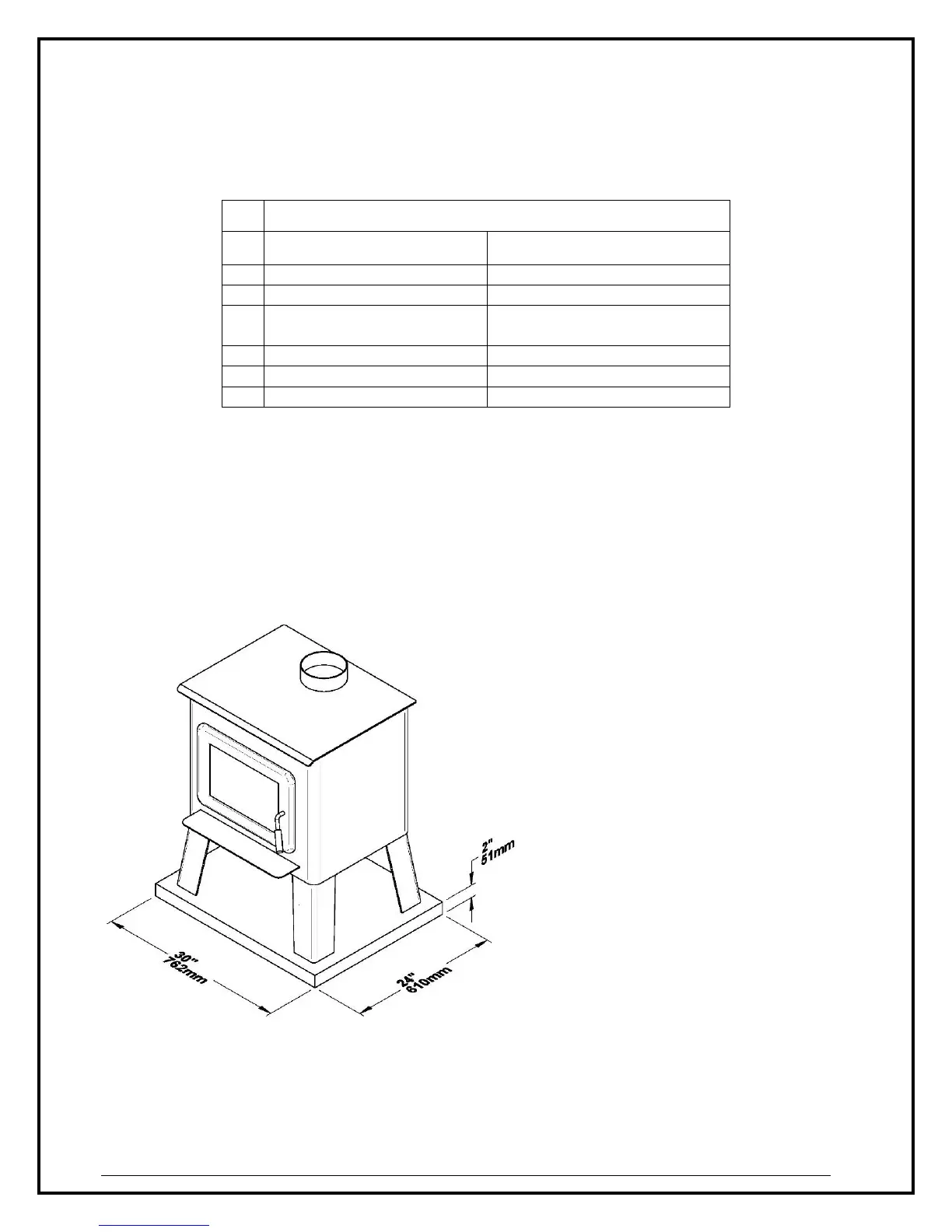

Important Note: Addition required to
the floor protection when the stove is
installed in a mobile home and
assembled on legs version only:
In addition to meeting the minimum size
of the floor protection, the stove must be
placed on a podium having a maximum
dimension of 30” (762 mm) x 24” (610
mm) and a minimum height of 2” (51
mm). This podium can be constructed of
combustible materials as long as it is
covered of non-combustible materials.
See figure beside.
