48 Solution 2.3 Installation and Operation Manual
Appendix 3: Installing Trims
Your freestanding Enerzone wood stove is equipped with decorative u-shaped trims. See
installation instructions below:

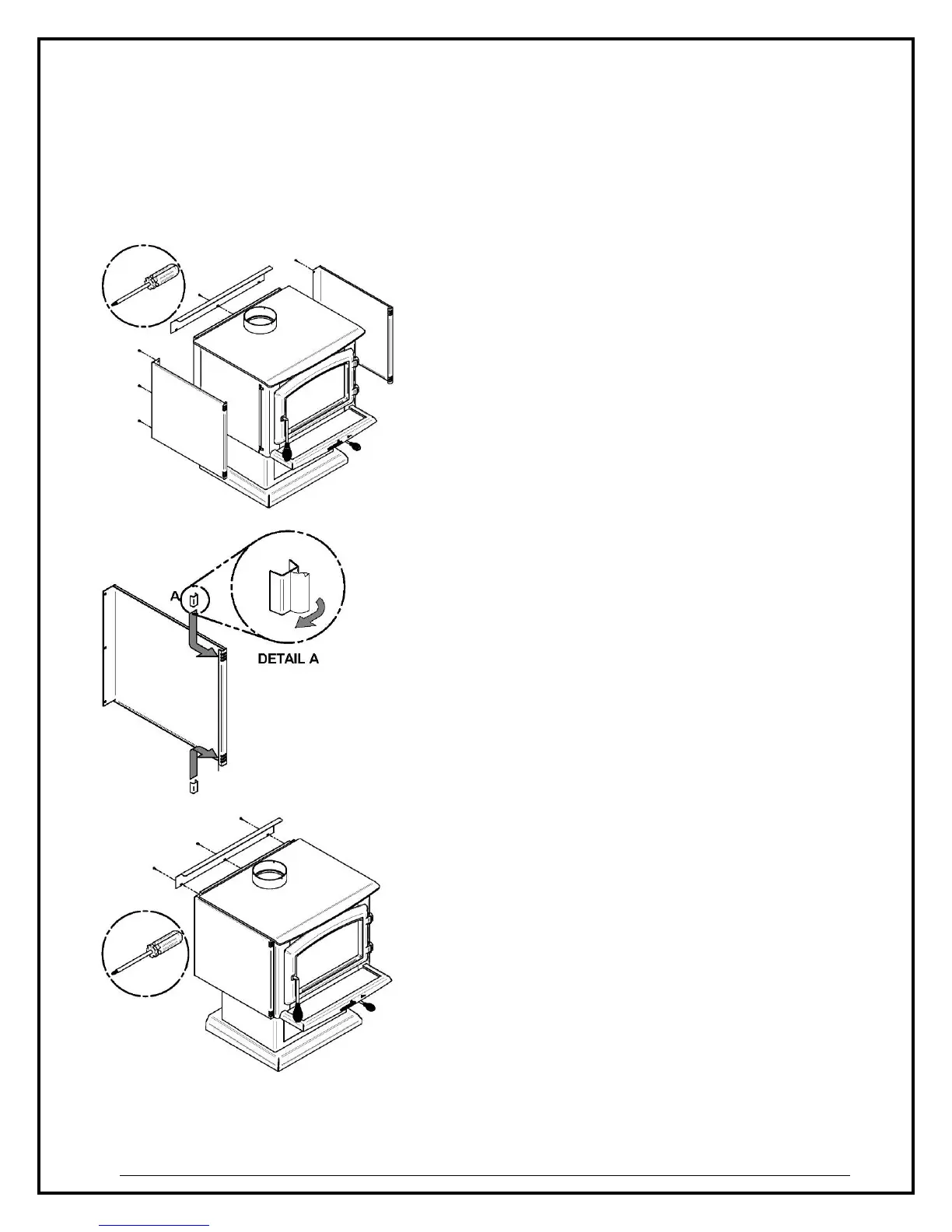

1- Remove the 7 screws that secure the side
panels and the rear top air deflector.
2- Slide the panels towards the front to release
them from the front brackets.
3- Choose between the gold or nickel “U”
shaped decorative insert and remove the
protection film before their installation.
4- Align the decorative inserts with the top and
bottom slots of the front edge of the panels.
Then push the decorative inserts to clip
them into place. See detail A
5- Slide the panels into the front brackets and
reinstall the panels and top air deflector
using the screws removed in step 1.
