Engcon MIG2 CAN - Install Break-out Cable; Connect MIG2 CAN to Break-out Cable

4 Installation

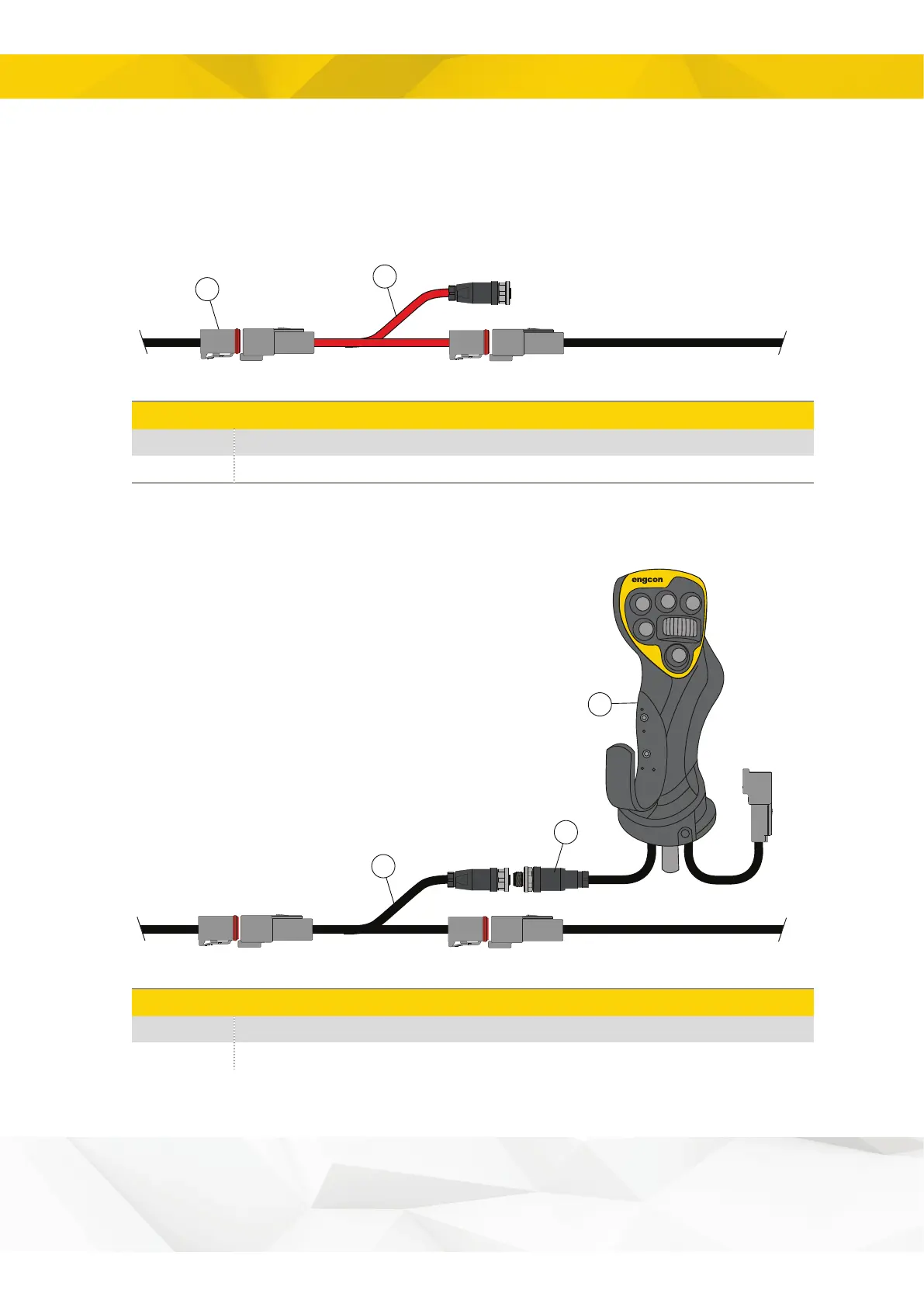

4.4.1. Install the break-out cable 8001833
1. Disconnect the TILT ROTATOR CABIN 2 connectors on the machine’s factory-fitted
joystick cabling.
2. Connect the break-out cable between the disconnected connectors.
2
1
Position
Description
1
TILT ROTATOR CABIN 2
2
Cable Breakout MIG2 CAN - Doosan
4.5. Connect MIG2 CAN to cable 8001833
3
1
2
Position
Description
1
Cable Breakout MIG2 CAN - Doosan
2
M12 kabel från MIG2-handtag
