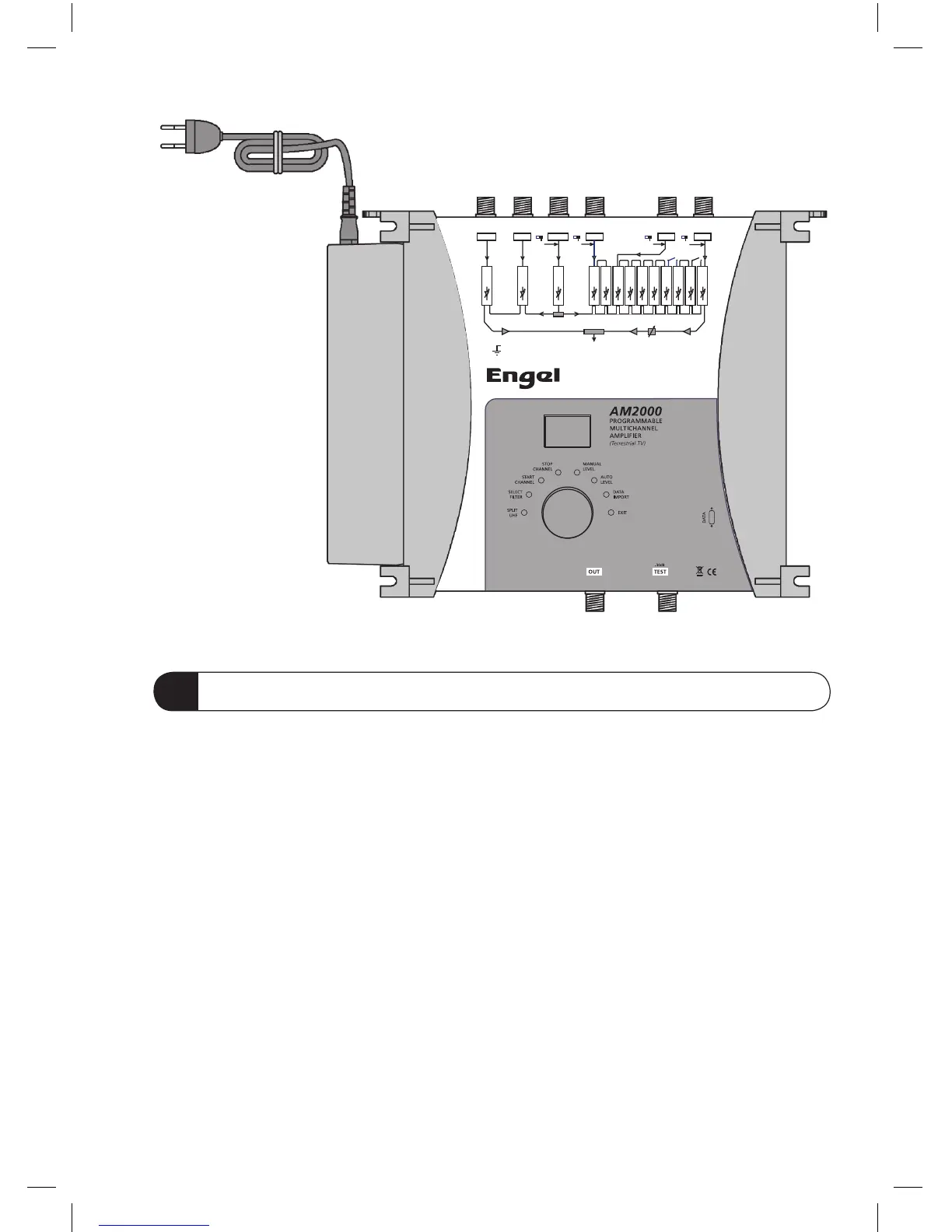

1 FEATURES
- Designed for both digital and analogue channels.
- 6 inputs : B I-II / B III / VHF-UHF and 3 UHF inputs splitted over 10 UHF programmable
clusters.
- Each cluster can have 1 to 7 channels bandwidth.
- Easy programming by using one rotary / push button viewed on 2 digits display and LEDs
for each cluster and each input.
- ‘COPY’ function in order to transfer all settlements from one unit to another reducing time
of installation.
- High selectivity lters.
- Low noise gure and high gain split band ampliers.
- High power 123 dBµV.
- Automatic leveling of signal or manual with 30 dB attenuator with 1 dB step for accurate
equalization.
- Selectable remote power on VHF-UHF and UHF inputs.
- -30 dB Test output.
1 2 3 4 5 6 7 8 9 10
Bd I / II
Bd III
V/UHF
UHF 1 UHF 2
UHF 3
24 V 24 V 24 V24 V
SPLIT UHF
V
U
GND
OUT
UHF
VHF
MANUAL
LEVEL
