Engine G15 - Throttle;Clutch Assembly (Rev. E1.00+)

Replacement Parts
Throttle/Clutch Assembly
4
4-7 G1597doc091819 Replacement Parts
G15

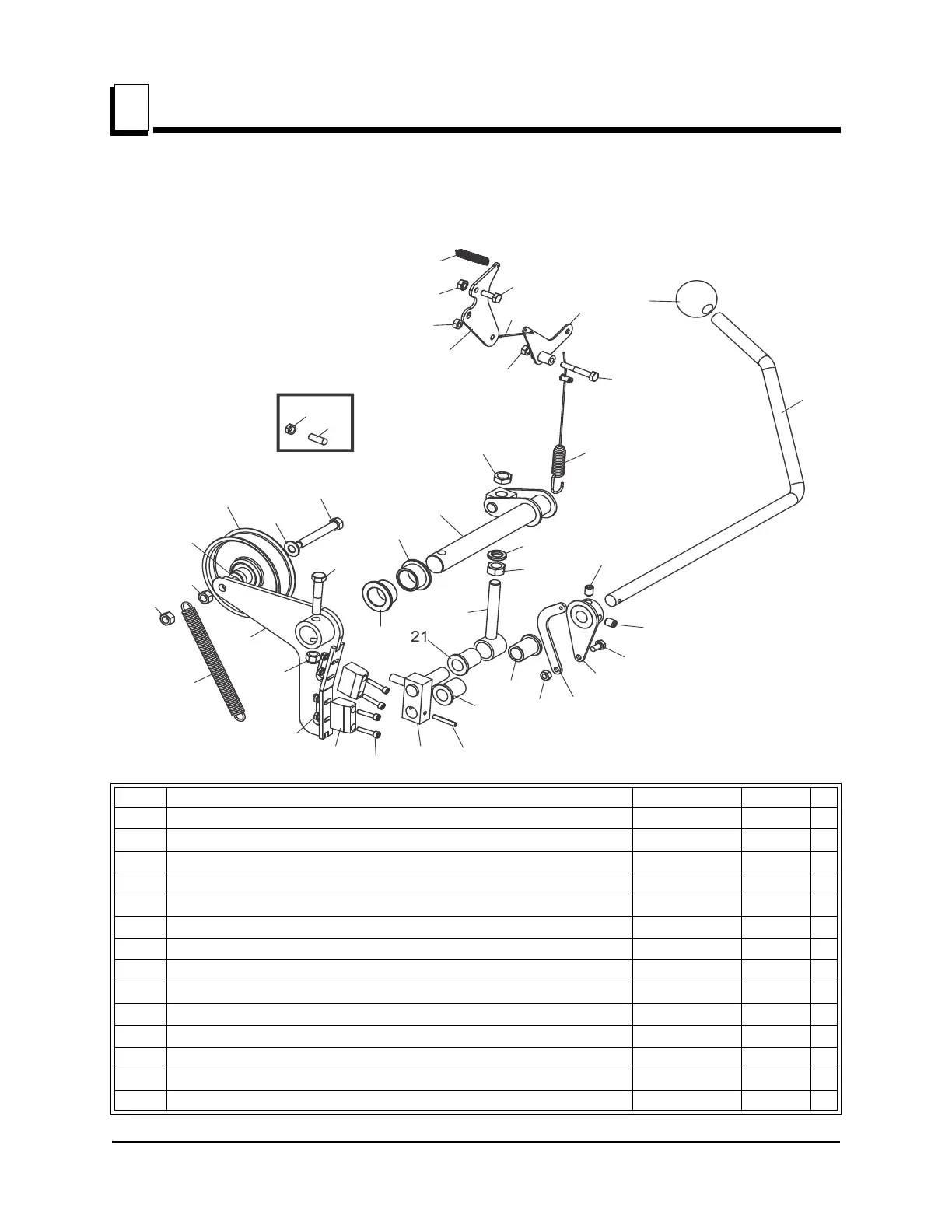

4.4 Throttle/Clutch Assembly
LT15 G13/G15 Rev. E1.00+
REF DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY.
1 PLATE, THROTTLE CABLE BRACKET LT15G 034616 1
2 SCREW, 1/4-20 X 3/4 FT HEX HEAD F05005-1 1
3 NUT, 1/4-20 NYLON LOCK F05010-69 1
4 SPRING, EXTENSION 3/8 X 3 014818 1
5 PIVOT WELDMENT, THROTTLE LT15G 034805 1
6 BOLT, 1/4-20 X 2 HEX HEAD GR5 F05005-125 1
7 NUT, 1/4-20 SWAGED F05010-21 2
8 LINK, THROTTLE 2 13/16 015446 1
9 CABLE ASSEMBLY, LT15G15 THROTTLE 034838 1
10 KNOB, 5/8-11 BALL P04211 1
11 HANDLE, LT15 CLUTCH 016487 1
12 SCREW, 3/8-16 X 1/2 SOCKET HEAD CUP PT SET F05007-12 2
13 ACTUATOR WELDMENT, THROTTLE LT15D&G 034815 1
14 LINKAGE, THROTTLE LT15D&G 034818 1
