Engine G15 - Throttle;Clutch Assembly (Rev. D3.00)

Replacement Parts
Throttle/Clutch Assembly
4
4-11 G1597doc091819 Replacement Parts
G15

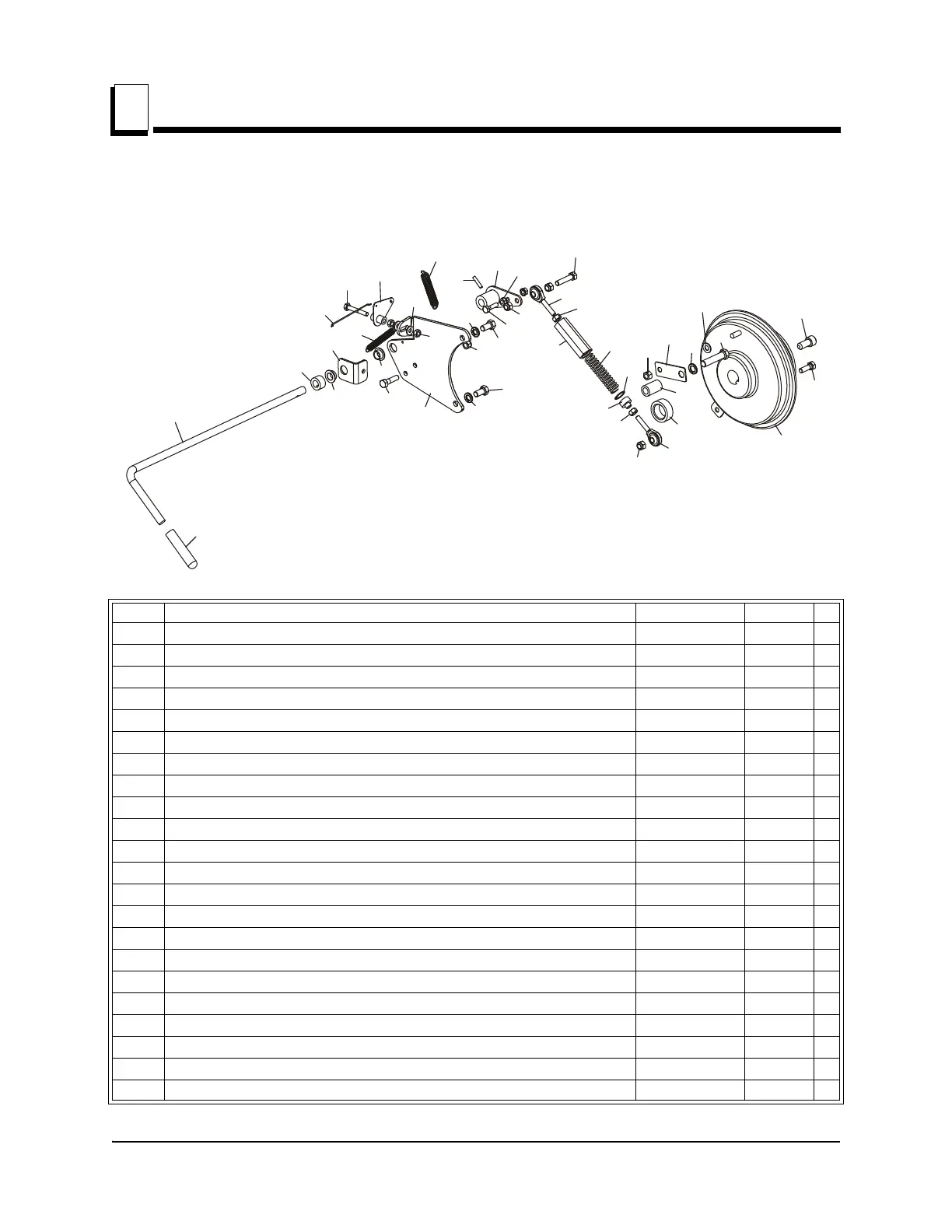

4.6 Throttle/Clutch Assembly
LT15 Rev. D3.00
REF DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY.
1 HANDLE, THROTTLE/CLUTCH 014825 1
2 GRIP, 1/2” I.D. X 3” LONG HANDLE 014835 1
3 COLLAR, 1/2” I.D. X 7/8” O.D. LOCK 014820 1
4 BUSHING, SF1260-6 BRONZE P08060 2
5 BRACKET, THROTTLE/CLUTCH HANDLE MOUNT 014821 1
6 BRACKET, THROTTLE/CLUTCH HANDLE PIVOT 014837 1
7 PIN, 3/16” X 5/8” ROLL F05012-22 1
8 PLATE, THROTTLE MOUNT 014813 1
9 BOLT, 5/16-18 X 1 1/4” HEX HEAD FULL THREAD F05006-18 1
10 NUT, 5/16-18 HEX NYLON LOCK F05010-58 4
11 WASHER, 3/8” SPLIT LOCK F05011-4 2
12 BOLT, 3/8-16 X 3/4” HEX HEAD GRADE 2 F05007-27 2
13 SPRING, 1/2” X 2 1/4” X .06” EXTENSION 014817 1
14 BRACKET WELDMENT, THROTTLE PIVOT 014836 1
15 NUT, 1/4-20 HEX LOCK F05010-21 2
16 WASHER, 1/4” SAE FLAT F05011-11 2
17 SPRING, 3/8” X 3” EXTENSION 014818 1
18 WIRE, THROTTLE 014826 1
19 BOLT, 1/4-20 X 1 3/4” HEX HEAD GRADE 2 F05005-4 1
20 BOLT, 1/4-20 X 1” HEX HEAD GRADE 2 F05005-38 1
21 NUT, 1/4-20 SELF-LOCKING HEX F05010-9 2
22 BOLT, 5/16-18 X 1 1/2” HEX HEAD GRADE 5 FULL THREAD F05006-76 1
25
26
27
28
