Engl Fireball 100 - Remote Control Options; Two-Way Footswitch Operation; MIDI Switcher Functionality; Wiring Principal Connectors

WRITE
MIDI
CHANNEL
SWITCH
LOOP 1
S
WITCH
LOOP 2
S
WITCH
LOOP 3
S
WITCH
LOOP 4
S
WITCH
LOOP 5
S
WITCH
LOOP 6
MIDI SWITCHER
or
1. 2.
ON/OFF ON/OFF
Tube A
mplifier
ON/OFF ON/OFF
Tube A
mplifier
Wiring of Principal Connectors
Stereo
1/4" jack
Footswitch (20, 21)
tip: refer to *3
ring: refer to *2
sleeve: Ground, GND
Use a stereo
plug only!
Stereo
1/4" plug
ring *2
tip *3
sleeve
*2: A switch connected to this terminal controls
FX Loop - off (bypassed) <--> on (enabled) via jack (20);
Master A/B - Master A <--> Master B via jack (21);
*3: A switch connected to this terminal controls
Mid Boost - passive <--> active via jack (20);
Channel switching - Clean <--> Lead via jack (21);

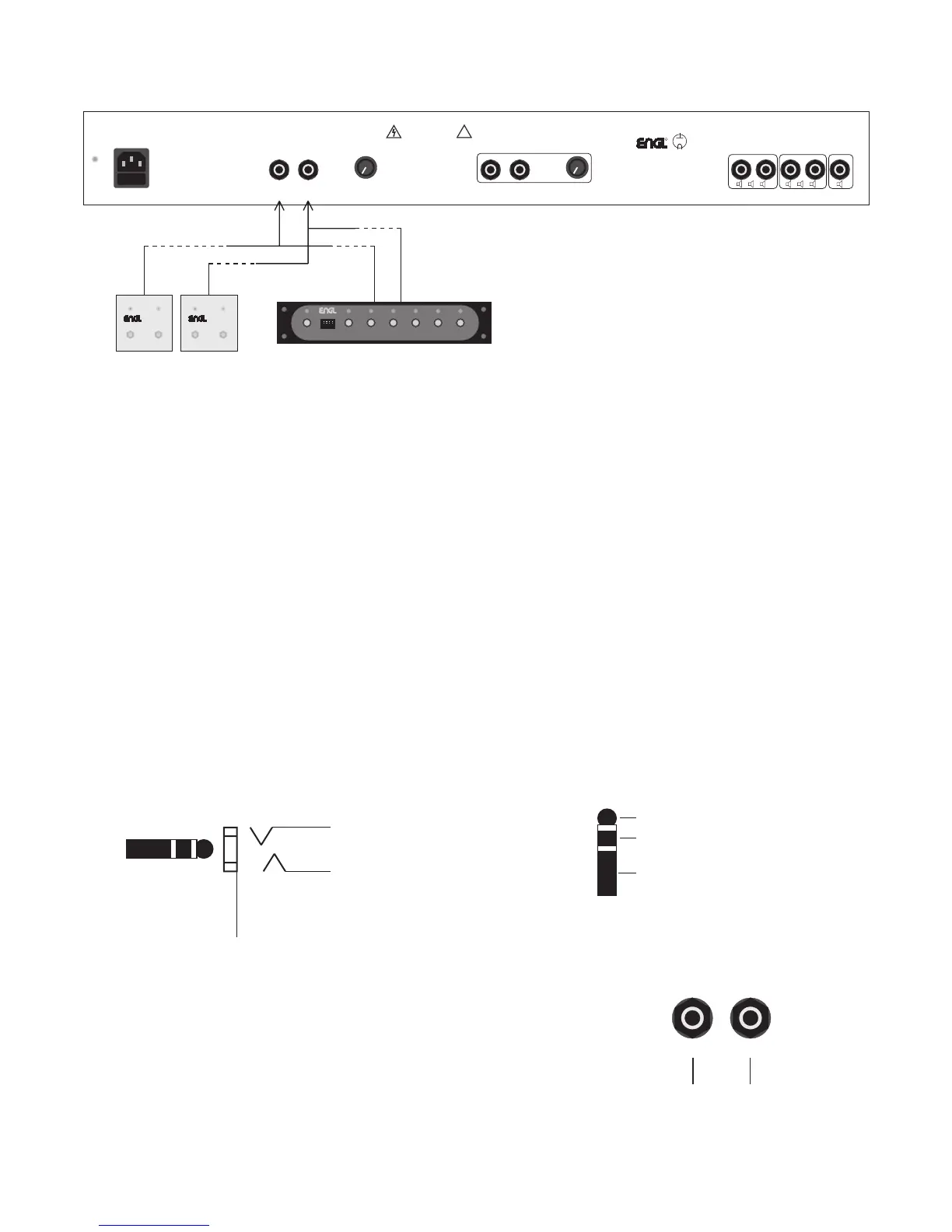

The different options for controlling the Fireball 100 amp remotely:
20
21
Footswitch
Clean / Lead
Master A/B
Mid Boost
FX Loop off/on
R
REPLACE FUSE
ONLY WITH SAME TYPE
AND RATING !
DO NOT OPEN !
RISK OF ELECTRIC SHOCK !
DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE !
CAUTION !
!
FX Loop
Send Return Balance
Dry Effect
100 W All-tube Guitar Amp Head
Fireball 100
T YPE E635
designed by Horst Langer
MADE IN GERMANY
Poweramp Output
4 8
Or
8
And Or->
8 16
Or
16
And
8 Ohms Parallel
1 x 8 Ohms
2 x 16 Ohms
4 Ohms Parallel
1 x 4 Ohms
2 x 8 Ohms
16
16 Ohms
Threshold
Off-Lo Hi
Noise Gate
Lead Channel
Footswitch
Clean/Lead
Master A/B
Mid Boost
FX Loop off/on
Amp
Tube
Or->
1. Two-way footswitch (e.g. ENGL Z-4): Connect it to the amp via a stereo ¼" cord. You
will need one two-way footswitch for switching channels via Jack 21 and Master A/B
another footswitch for switching Mid Boost and FX Loop off/on via Jack 20.
2. MIDI-Switcher (e.g. ENGL Z-11): Connect the unit to the amp via two stereo ¼" cords.
The buttons on the Switcher controls Clean/Lead, Master A/B, Mid Boost and FX Loop
off/on.
If you program the diverse switching configurations to different MIDI program locations
(e.g. MIDI Preset #1: Clean channel & Master A & Mid Boost passive & FX Loop on;
MIDI Preset #2: Lead channel & Master B & Mid Boost acive & FX Loop on, etc.)
you can activate the desired configuration directly via a MIDI board (e.g. ENGL Z-9, Z-12
or Z-15). This type of control option is extremely versatile, we recommend it highly if you
intend to use the amp in conjunction with a MIDI system (e.g. MIDI effects devices).
